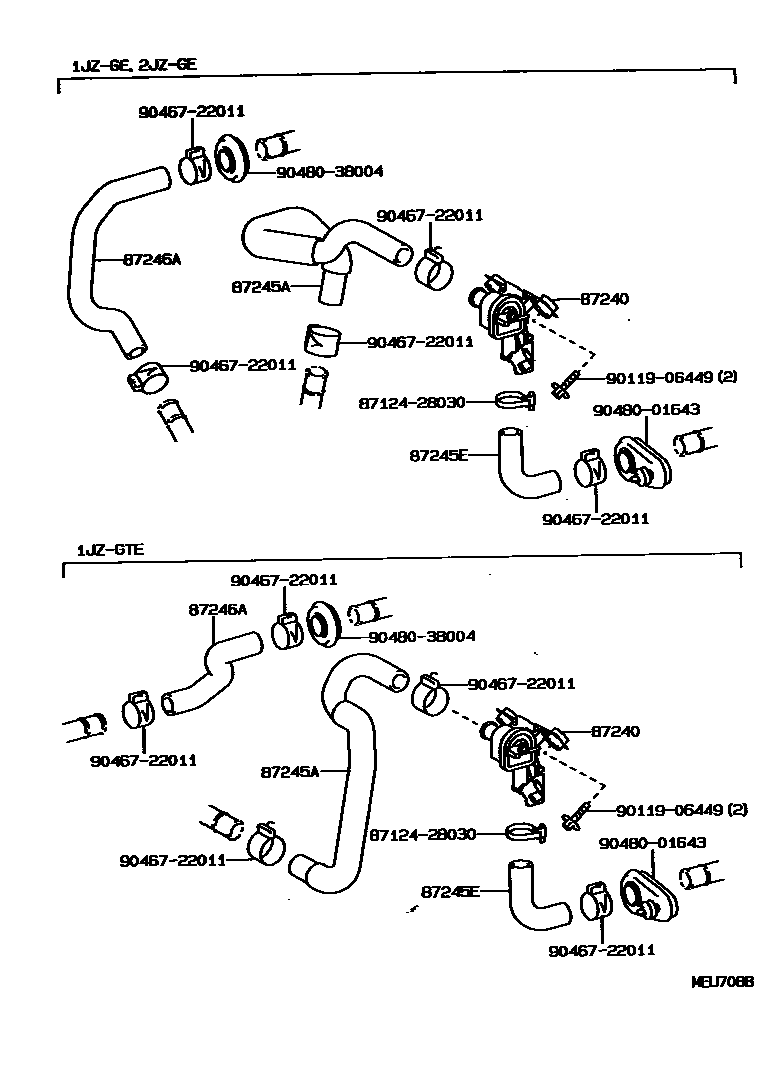

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

87240VALVE ASSY, HEATER WATER

main87240-22360iGX90,JZX9#,LX90,SX90199210-199609

sub87240-22370

87245AHOSE, HEATER WATER, INLET A

main87245-2A260iLX90199210-199609

main87245-2A410iJZX9#..SLT,SLTG,TOUS199210-199609

main87245-2A440iJZX90..TOUV199210-199609

main87245-2A460iGX90199210-199609

main87245-2A480iSX90199210-199609

87245EHOSE, HEATER WATER, INLET E

main87245-2A520iGX90,JZX9#,LX90,SX90199210-199609

87246AHOSE, HEATER WATER, OUTLET A

main87245-2A400iLX90199210-199609

main87245-2A420iJZX9#..SLT,SLTG,TOUS199210-199609

main87245-2A450iJZX90..TOUV199210-199609

main87245-2A470iGX90199210-199609

main87245-2A490iSX90199210-199609

8712428030CLAMP, HEATER

main87124-28030

9011906449

main90119-06449

9046722011

main90467-22011

9048001643

main90480-01643

9048038004

main90480-38004

9 parts on this diagram · 3 diagrams in section
