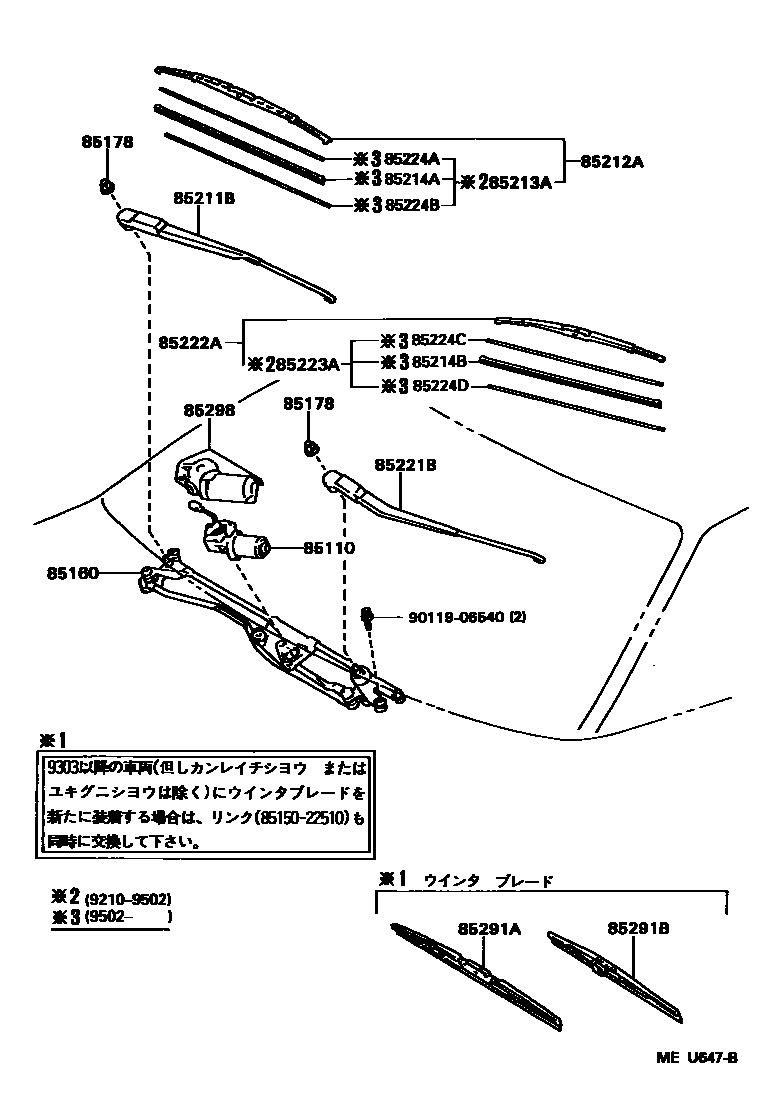

WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
sub90176-08051
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85213ARUBBER, WIPER BLADE, RH
sub85214-33060
85214ARUBBER, WIPER, RH
sub85214-40080
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85223ARUBBER, FRONT WIPER BLADE, LH
sub85214-60020
85224APLATE, WIPER RUBBER BACKING, NO.1
85224BPLATE, WIPER RUBBER BACKING, NO.2
85224CPLATE, WIPER RUBBER BACKING, NO.3
85224DPLATE, WIPER RUBBER BACKING, NO.4
85291ABLADE, FRONT WIPER, WINTER, RH
85291BBLADE, FRONT WIPER, WINTER, LH
sub85291-22080
85298COVER, WIPER MOTOR
9011906540
main90119-06540
19 parts on this diagram · 1 diagram in section
