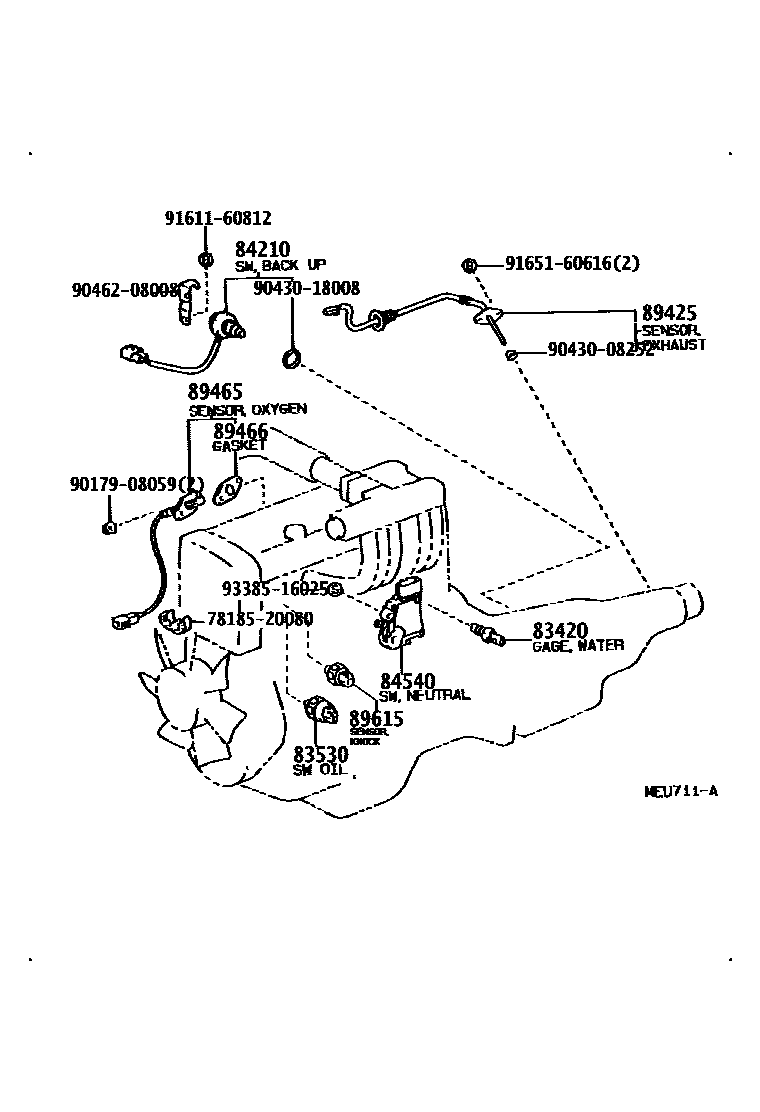

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE & TRANSMISSION 0006 1ENGINE ROOM 0007 1INSTRUMENT PANEL & DOOR SWITC0008 1COWL 0009 1COMBINATION SWITCH 0010 1ROOF,DOOR,SEAT,FLOOR & LUGGAG

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iGX90,JZX9#,LX90199506-199609

main83420-16040iGX90,JZX9#,LX90199210-199506

main83420-16040iGX90,JZX9#,LX90199409-199506

main83420-16050iSX90199210-199409

sub83420-20040

main83420-20030iGX90,JZX9#,LX90199210-199409

sub83420-16040

main83420-20040iSX90199409-199609

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iGX90,JZX9#,SX90199210-199409

sub83530-30090

main83530-30060iLX90199210-199609

sub83530-60030

main83530-30090iGX90,JZX9#,SX90199210-199609

sub83530-60020

main83530-30090iGX90,JZX9#,SX90199409-199609

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-30060iGX90,LX90,SX90..MTM199210-199609

main84210-35030iJZX90..MTM199210-199609

84540SWITCH ASSY, NEUTRAL START

main84540-30270iJZX9#..ATM199210-199409

main84540-30270iJZX9#..ATM199409-199609

main84540-30280iJZX9#..ATM199210-199409

MATUSHITA

sub84540-30270

main84540-30290iGX90,LX90,SX90..ATM199210-199609

main84540-30300iGX90,LX90,SX90..ATM199210-199409

MATUSHITA

main84540-30300iGX90,LX90,SX90..ATM199409-199609

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-29675iJZX91199210-199609

main89425-29685iJZX90..TOUV199210-199609

main89425-29695iGX90,JZX90..SLT,SLTG,TOUS199210-199609

sub89425-39515

main89425-29715iSX90199210-199609

main89425-29875iJZX93199310-199609

sub89425-39525

89465SENSOR, OXYGEN

main89465-22180iSX90199210-199609

main89465-29435iJZX90..TOUV199210-199609

main89465-29635iJZX90,93..SLT,SLTG,TOUS199210-199609

main89465-29645iGX90199210-199609

main89465-39555iJZX91199210-199609

REAR

main89465-39565iJZX91199210-199609

FRONT

89466GASKET, OXYGEN SENSOR

main89466-20020iGX90,JZX90,93199210-199609

89615SENSOR, KNOCK CONTROL

main89615-20030iGX90,SX90199210-199609

sub89615-32040

main89615-22040iJZX9#199210-199609

main89615-33020iGX90,SX90199210-199609

sub89615-32030

7818520080SHAFT, ACCELERATOR PEDAL SUPPORT

main78185-20080

9017908059

main90179-08059

9043008252

main90430-08252

9043018008

main90430-18008

9046208008

main90462-08008

9161160812

main91611-60812

9165160616

main91651-60616

9338516025

main93385-16025

16 parts on this diagram · 10 diagrams in section
