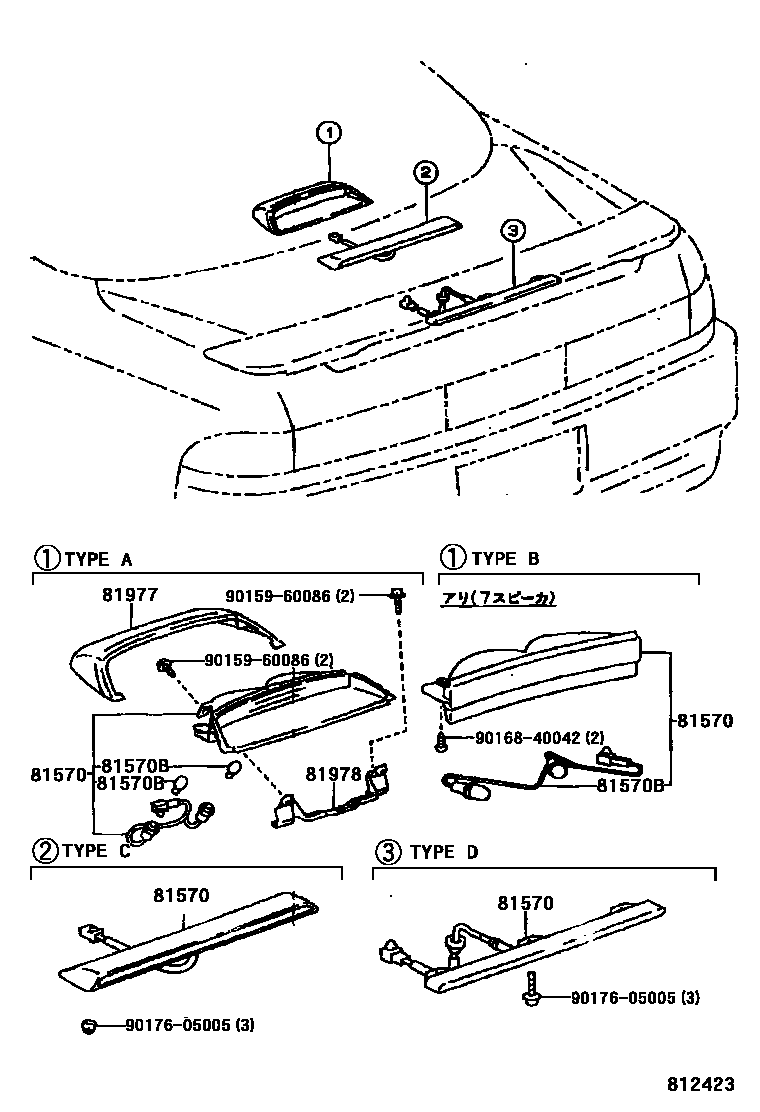

CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-22050-E0iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

TYPE A ,BEIGE,BEIGE,TRIM4#

main81570-22050-G0iGX90,JZX90,93,LX90,SX90..SLT,SLTG,SUF199210-199609

TYPE A ,JADE,JADE,TRIM6#

main81570-22050-G0iJZX90..TOUS,TOUV199310-199609

TYPE A,JADE,TRIM6#

main81570-22050-J0iJZX90..TOUS,TOUV199310-199609

TYPE A,GRAYISH BLUE,TRIM8#

main81570-22050-J0iGX90,JZX90,LX90,SX90..SC,SLT,SLTG,SUF199210-199409

TYPE A ,GRAYISH BLUE,GRAYISH BLUE,TRIM8#

main81570-22060iGX90,JZX90..SLT199210-199609

TYPE B

main81570-22060iJZX90..SLTG199210-199309

TYPE A

main81570-22060iJZX90..SLT;JZX93..SLTG199509-199609

TYPE B;TYPE C

main81570-22060iJZX93..SLTG199409-199509

main81570-22070-A0iJZX90..TOUV199210-199609

TYPE C,SUPER WHITE 2,040

main81570-22070-A1iJZX90..TOUS,TOUV199310-199609

TYPE C,WARM GRAY PM,046

main81570-22070-A1iJZX90..TOUV199409-199609

main81570-22070-A1iJZX9#..SLT,SLTG199210-199412

TYPE C ,WARM GRAY PM,WARM GRAY PM,046

main81570-22070-B0iJZX90..TOUS,TOUV199210-199409

TYPE C,DK.BL.GRAY ME,183

main81570-22070-B1iJZX90..TOUS199409-199609

TYPE C,SILVER ME,199

main81570-22070-B1iJZX90..TOUV199409-199609

main81570-22070-E0iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199210-199609

TYPE C,FLAXEN MM,4M7

main81570-22070-E1iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199409-199609

TYPE C,DK.BROWN MC.,4N2

main81570-22070-G0iJZX90..TOUS,TOUV199210-199409

TYPE C,DK.GRAYISH OLIVE ME,6M7

main81570-22070-G1iJZX90..TOUV199210-199609

TYPE C,DK.GREEN MIO,6N2

main81570-22070-H0iSX90..MTM;GX90,JZX9#,LX90..SLT,SLTG,SUF199310-199509

TYPE C,DK,TURQUOISE,MC,742

main81570-22080iJZX90..TOUS,TOUV199210-199609

TYPE D

81570BBULB (FOR CENTER STOP LAMP)

main90981-11039iGX90,JZX9#,LX90,SX90199210-199609

sub90981-11059

81977COVER, CENTER STOP LAMP

main81977-22030-E0iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

BEIGE,TRIM4#

main81977-22030-G0iGX90,JZX90,93,LX90,SX90..SLT,SLTG,SUF199210-199609

JADE,TRIM6#

main81977-22030-J0iGX90,JZX90,LX90,SX90199210-199609

GRAYISH BLUE,TRIM8#

81978BRACKET, STOP CENTER

main81978-22010iGX90,JZX90,93,LX90,SX90199210-199609

9015960086

main90159-60086

9016840042

main90168-40042

9017605005

main90176-05005

7 parts on this diagram · 1 diagram in section
