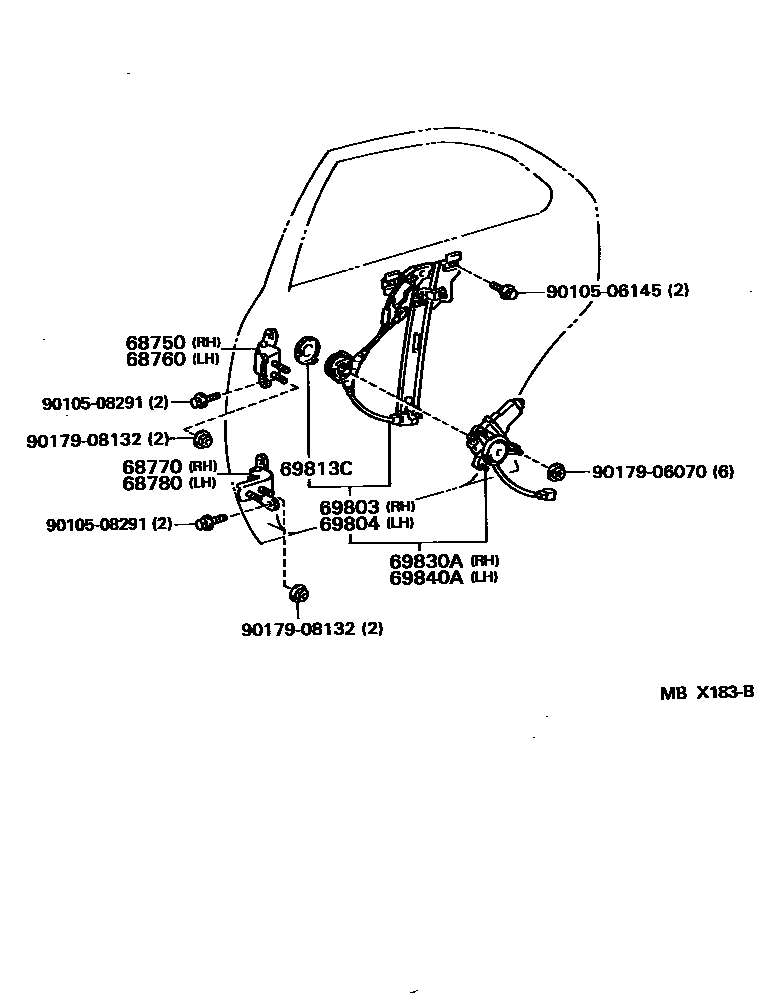

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-22050iGX90,JZX9#,LX90,SX90199210-199609

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-22040iGX90,JZX9#,LX90,SX90199210-199609

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-22020iGX90,JZX9#,LX90,SX90199210-199609

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-22020iGX90,JZX9#,LX90,SX90199210-199609

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-22140iGX90,JZX9#,LX90,SX90199210-199609

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-22140iGX90,JZX9#,LX90,SX90199210-199609

69813CPLATE, REAR DOOR POWER WINDOW REGULATOR BASE

main69811-22120iGX90,JZX9#,LX90,SX90199210-199609

main69812-22030iGX90,JZX9#,LX90,SX90199210-199609

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-22260iGX90,JZX9#,LX90,SX90199210-199609

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-22260iGX90,JZX9#,LX90,SX90199210-199609

9010506145

main90105-06145

9010508291

main90105-08291

9017906070

main90179-06070

9017908132

main90179-08132

13 parts on this diagram · 1 diagram in section
