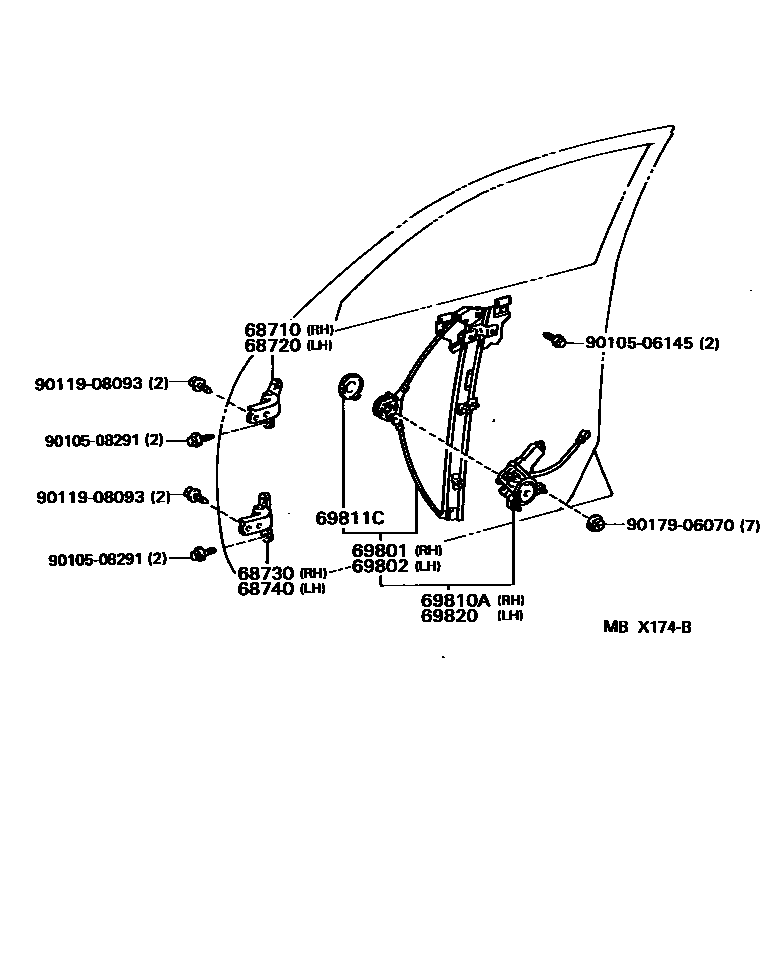

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-22080iGX90,JZX9#,LX90,SX90199210-199609

sub68710-22081

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-22070iGX90,JZX9#,LX90,SX90199210-199609

sub68720-22071

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-22060iGX90,JZX9#,LX90,SX90199210-199609

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-22060iGX90,JZX9#,LX90,SX90199210-199609

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-22130iGX90,JZX9#,LX90,SX90199210-199402

sub69801-22131

main69801-22131iGX90,JZX9#,LX90,SX90199402-199609

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-22130iGX90,JZX9#,LX90,SX90199210-199402

sub69802-22131

main69802-22131iGX90,JZX9#,LX90,SX90199402-199609

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-22280iGX90,JZX9#,LX90,SX90199210-199402

sub69810-22281

main69810-22281iGX90,JZX9#,LX90,SX90199402-199609

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69811-22120iGX90,JZX9#,LX90,SX90199210-199609

main69812-22030iGX90,JZX9#,LX90,SX90199210-199609

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-22270iGX90,JZX9#,LX90,SX90199210-199402

sub69820-22271

main69820-22271iGX90,JZX9#,LX90,SX90199402-199609

9010506145

main90105-06145

9010508291

main90105-08291

9011908093

main90119-08093

9017906070

main90179-06070

13 parts on this diagram · 1 diagram in section
