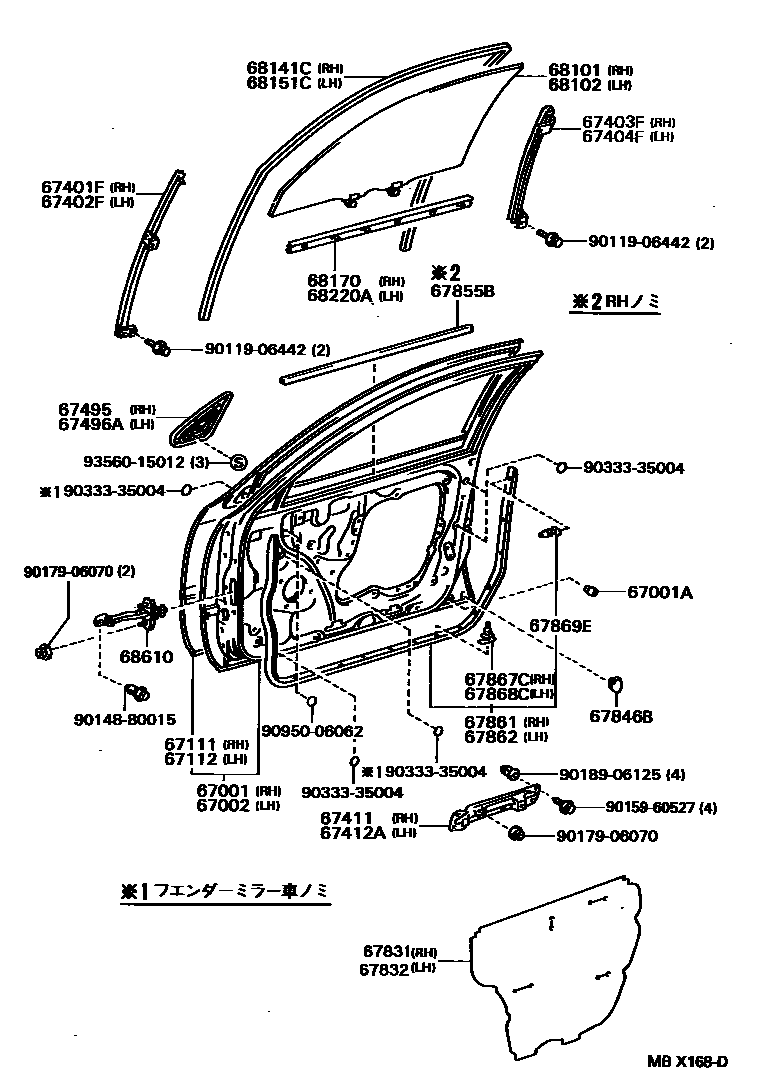

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-22340iGX90,JZX9#,LX90,SX90199502-199609

main67001-22400iGX90,JZX9#,LX90,SX90199210-199311

sub67001-22420

main67001-22420iGX90,JZX9#,LX90,SX90199311-199312

sub67001-22430

main67001-22430iGX90,JZX9#,LX90,SX90199312-199502

sub67001-22340

67001ACUSHION, FRONT DOOR PANEL

main90541-09006iGX90,JZX9#,LX90,SX90199210-199404

main90541-09054iGX90,JZX9#,LX90,SX90199404-199609

sub90541-09006

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-22350iGX90,JZX9#,LX90,SX90199502-199609

main67002-22390iGX90,JZX9#,LX90,SX90199210-199311

sub67002-22410

main67002-22410iGX90,JZX9#,LX90,SX90199311-199312

sub67002-22420

main67002-22420iGX90,JZX9#,LX90,SX90199312-199502

sub67002-22350

67111PANEL, FRONT DOOR, OUTER RH

main67111-22220iGX90,JZX9#,LX90,SX90199210-199311

sub67111-22230

main67111-22230iGX90,JZX9#,LX90,SX90199311-199609

67112PANEL, FRONT DOOR, OUTER LH

main67112-22220iGX90,JZX9#,LX90,SX90199210-199311

sub67112-22230

main67112-22230iGX90,JZX9#,LX90,SX90199311-199609

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-22170iGX90,JZX9#,LX90,SX90199210-199609

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-22170iGX90,JZX9#,LX90,SX90199210-199609

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-22090iGX90,JZX9#,LX90,SX90199210-199609

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-22090iGX90,JZX9#,LX90,SX90199210-199609

67411FRAME, FRONT DOOR WINDOW, FRONT UPPER RH

main67411-22080iGX90,JZX9#,LX90,SX90199210-199609

67412AFRAME, FRONT DOOR WINDOW, FRONT UPPER LH

main67412-22080iGX90,JZX9#,LX90,SX90199210-199609

67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER

main67495-22070iGX90,JZX9#,LX90,SX90199210-199609

67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-22070iGX90,JZX9#,LX90,SX90199210-199609

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-22260iGX90,JZX9#,LX90,SX90199210-199609

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-22150iGX90,JZX9#,LX90,SX90199210-199609

67846BSUB-SHEET, FRONT DOOR SERVICE HOLE

main67845-32010iGX90,JZX9#,LX90,SX90199210-199306

main90950-01832iGX90,JZX9#,LX90,SX90199306-199609

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-22010iGX90,JZX9#,LX90,SX90199303-199609

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-22280iGX90,JZX9#,LX90,SX90199210-199609

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-22280iGX90,JZX9#,LX90,SX90199210-199609

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iGX90,JZX9#,LX90,SX90199502-199609

main67867-20160iGX90,JZX9#,LX90,SX90199210-199502

sub67867-12150

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iGX90,JZX9#,LX90,SX90199502-199609

main67867-20160iGX90,JZX9#,LX90,SX90199210-199502

sub67867-12150

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67869-20040iGX90,JZX9#,LX90,SX90199210-199609

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-22330iGX90,JZX9#,LX90,SX90199210-199609

main68101-22340iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199210-199609

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-22330iGX90,JZX9#,LX90,SX90199210-199609

main68102-22340iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199210-199609

68141CRUN, FRONT DOOR GLASS, RH

main68141-22220iGX90,JZX9#,LX90,SX90199210-199609

68151CRUN, FRONT DOOR GLASS, LH

main68151-22130iGX90,JZX9#,LX90,SX90199210-199609

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-22200iGX90,JZX9#,LX90,SX90199210-199609

68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH

main68220-22140iGX90,JZX9#,LX90,SX90199210-199609

68610CHECK ASSY, FRONT DOOR

main68610-22070iGX90,JZX9#,LX90,SX90199210-199609

main68620-22030iGX90,JZX9#,LX90,SX90199210-199609

9011906442

main90119-06442

9014880015

main90148-80015

9015960527

main90159-60527

9017906070

main90179-06070

9018906125

main90189-06125

9033335004

main90333-35004

9095006062

main90950-06062

9356015012

main93560-15012

37 parts on this diagram · 2 diagrams in section
