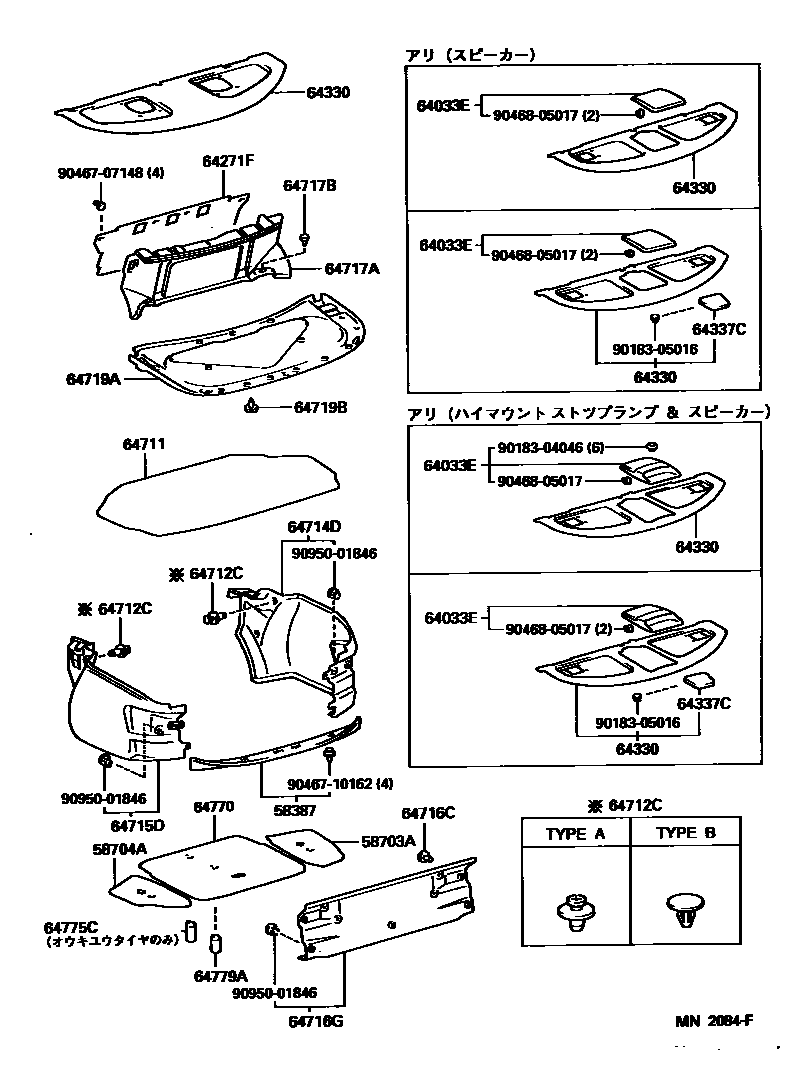

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-22040-C0iJZX93199210-199409

BLACK,TRIM4#,8#

main58387-22040-C0iJZX93199210-199609

BLACK,TRIM4#,6#

main58387-22040-C0iJZX93199210-199409

BLACK,TRIM4#,6#,8#

main58387-22040-C0iLX90,SX90..SC199409-199609

BLACK,TRIM4#

main58387-22040-C0iJZX90..TOUS,TOUV199210-199609

BLACK,TRIM6#,8#

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-22090iGX90,JZX9#,LX90,SX90199210-199409

sub58703-22091

main58703-22091iGX90,JZX9#,LX90,SX90199409-199609

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-22080iGX90,JZX9#,LX90,SX90199210-199609

64033EGRILLE SUB-ASSY, REAR SPEAKER

main64033-22090-E1iJZX90..SLTG199210-199609

main64033-22090-G1iGX90,JZX90..SLT199210-199310

JADE,TRIM6#

main64033-22090-G1iJZX90..TOUS,TOUV199210-199609

main64033-22090-J1iJZX91199210-199609

main64033-22090-J1iJZX90..TOUS,TOUV199210-199310

GRAYISH BLUE,TRIM8#

main64033-22100-E0iGX90,JZX90..SLT199210-199609

BEIGE,TRIM4#

main64033-22100-G0iJZX90..TOUS,TOUV199210-199609

JADE,TRIM6#

main64033-22100-G0iJZX90..TOUV199409-199609

main64033-22100-J0iJZX90..SLT,SLTG199210-199409

GRAYISH BLUE,TRIM8#

main64033-22100-J0iJZX90..TOUV199409-199609

64271FTRIM, ROOM PARTITION

main64271-22130iGX90,JZX9#,LX90,SX90199210-199609

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-2A200-G0iJZX90..TOUS,TOUV199210-199609

JADE,TRIM6#

sub64330-2A200

main64330-2A200-J0iJZX90..TOUS,TOUV199210-199609

GRAYISH BLUE,TRIM8#

sub64330-2A200

main64330-2A210-E0iGX90,JZX90,93,LX90,SX90..SLT,SLTG,SUF199210-199609

sub64330-2A210

main64330-2A210-G0iGX90,JZX90,93,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199210-199609

sub64330-2A210

main64330-2A210-J0iJZX90..TOUS,TOUV199210-199609

sub64330-2A210

main64330-2A220-E0iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

BEIGE,TRIM4#

sub64330-2A220

main64330-2A220-G0iGX90,JZX90,93,LX90,SX90..SLT,SLTG,SUF199210-199609

JADE,TRIM6#

sub64330-2A220

main64330-2A220-G0iJZX90..TOUS,TOUV199310-199609

sub64330-2A220

main64330-2A220-J0iJZX90..TOUS,TOUV199310-199609

sub64330-2A220

main64330-2A220-J0iGX90,JZX90,LX90,SX90..SC,SLT,SLTG,SUF199210-199409

GRAYISH BLUE,TRIM8#

sub64330-2A220

main64330-2A230-G0iJZX90..TOUS,TOUV199210-199609

sub64330-2A230

main64330-2A230-J0iJZX90..TOUV199210-199609

sub64330-2A230

main64330-2A240-E0iJZX93..SLTG199210-199609

sub64330-2A240

main64330-2A240-E0iJZX91199210-199609

sub64330-2A240

main64330-2A240-G0iJZX90..SLT;JZX93..SLTG199210-199609

sub64330-2A240

main64330-2A240-G0iJZX91199210-199609

sub64330-2A240

main64330-2A240-J0iGX90199210-199609

sub64330-2A240

main64330-2A240-J0iJZX91199210-199409

sub64330-2A240

main64330-2A250-E0iGX90,JZX90..SLT199210-199609

sub64330-2A250

main64330-2A250-E0iJZX91199210-199609

BEIGE,TRIM4#

sub64330-2A250

main64330-2A250-G0iJZX90..SLTG199210-199609

sub64330-2A250

main64330-2A250-G0iJZX90..SLT,SLTG199310-199609

sub64330-2A250

main64330-2A250-G0iJZX91199210-199609

JADE,TRIM6#

sub64330-2A250

main64330-2A250-J0iJZX90..SLTG199210-199409

sub64330-2A250

main64330-2A250-J0iJZX91199210-199409

GRAYISH BLUE,TRIM8#

sub64330-2A250

main64330-2A250-J0iJZX90..SLT,SLTG199310-199609

sub64330-2A250

main64330-2A270-E0iJZX9#..SLTG199210-199409

main64330-2A270-G0iJZX90,91..SLT,SLTG199210-199409

main64330-2A270-J0iJZX90,91..SLT,SLTG199210-199409

main64330-2A280-E0iJZX9#..SLTG199210-199409

main64330-2A280-G0iJZX90,91..SLT,SLTG199210-199409

main64330-2A280-J0iJZX9#..SLTG199210-199409

64337CGARNISH, PACKAGE TRAY TRIM

main64337-22040-E0iJZX90,91..SLT,SLTG199210-199409

SABLE,TRIM4#

sub64337-22040

main64337-22040-G0iJZX90,91..SLT,SLTG199210-199409

JADE,TRIM6#

sub64337-22040

main64337-22040-J0iJZX9#..SLTG199210-199409

GRAYISH BLUE,TRIM8#

sub64337-22040

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-22310-C0iGX90,JZX90,91,LX90,SX90..SLT,SLTG,SUF199210-199409

BLACK,TRIM4#,6#,8#

main64711-22310-C0iJZX93199210-199609

BLACK,TRIM4#,6#

main64711-22310-C0iJZX93199210-199409

BLACK,TRIM4#,8#

main64711-22310-C0iJZX90..TOUS,TOUV199210-199609

BLACK,TRIM6#,8#

main64711-22310-C0iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199409-199609

BLACK,TRIM4#

main64711-22320-C0iJZX9#..SLTG199210-199409

main64711-22320-C0iJZX90,91..SLT,SLTG199409-199509

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-07152-C0iJZX93199210-199409

sub90467-07152

main90467-07152-C0iLX90,SX90..SC199210-199609

sub90467-07152

main90467-07152-C0iLX90,SX90..SC199210-199409

sub90467-07152

main90467-07152-C0iJZX90..TOUS,TOUV199210-199609

sub90467-07152

main90467-07152-C0iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199409-199609

sub90467-07152

main90467-10018iGX90,JZX9#,LX90,SX90199210-199609

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-22250-C0iGX90,JZX90,91,LX90,SX90..SLT,SLTG,SUF199210-199609

BLACK,TRIM4#,6#

main64714-22250-C0iJZX93199210-199409

BLACK,TRIM4#,8#

main64714-22250-C0iJZX93199210-199409

BLACK,TRIM4#,6#,8#

main64714-22250-C0iJZX90..TOUS,TOUV199210-199609

BLACK,TRIM6#,8#

main64714-22250-C0iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199409-199609

BLACK,TRIM4#

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-22220-C0iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199210-199609

BLACK,TRIM4#,6#

main64715-22220-C0iJZX93199210-199409

BLACK,TRIM4#,8#

main64715-22220-C0iJZX93199210-199409

BLACK,TRIM4#,6#,8#

main64715-22220-C0iJZX90..TOUS,TOUV199210-199609

BLACK,TRIM6#,8#

main64715-22220-C0iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199409-199609

BLACK,TRIM4#

main64715-22230-C0iJZX90..TOUS,TOUV199509-199609

main64715-22230-C0iGX90,JZX90,91..SLT,SLTG199509-199609

main64715-22230-C0iJZX9#..SLTG199210-199409

main64715-22230-C0iJZX90,91..SLT,SLTG199409-199509

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-07152-C0iJZX90..TOUS,TOUV199210-199609

BLACK,TRIM6#,8#

sub90467-07152

main90467-07152-C0iJZX93199210-199609

BLACK,TRIM4#,6#

sub90467-07152

main90467-07152-C0iJZX93199210-199409

BLACK,TRIM4#,8#

sub90467-07152

main90467-07152-C0iJZX93199210-199409

BLACK,TRIM4#,6#,8#

sub90467-07152

main90467-07152-C0iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199409-199609

BLACK,TRIM4#

sub90467-07152

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-22270-C0iLX90,SX90..SC199210-199609

BLACK,TRIM4#,6#

main64716-22270-C0iLX90,SX90..SC199210-199409

BLACK,TRIM4#,8#

main64716-22270-C0iLX90,SX90..SC199210-199409

BLACK,TRIM4#,6#,8#

main64716-22270-C0iJZX90..TOUS,TOUV199210-199609

BLACK,TRIM6#,8#

main64716-22270-C0iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199409-199609

BLACK,TRIM4#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-22110-C0iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199210-199609

BLACK,TRIM4#,6#

main64717-22110-C0iJZX93199210-199409

BLACK,TRIM4#,8#

main64717-22110-C0iJZX93199210-199409

BLACK,TRIM4#,6#,8#

main64717-22110-C0iJZX90..TOUS,TOUV199210-199609

BLACK,TRIM6#,8#

main64717-22110-C0iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199409-199609

BLACK,TRIM4#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-07152-C0iJZX93199210-199409

BLACK,TRIM4#,8#

sub90467-07152

main90467-07152-C0iJZX93199210-199409

BLACK,TRIM4#,6#,8#

sub90467-07152

main90467-07152-C0iLX90,SX90..SC199210-199609

BLACK,TRIM4#,6#

sub90467-07152

main90467-07152-C0iJZX90..TOUS,TOUV199210-199609

BLACK,TRIM6#,8#

sub90467-07152

main90467-07152-C0iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199409-199609

BLACK,TRIM4#

sub90467-07152

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-22030-C0iLX90,SX90..SC199210-199609

main64719-22030-C0iJZX90,91..SLTG199210-199409

BLACK,TRIM4#,6#,8#

main64719-22030-C0iJZX90,91..SLTG199210-199409

main64719-22030-C0iJZX90,91..SLTG199210-199409

main64719-22030-C0iJZX90..TOUS,TOUV199210-199609

main64719-22030-C0iJZX90,91..SLTG199409-199609

BLACK,TRIM4#,6#

main64719-22030-C0iJZX90,91..SLTG199409-199609

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-07152-C0iGX90,JZX90,LX90,SX90..SLT,SUF199210-199609

BLACK,TRIM4#,6#

sub90467-07152

main90467-07152-C0iJZX93199210-199409

BLACK,TRIM4#,8#

sub90467-07152

main90467-07152-C0iJZX93199210-199409

BLACK,TRIM4#,6#,8#

sub90467-07152

main90467-07152-C0iJZX90..TOUS,TOUV199210-199609

BLACK,TRIM6#,8#

sub90467-07152

main90467-07152-C0iJZX90,91..SLTG199409-199609

BLACK,TRIM4#

sub90467-07152

64770COVER ASSY, SPARE WHEEL

main64770-22160iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199409

sub64770-22161

sub64775-22030

sub64779-22020

main64770-22161iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199409-199609

main64770-22170iGX90,LX90,SX90199210-199409

sub64770-22161

sub64779-22030

main64770-22180iGX90199210-199609

main64770-22180iJZX90..TOUV199210-199609

main64770-22180iGX90..ATM199412-199609

main64770-22180iGX90..ATM199412-199609

64775CSUPPORT, SPARE WHEEL COVER

main64775-22030iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199409-199609

64779ASTOPPER, SPARE WHEEL COVER

main64779-22020iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199409-199609

main64779-22030iGX90,LX90,SX90199409-199609

9018304046

main90183-04046

9018305016

main90183-05016

9046707148

main90467-07148

9046710162

main90467-10162

9046805017

main90468-05017

9095001846

main90950-01846

26 parts on this diagram · 1 diagram in section
