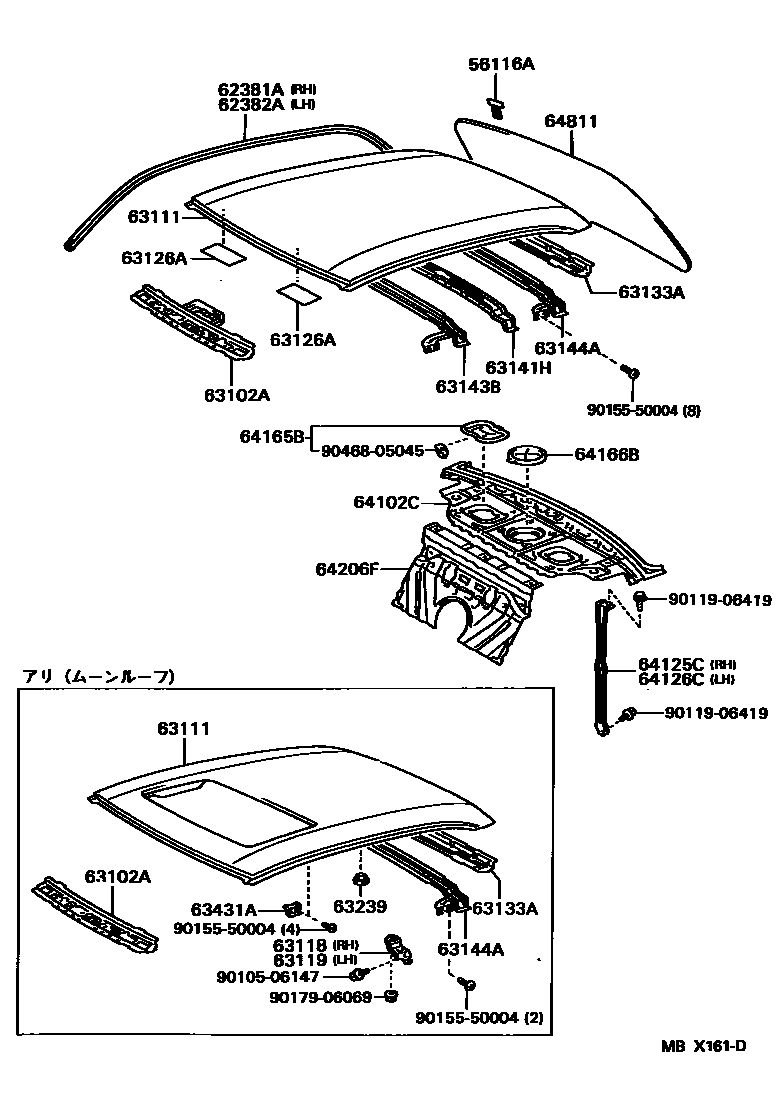

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

56116ASPACER, WINDSHIELD GLASS

main56116-22070iGX90,JZX9#,LX90,SX90199210-199609

62381AWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-22110iGX90,JZX9#,LX90,SX90199210-199609

62382AWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-22110iGX90,JZX9#,LX90,SX90199210-199609

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-22230iGX90,JZX9#,LX90,SX90199210-199609

main63102-22240iJZX9#..SLTG,TOUS,TOUV199210-199609

63111PANEL, ROOF

main63111-22260iGX90,JZX9#,LX90,SX90199210-199609

main63111-22905iJZX9#..SLTG,TOUS,TOUV199210-199609

63118SUPPORT, ROOF PANEL, RH

main63118-22030iJZX9#..SLTG,TOUS,TOUV199210-199609

63119SUPPORT, ROOF PANEL, LH

main63119-22030iJZX9#..SLTG,TOUS,TOUV199210-199609

63126ADAMPER, WINDSHIELD HEADER PANEL

main63126-32010iGX90,JZX9#,LX90,SX90199210-199609

63133AFRAME, BACK WINDOW, UPPER

main63133-22130iGX90,JZX9#,LX90,SX90199210-199609

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-22120iGX90,JZX9#,LX90,SX90199210-199609

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63105-22040iGX90,JZX9#,LX90,SX90199210-199609

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63106-22020iGX90,JZX9#,LX90,SX90199210-199609

main63106-22030iJZX9#..SLTG,TOUS,TOUV199210-199609

63239STOPPER, SLIDING ROOF PANEL

main90480-15026iJZX9#..SLTG,TOUS,TOUV199210-199609

63431ABRACKET, ROOF INNER RACK, NO.1 RH

main63431-22010iJZX9#..SLTG,TOUS,TOUV199210-199609

64102CPANEL SUB-ASSY, UPPER BACK, INNER

main64111-22902iGX90,JZX9#,LX90,SX90199210-199408

sub64111-22906

main64111-22903iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199210-199408

sub64111-22907

main64111-22906iGX90,JZX9#,LX90,SX90199408-199609

sub64111-22907

main64111-22907iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199408-199609

64125CBRACKET, UPPER BACK PANEL, RH

main64125-22050iGX90,JZX9#,LX90,SX90199210-199609

64126CBRACKET, UPPER BACK PANEL, LH

main64125-22050iGX90,JZX9#,LX90,SX90199210-199609

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-22040iGX90,JZX9#,LX90,SX90199210-199609

64166BCOVER, UPPER BACK PANEL HOLE, NO.2

main64166-22060iGX90,JZX90,93,LX90,SX90199210-199609

64206FPANEL SUB-ASSY, ROOM PARTITION

main64206-22010iGX90,JZX9#,LX90,SX90199210-199609

64811GLASS, BACK WINDOW

main64811-0W021iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199407-199609

main64811-22830iGX90,JZX9#,LX90,SX90199407-199408

sub64811-22831

main64811-22831iGX90,JZX9#,LX90,SX90199408-199609

main64811-22919iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199210-199407

main64811-22920iJZX90..SLT199210-199407

main64811-22921iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199210-199407

main64811-22923iJZX90..SLT199210-199407

main64811-2A110iGX90,JZX9#,LX90,SX90199210-199407

main64811-2A130iJZX90..SLT199210-199407

main64811-2A150iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199210-199407

main64811-2A170iJZX90..SLT199210-199407

main64811-2A200iJZX90,91..SLTG199407-199408

sub64811-2A201

main64811-2A201iJZX90..SLT199408-199509

main64811-2A201iGX90,JZX90..SLT,TOUS,TOUV199509-199609

main64811-2A201iGX90,JZX90..SLT,TOUS,TOUV199509-199609

main64811-2A240iJZX90..SLT199407-199408

sub64811-2A241

main64811-2A241iJZX90..SLT199408-199509

main64811-2A241iJZX90,91..SLTG199509-199609

main64811-2A241iJZX90,91..SLTG199509-199609

main64811-2A900iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199407-199609

main64811-2A901iJZX90,91..SLTG199407-199509

main64811-2A901iJZX90,91..SLTG199509-199609

main64811-2A901iJZX90,91..SLTG199509-199609

main64811-2A902iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199407-199609

main64811-2A903iJZX90,91..SLT,SLTG199407-199509

main64811-2A903iJZX90,91..SLTG199509-199609

9010506147

main90105-06147

9011906419

main90119-06419

9015550004

main90155-50004

9017906069

main90179-06069

9046805045

main90468-05045

26 parts on this diagram · 2 diagrams in section
