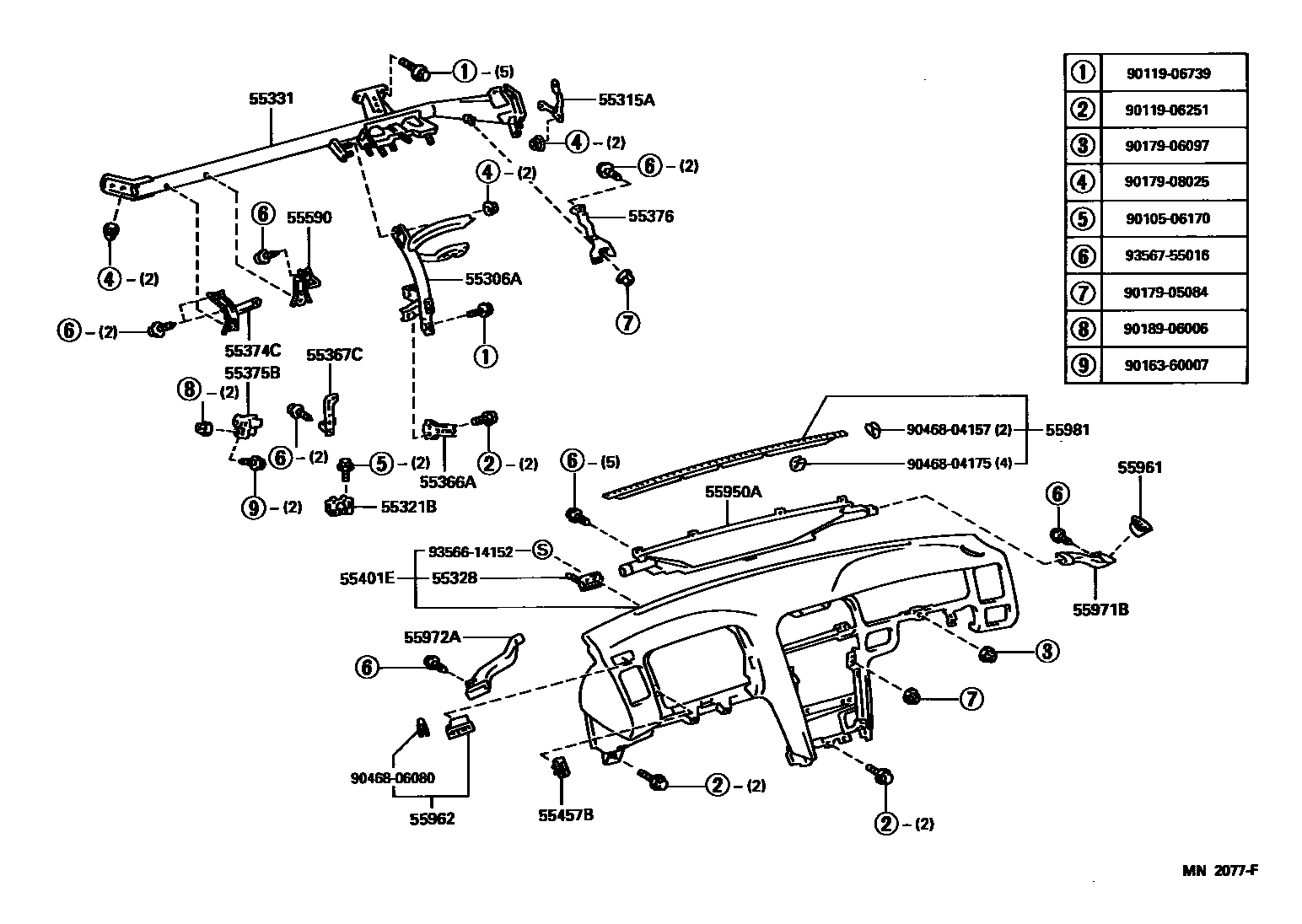

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-22200iGX90,JZX9#,LX90,SX90199210-199609

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-22050iGX90,JZX9#,LX90,SX90199210-199409

main55315-22050iGX90,JZX9#,LX90,SX90199409-199609

T = 0.5

main55315-22060iGX90,JZX9#,LX90,SX90199409-199609

T = 1.0

main55315-22060iGX90,JZX9#,LX90,SX90199210-199409

main55315-22070iGX90,JZX9#,LX90,SX90199210-199409

main55315-22070iGX90,JZX9#,LX90,SX90199409-199609

T = 1.6

main55315-22080iGX90,JZX9#,LX90,SX90199210-199409

main55315-22080iGX90,JZX9#,LX90,SX90199409-199609

T = 2.0

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55321-22090iGX90,JZX90,LX90,SX90..MTM199210-199609

main55321-22100iGX90,JZX9#,LX90,SX90..ATM199210-199609

55328PIN, INSTRUMENT PANEL, NO.1

main55328-22040iGX90,JZX9#,LX90,SX90199210-199609

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-22140iGX90,JZX9#,LX90,SX90199210-199609

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-22090iGX90,JZX9#,LX90,SX90199210-199609

55367CBRACKET, RADIO TUNER MOUNTING, NO.3

main55367-22050iGX90,JZX9#,LX90,SX90199210-199609

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-22081iGX90,JZX9#,LX90,SX90199210-199609

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-22080iGX90,JZX9#,LX90,SX90199210-199609

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-22070iGX90,JZX9#,LX90,SX90199210-199609

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-22260-E0iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

SABLE,TRIM4#

main55401-22260-G0iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199210-199609

JADE,TRIM6#

main55401-22260-J0iJZX90..TOUS,TOUV199210-199609

GRAYISH BLUE,TRIM8#

55457BSPACER, INSTRUMENT PANEL SAFETY PAD

main55457-22040iGX90,JZX9#,LX90,SX90199210-199609

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-22030iGX90,JZX9#,LX90,SX90199210-199609

55950ANOZZLE ASSY, DEFROSTER

main55950-22090iGX90,JZX9#,LX90,SX90199210-199609

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-22080-E0iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

SABLE,TRIM4#

sub55961-22080

main55961-22080-G0iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199210-199609

JADE,TRIM6#

sub55961-22080

main55961-22080-J0iGX90,JZX90,91,LX90,SX90199210-199609

GRAYISH BLUE,TRIM8#

sub55961-22080

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-22080-E0iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

SABLE,TRIM4#

sub55962-22080

main55962-22080-G0iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199210-199609

JADE,TRIM6#

sub55962-22080

main55962-22080-J0iGX90,JZX90,91,LX90,SX90199210-199609

GRAYISH BLUE,TRIM8#

sub55962-22080

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-22060iGX90,JZX9#,LX90,SX90199210-199609

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-22050iGX90,JZX9#,LX90,SX90199210-199609

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-22040-E0iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

SABLE,TRIM4#

sub55981-22040

main55981-22040-G0iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199210-199609

JADE,TRIM6#

sub55981-22040

main55981-22040-J0iGX90,JZX90,91,LX90,SX90199210-199609

GRAYISH BLUE,TRIM8#

sub55981-22040

9010506170

main90105-06170

9011906251

main90119-06251

9011906739

main90119-06739

9016360007

main90163-60007

9017905084

main90179-05084

9017906097

main90179-06097

9017908025

main90179-08025

9018906006

main90189-06006

9046804157

main90468-04157

9046804175

main90468-04175

9046806080

main90468-06080

9356614152

main93566-14152

9356755016

main93567-55016

32 parts on this diagram · 2 diagrams in section
