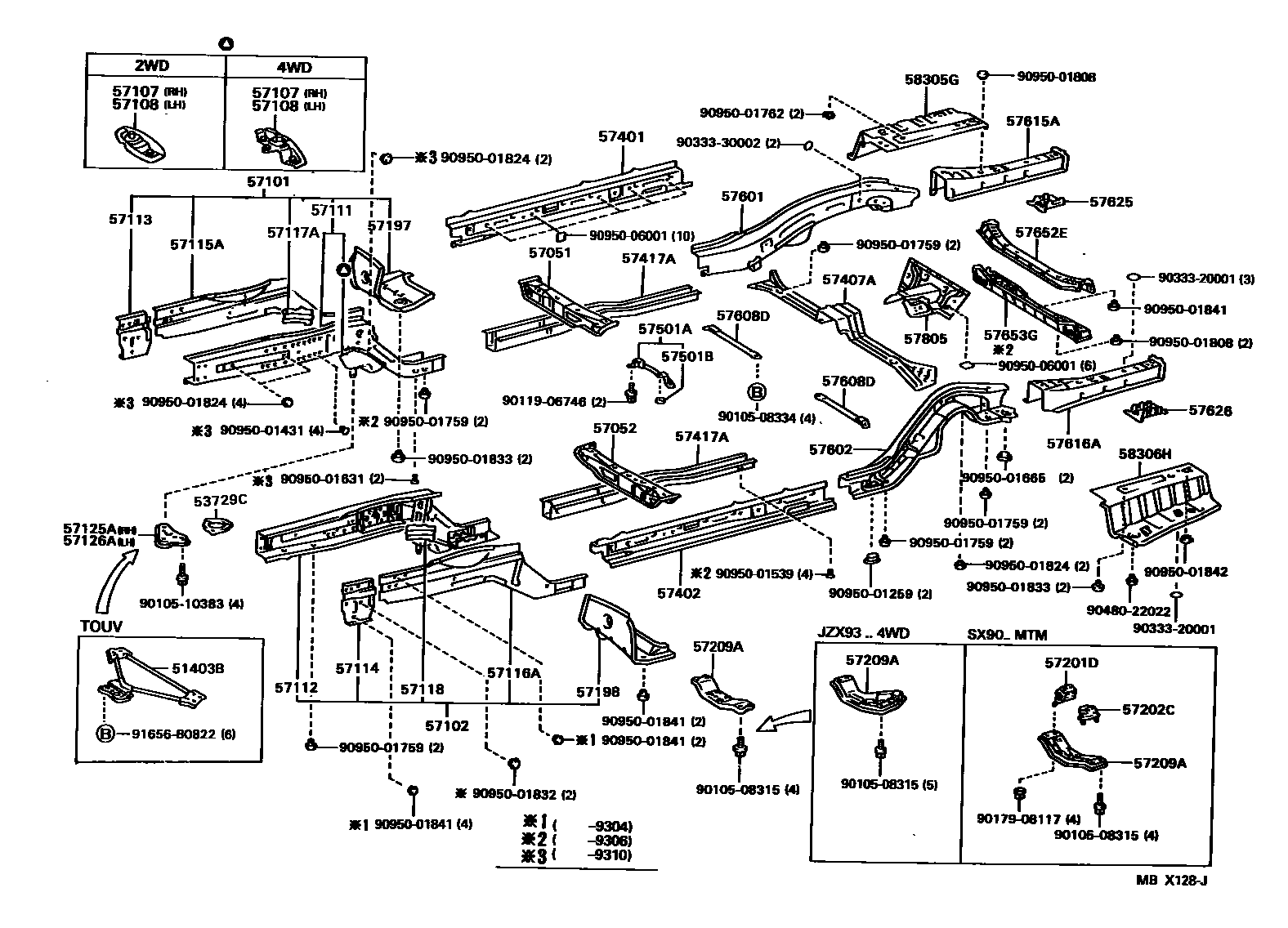

FLOOR SIDE MEMBER

51403BBRACE SUB-ASSY, FRONT SUSPENSION MEMBER

main51403-22030iJZX90..TOUV199210-199609

53729CREINFORCEMENT, FRONT SPRING SUPPORT, NO.3

main53729-22050iJZX93;JZX90..TOUV199210-199609

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-22010iGX90,JZX90,91,LX90,SX90199210-199609

main57051-22020iJZX93199310-199609

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-22010iGX90,JZX90,91,LX90,SX90199210-199609

main57052-22020iJZX93199310-199609

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-22320iGX90,JZX90,91,LX90,SX90199210-199609

main57101-22330iJZX93199310-199609

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-22360iGX90,JZX90,91,LX90,SX90199210-199609

main57102-22370iJZX93199310-199609

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-22110iGX90,JZX90,91,LX90,SX90199210-199609

main57107-22120iJZX93199310-199609

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-22170iGX90,JZX90,91,LX90,SX90199210-199609

main57108-22180iJZX93199310-199609

57111MEMBER, FRONT SIDE, RH

main57027-22010iGX90,JZX90,91,LX90,SX90199210-199609

main57027-22020iJZX93199310-199609

57112MEMBER, FRONT SIDE, LH

main57028-22010iGX90,JZX90,91,LX90,SX90199210-199609

main57028-22020iJZX93199310-199609

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-22080iGX90,JZX9#,LX90,SX90199210-199609

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-22080iGX90,JZX9#,LX90,SX90199210-199609

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-22140iGX90,JZX9#,LX90,SX90199210-199609

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-22140iGX90,JZX9#,LX90,SX90199210-199609

57117AREINFORCEMENT, FRONT BUMPER MOUNTING

main57117-22070iGX90,JZX9#,LX90,SX90199210-199609

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-22050iGX90,JZX9#,LX90,SX90199210-199609

57125APLATE, STRUT BAR BRACKET, RH

main57125-22050iJZX93199310-199609

main57125-22070iGX90,JZX90,91,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main57125-22080iJZX90..TOUV199210-199609

57126APLATE, STRUT BAR BRACKET, LH

main57126-22030iJZX93199310-199609

main57126-22050iGX90,JZX90,91,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main57126-22060iJZX90..TOUV199210-199609

57197BOX, TORQUE, FRONT RH

main57197-22060iGX90,JZX9#,LX90,SX90199210-199609

57198BOX, TORQUE, FRONT LH

main57198-22060iGX90,JZX9#,LX90,SX90199210-199609

57201DDAMPER SUB-ASSY, ENGINE REAR MOUNTING MEMBER, NO.1

main57201-22010iSX90..MTM199210-199609

57202CEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57202-22010iSX90..MTM199210-199609

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57209-22180iJZX93199310-199609

main57209-22190iSX90..MTM199210-199609

main57255-22300iSX90..ATM;GX90,JZX90,91,LX90199210-199609

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-22160iGX90,JZX9#,LX90,SX90199210-199609

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-22160iGX90,JZX9#,LX90,SX90199210-199609

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57461-22070iGX90,JZX9#,LX90,SX90199210-199609

57417AREINFORCEMENT, FRONT FLOOR UNDER

main57417-22060iGX90,JZX9#,LX90,SX90199210-199609

57501ABRACE SUB-ASSY, FRONT FLOOR, CENTER

main57501-22010iGX90,JZX90,91199210-199609

main57501-22080iLX90,SX90199210-199609

57501BWASHER, PLATE(FOR FRONT FLOOR BRACE)

main90201-15031iGX90,JZX90,91,LX90,SX90199210-199609

main90201-15032iGX90,JZX90,91,LX90,SX90199210-199609

main90201-15033iGX90,JZX90,91,LX90,SX90199210-199609

main90201-15034iGX90,JZX90,91,LX90,SX90199210-199609

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57611-22901iGX90,JZX9#,LX90,SX90199210-199609

sub57611-22903

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57612-22901iGX90,JZX9#,LX90,SX90199210-199609

sub57612-22905

57608DBRACE SUB-ASSY, SIDE MEMBER TO FLOOR

main57608-22030iGX90,JZX9#,LX90,SX90199210-199609

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-22130iGX90,JZX9#,LX90,SX90199210-199609

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-22100iGX90,JZX9#,LX90,SX90199210-199609

57625REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH

main57625-22070iGX90,JZX9#,LX90,SX90199210-199609

57626REINFORCEMENT, REAR FLOOR SIDE MEMBER, LH

main57626-22030iGX90,JZX9#,LX90,SX90199210-199609

57652EMEMBER, REAR FLOOR CROSS, NO.1

main57652-22900iGX90,JZX9#,LX90,SX90199210-199609

57653GMEMBER, REAR FLOOR CROSS, NO.2

main57653-22901iGX90,JZX9#,LX90,SX90199210-199609

57805REINFORCEMENT SUB-ASSY, BELT ANCHOR

main57805-22010iGX90,JZX9#,LX90,SX90199210-199603

sub57805-22011

sub58211-22061

main57805-22011iGX90,JZX9#,LX90,SX90199603-199609

58305GEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH

main58305-22060iGX90,JZX9#,LX90,SX90199210-199609

sub58305-22070

58306HEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH

main58314-22110iGX90,JZX9#,LX90,SX90199210-199609

9010508315

main90105-08315

9010508334

main90105-08334

9010510383

main90105-10383

9011906746

main90119-06746

9017908117

main90179-08117

9033320001

main90333-20001

9033330002

main90333-30002

9048022022

main90480-22022

9095001259

main90950-01259

9095001431

main90950-01431

9095001539

main90950-01539

9095001631

main90950-01631

9095001665

main90950-01665

9095001759

main90950-01759

9095001762

main90950-01762

9095001808

main90950-01808

9095001824

main90950-01824

9095001832

main90950-01832

9095001833

main90950-01833

9095001841

main90950-01841

9095001842

main90950-01842

9095006001

main90950-06001

91656B0822

main91656-B0822

64 parts on this diagram · 1 diagram in section
