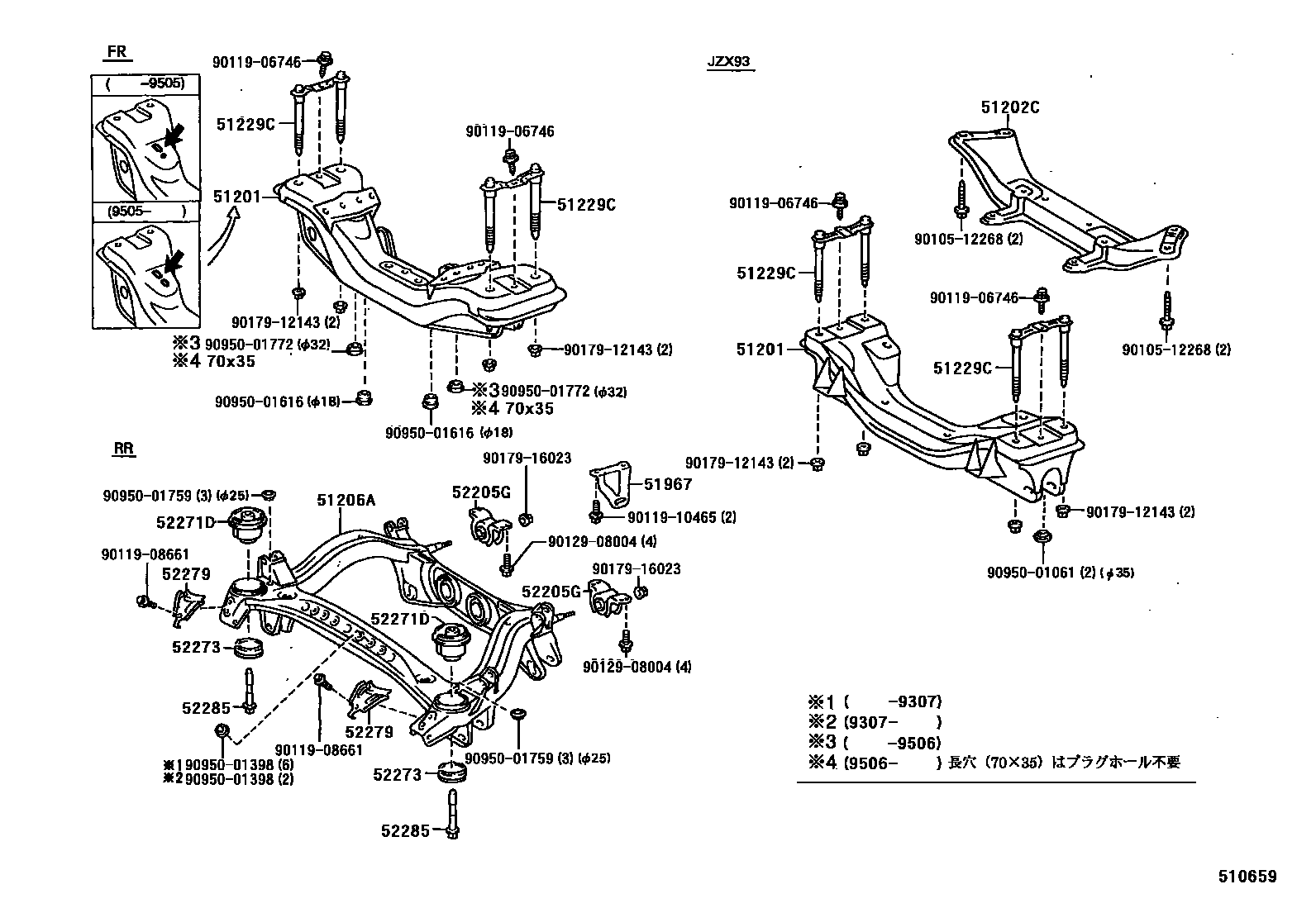

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-22400iGX90,JZX90,91199210-199505

sub51201-22H02

sub51201-22H03

main51201-22410iLX90,SX90199210-199505

sub51201-22411

main51201-22580iJZX93199310-199609

sub51201-22581

main51201-22907iGX90,JZX90,91199505-199609

sub51201-22909

main51201-22908iLX90,SX90199505-199609

sub51201-22910

51202CCROSSMEMBER SUB-ASSY, FRONT SUSPENSION, LOWER

main51202-22010iJZX93199310-199609

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-22130iGX90,JZX90,91..SLT,SLTG,TOUS199210-199609

sub51206-22150

main51206-22140iJZX93;JZX90,LX90,SX90..SC,SUF,TOUV199210-199609

sub51206-22160

sub51992-22030

51229CPLATE, SUSPENSION MEMBER SET

main51229-22060iGX90,JZX90,91,LX90,SX90199210-199609

main51229-22070iJZX93199310-199609

51967HOOK, TRANSPORT, REAR

main51967-22070iGX90,JZX9#,LX90,SX90199210-199609

52205GCUSHION SUB-ASSY, BODY MOUNTING, LOWER

main52205-22030iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

main52205-22040iJZX90..TOUS,TOUV199210-199609

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-22090iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

main52271-22100iJZX90..TOUS,TOUV199210-199609

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-22050iGX90,JZX9#,LX90,SX90199210-199609

52279RETAINER, REAR SUSPENSION MEMBER CUSHION

main52279-22030iGX90,JZX9#,LX90,SX90199210-199609

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-22010iGX90,JZX9#,LX90,SX90199210-199609

9010512268

main90105-12268

9011906746

main90119-06746

9011908661

main90119-08661

9011910465

main90119-10465

9012908004

main90129-08004

9017912143

main90179-12143

9017916023

main90179-16023

9095001061

main90950-01061

9095001398

main90950-01398

9095001616

main90950-01616

9095001759

main90950-01759

9095001772

main90950-01772

22 parts on this diagram · 2 diagrams in section
