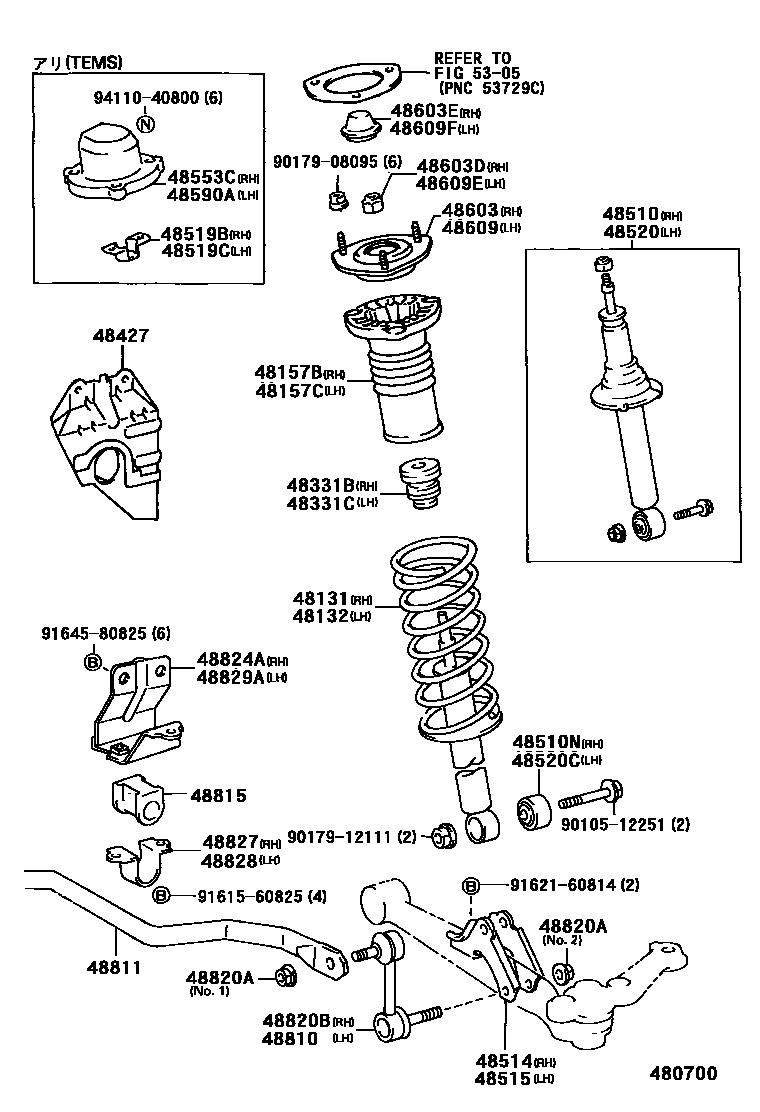

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48131SPRING, FRONT COIL, RH

main48131-2A780iSX90199210-199609

main48131-2A870iGX90199210-199609

main48131-2A880iJZX90..SLT,SLTG199210-199609

main48131-2A890iJZX91199210-199609

main48131-2C010iJZX90..TOUV199210-199609

main48131-2C070iLX90199210-199609

main48131-2C090iJZX90..TOUS199210-199609

main48131-2C120iJZX93199310-199609

sub48131-2C240

48132SPRING, FRONT COIL, LH

main48131-2A780iSX90199210-199609

main48131-2A870iGX90199210-199609

main48131-2A880iJZX90..SLT,SLTG199210-199609

main48131-2A890iJZX91199210-199609

main48131-2C010iJZX90..TOUV199210-199609

main48131-2C070iLX90199210-199609

main48131-2C090iJZX90..TOUS199210-199609

main48131-2C120iJZX93199310-199609

sub48131-2C240

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-22040iGX90,JZX90,91,LX90,SX90199210-199609

main48157-22050iJZX93199310-199609

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-22040iGX90,JZX90,91,LX90,SX90199210-199609

main48157-22050iJZX93199310-199609

48331BBUMPER, FRONT SPRING, RH

main48331-22060iGX90,JZX9#,LX90,SX90199210-199609

sub48331-30110

48331CBUMPER, FRONT SPRING, LH

main48331-22060iGX90,JZX9#,LX90,SX90199210-199609

sub48331-30110

48427

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-29165iGX90,JZX90,LX90..SC,SLT,SUF,TOUS199210-199609

sub48510-29175

main48510-29175iJZX90..SLTG,TOUS199210-199609

sub48510-29176

main48510-29175iJZX90,LX90..ATM..(SC,SLT,SUF)199210-199609

sub48510-29176

main48510-29175iGX90;LX90..MTM199210-199609

sub48510-29176

main48510-29185iJZX90..TOUV199210-199609

main48510-29195iJZX91199210-199409

sub48510-29355

main48510-29205iSX90199210-199609

sub48510-29206

main48510-29215iJZX93199310-199609

main48510-29355iJZX91199409-199609

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main90389-12016iJZX91;GX90,JZX90,LX90,SX90..SC,SLT,SUF,TOUS,TOUV199210-199609

48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH

main48514-22010iGX90,JZX90,91,LX90,SX90199210-199609

main48514-22020iJZX93199310-199609

48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH

main48515-22010iGX90,JZX90,91,LX90,SX90199210-199609

main48515-22020iJZX93199310-199609

48519BBRACKET, ACTUATOR SUPPORT, FRONT RH

main48519-22020iJZX91199210-199609

48519CBRACKET, ACTUATOR SUPPORT, FRONT LH

main48519-22020iJZX91199210-199609

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-29165iGX90,JZX90,LX90..SC,SLT,SUF,TOUS199210-199609

sub48510-29175

main48510-29175iGX90;LX90..MTM199210-199609

sub48510-29176

main48510-29175iJZX90..SLTG,TOUS199210-199609

sub48510-29176

main48510-29175iJZX90..SLTG,TOUS199210-199609

sub48510-29176

main48510-29185iJZX90..TOUV199210-199609

main48510-29195iJZX91199210-199409

sub48510-29355

main48510-29205iSX90199210-199609

sub48510-29206

main48510-29355iJZX91199409-199609

main48520-29055iJZX93199310-199609

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main90389-12016iGX90,JZX90,91,LX90,SX90199210-199609

48553CCAP, FRONT SHOCK ABSORBER, RH

main48553-22060iJZX91199210-199609

48590ACAP ASSY, FRONT SHOCK ABSORBER, LH

main48590-22030iJZX91199210-199609

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48680-22020iGX90,JZX90,91,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

main48680-22030iJZX90..TOUS,TOUV199210-199609

main48680-22040iJZX93199310-199609

LOWER

main48680-22050iJZX93199310-199609

UPPER

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90170-12009iJZX91199210-199609

main90179-12140iGX90,JZX90,93,LX90,SX90199607-199609

main94187-11200iGX90,JZX90,93,LX90,SX90199210-199607

sub90177-12002

48603EPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT RH)

main90950-01659iGX90,JZX90,LX90,SX90199210-199609

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48680-22020iGX90,JZX90,91,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

main48680-22030iJZX90..TOUS,TOUV199210-199609

main48680-22050iJZX93199310-199609

UPPER

main48680-22060iJZX93199310-199609

LOWER

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90170-12009iJZX91199210-199609

main90179-12140iGX90,JZX90,93,LX90,SX90199607-199609

main94187-11200iGX90,JZX90,93,LX90,SX90199210-199607

sub90177-12002

48609FPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT LH)

main90950-01659iGX90,JZX90,LX90,SX90199210-199609

48810LINK ASSY, FRONT STABILIZER, LH

main48810-22040iJZX93199310-199509

sub48810-22041

main48810-22041iJZX93199509-199609

main48820-22040iGX90,JZX90,91,LX90,SX90199210-199509

sub48820-22041

main48820-22041iGX90,JZX90,91,LX90,SX90199509-199609

48811BAR, STABILIZER, FRONT

main48811-22400iGX90,JZX90,91,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main48811-22410iJZX90..TOUV199210-199609

main48811-22530iJZX93199310-199609

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-22070iGX90,JZX9#,LX90,SX90199210-199307

sub48815-22150

main48815-22150iGX90,JZX90,91,LX90,SX90199307-199609

main48815-22180iJZX93199310-199609

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10054iGX90,JZX90,91,LX90,SX90199210-199609

main90179-12047iJZX93199210-199609

main90179-12047iJZX93199210-199609

main90179-12051iJZX93199310-199609

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-22040iGX90,JZX90,91,LX90,SX90199210-199509

sub48820-22041

main48820-22041iGX90,JZX90,91,LX90,SX90199509-199609

main48820-22050iJZX93199310-199509

sub48820-22051

main48820-22051iJZX93199509-199609

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-22010iGX90,JZX90,91,LX90,SX90199210-199508

sub48809-30020

main48809-30020iGX90,JZX90,91,LX90,SX90199508-199609

sub48809-30021

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48824-22060iGX90,JZX9#,LX90,SX90199210-199609

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48824-22060iGX90,JZX9#,LX90,SX90199210-199609

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48809-22020iGX90,JZX90,91,LX90,SX90199210-199508

sub48809-30030

main48809-30030iGX90,JZX90,91,LX90,SX90199508-199609

sub48809-30031

5305

9010512251

main90105-12251

9017908095

main90179-08095

9017912111

main90179-12111

9161560825

main91615-60825

9162160814

main91621-60814

9164580825

main91645-80825

9411040800

main94110-40800

40 parts on this diagram · 2 diagrams in section
