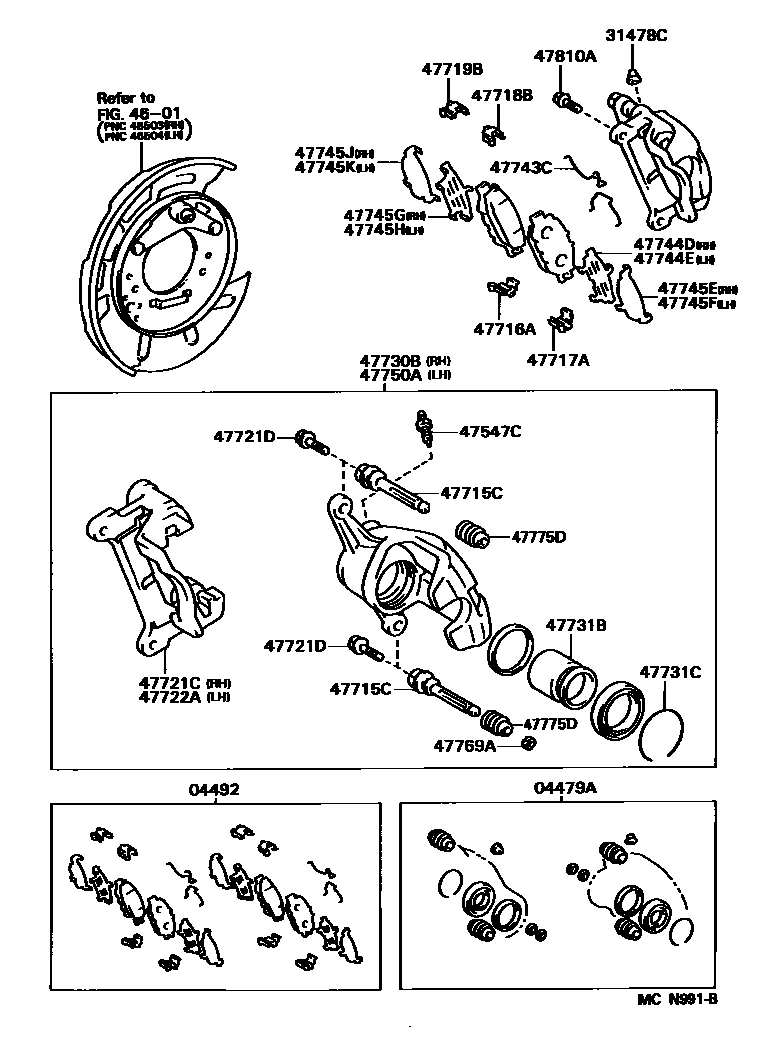

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-22070iJZX90..TOUV199210-199609

main04479-22080iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main04479-30180iJZX9#..SLT,SLTG,TOUS199509-199609

04492PAD KIT, DISC BRAKE, REAR

main04492-22150iJZX90..TOUV199210-199505

sub04466-22060

main04492-22160iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199505

sub04466-22060

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGX90,JZX9#,LX90,SX90199210-199609

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030iJZX9#..SLT,SLTG,TOUS199509-199609

main47547-35020iGX90,JZX9#,LX90,SX90199210-199609

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-22060iGX90,JZX9#,LX90,SX90199210-199511

sub47715-30050

main47715-22070iJZX9#..SLT,SLTG,TOUS199509-199609

SUB PIN SIDE

main47715-22080iJZX9#..SLT,SLTG,TOUS199509-199609

MAIN PIN SIDE

main47715-30050iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199508-199609

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-22040iJZX90..TOUV199210-199511

main47716-30180iJZX9#..SLT,SLTG,TOUS199509-199609

main47716-30230iGX90,LX90,SX90199508-199609

sub47716-22040

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47716-30190iJZX9#..SLT,SLTG,TOUS199509-199609

main47717-22030iGX90,JZX9#,LX90,SX90199210-199511

main47717-30120iJZX90..TOUV;GX90,LX90,SX90199508-199609

sub47717-22030

47718BPLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE)

main47717-30090iJZX9#..SLT,SLTG,TOUS199509-199609

main47718-22020iGX90,JZX9#,LX90,SX90199210-199511

main47718-30020iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199508-199609

sub47718-22020

47719BPLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE)

main47717-30100iJZX9#..SLT,SLTG,TOUS199509-199609

main47719-22020iGX90,JZX9#,LX90,SX90199210-199511

main47719-30020iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199508-199609

sub47719-22020

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-22170iJZX90..TOUV199210-199609

main47721-22180iJZX9#..SLT,SLTG,TOUS199210-199509

main47721-22190iGX90,LX90,SX90199210-199609

main47721-30170iJZX9#..SLT,SLTG,TOUS199509-199609

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164iJZX9#..SLT,SLTG,TOUS199509-199609

main90105-08304iGX90,JZX9#,LX90,SX90199210-199609

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-22130iJZX90..TOUV199210-199609

main47722-22140iJZX9#..SLT,SLTG,TOUS199210-199509

main47722-22150iGX90,LX90,SX90199210-199609

main47722-30090iJZX9#..SLT,SLTG,TOUS199509-199609

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-22280iJZX90..TOUV199210-199609

main47730-22290iJZX9#..SLT,SLTG,TOUS199210-199509

main47730-22300iGX90,LX90,SX90199210-199609

main47730-30350iJZX9#..SLT,SLTG,TOUS199509-199609

47731BPISTON, REAR DISC BRAKE

main47731-22050iJZX90..TOUV199210-199609

main47731-22060iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main47731-30120iJZX9#..SLT,SLTG,TOUS199509-199609

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-47010iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199508-199609

main90520-52004iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199508

sub90520-47010

main90520-52006iJZX9#..SLT,SLTG,TOUS199509-199609

main90520-60003iJZX90..TOUV199210-199609

47743CSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47743-22060iJZX90..TOUV199210-199609

main47743-22070iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main47743-30040iJZX9#..SLT,SLTG,TOUS199509-199609

47744DSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE RH)

main47744-22130iGX90,JZX9#,LX90,SX90199210-199609

47744ESHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE LH)

main47744-22130iGX90,JZX9#,LX90,SX90199210-199609

47745ESHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE RH)

main47745-22080iGX90,JZX9#,LX90,SX90199210-199609

47745FSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE LH)

main47745-22080iJZX90..TOUV;GX90,LX90,SX90199210-199609

47745GSHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE RH)

main47744-22140iGX90,JZX9#,LX90,SX90199210-199609

47745HSHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE LH)

main47744-22140iGX90,JZX9#,LX90,SX90199210-199609

47745JSHIM, ANTI-SQUEAL, NO.4(FOR REAR DISC BRAKE RH)

main47745-22090iGX90,JZX9#,LX90,SX90199210-199609

47745KSHIM, ANTI-SQUEAL, NO.4(FOR REAR DISC BRAKE LH)

main47745-22090iJZX90..TOUV;GX90,LX90,SX90199210-199609

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-22280iJZX90..TOUV199210-199609

main47750-22290iJZX9#..SLT,SLTG,TOUS199210-199509

main47750-22300iGX90,LX90,SX90199210-199609

main47750-30350iJZX9#..SLT,SLTG,TOUS199509-199609

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-22050iGX90,JZX9#,LX90,SX90199210-199609

main47769-50010iJZX9#..SLT,SLTG,TOUS199509-199609

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-22050iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main47775-30070iJZX9#..SLT,SLTG,TOUS199509-199609

sub47775-50010

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10206iGX90,JZX9#,LX90,SX90199210-199609

29 parts on this diagram · 2 diagrams in section
