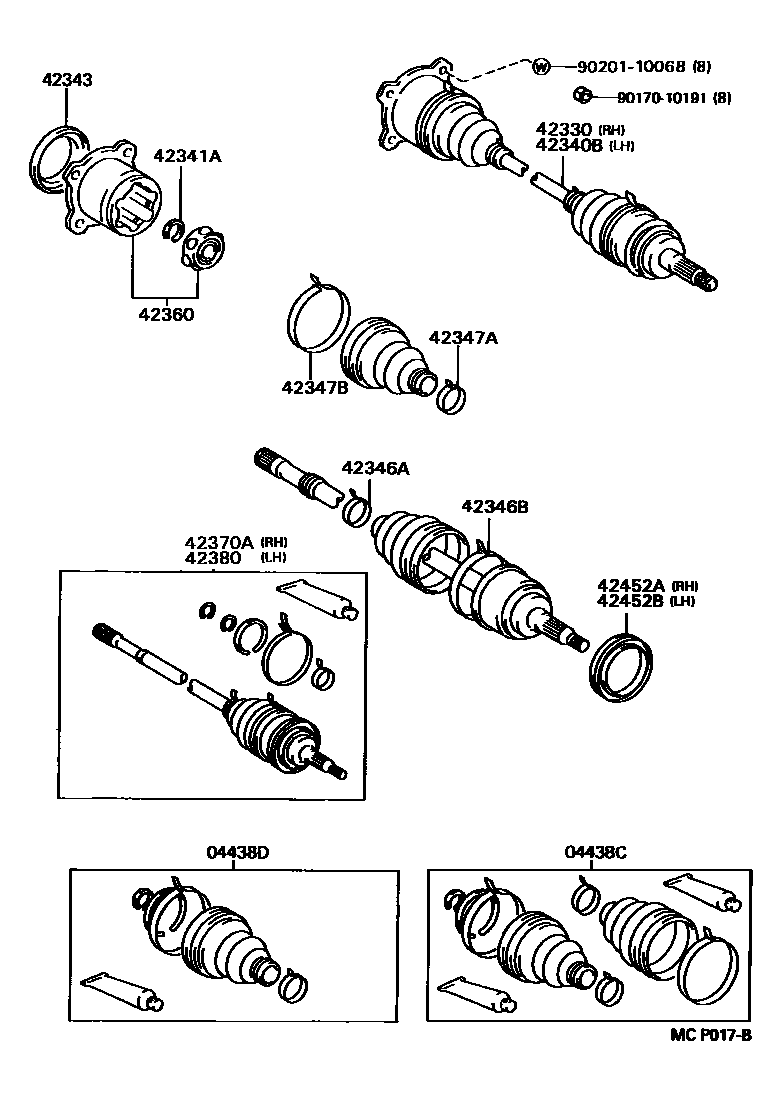

REAR AXLE SHAFT & HUB

0001 1��(ABS) 0002 1��(ABS) 0003 1��(ABS) 0004 1��(ABS) 0005 1

04438CBOOT KIT, REAR DRIVE SHAFT

main04437-17040iJZX90,93..SLT,SLTG,TOUS199210-199609

sub04437-17041

main04437-22120iSX90199210-199609

main04437-24020iJZX91;JZX90..TOUV199210-199308

sub04437-24021

main04437-24021iJZX91;JZX90..TOUV199308-199404

sub04437-24040

main04437-24040iJZX91;JZX90..TOUV199404-199609

sub04437-24041

main04437-28030iGX90,LX90199210-199609

sub04437-28011

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04437-17030iJZX90,93..SLT,SLTG,TOUS199210-199609

sub04438-33011

main04437-22090iSX90199210-199609

main04437-24010iJZX91;JZX90..TOUV199210-199308

TOYODA GOUSEI

sub04437-24011

main04437-24011iJZX91;JZX90..TOUV199308-199404

TOYODA GOUSEI

sub04437-24030

main04437-24030iJZX91;JZX90..TOUV199404-199609

sub04437-24031

main04437-24050iJZX91;JZX90..TOUV199210-199404

main04437-28020iGX90,LX90199210-199609

sub04437-28021

42330SHAFT ASSY, REAR DRIVE, RH

main42330-22020iJZX91;JZX90..TOUV199210-199609

sub42330-22021

main42330-22030iJZX93;JZX90..SLTG199210-199609

main42330-22040iJZX90..SLT,TOUS199210-199609

sub42330-22030

main42330-22050iLX90..ATM199210-199609

main42330-22060iGX90,LX90199210-199609

sub42330-22050

main42330-22070iSX90199210-199609

main42330-22080iSX90199210-199609

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-22100iJZX91;JZX90..TOUV199210-199609

sub42340-22101

main42340-22110iJZX93;JZX90..SLTG199210-199609

main42340-22120iJZX90..SLT,TOUS199210-199609

sub42340-22110

main42340-22130iGX90;LX90..MTM199210-199609

main42340-22140iGX90,LX90199210-199609

sub42340-22130

main42340-22150iSX90199210-199609

main42340-22160iSX90199210-199609

42341ARING, SNAP (FOR REAR DRIVE SHAFT)

main90520-23024iSX90199210-199609

main90520-26028iGX90,LX90199210-199609

42343COVER, OUTBOARD JOINT END

main42343-14010iSX90199210-199609

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-14010iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90949-01837iJZX91;JZX90..TOUV199210-199609

42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-16060iGX90,LX90,SX90199307-199609

main42345-16070iJZX90,93..SLT,SLTG,TOUS199307-199609

main90949-01339iJZX90..SLT,SLTG,TOUS199210-199307

main90949-01473iGX90,LX90,SX90199210-199307

main90949-01838iJZX91;JZX90..TOUV199210-199609

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-14010iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90949-01837iJZX91;JZX90..TOUV199210-199609

42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-14020iSX90199210-199609

main42345-16090iGX90,LX90199307-199609

main42345-16100iJZX90,93..SLT,SLTG,TOUS199307-199609

main42345-30010iGX90,LX90199210-199307

main90949-01340iJZX90..SLT,SLTG,TOUS199210-199307

main90949-01838iJZX91;JZX90..TOUV199210-199609

42360JOINT ASSY, REAR DRIVE SHAFT INBOARD

main42360-22040iSX90199210-199609

main42360-30012iGX90,LX90199210-199609

sub42360-30040

42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

main42370-29145iJZX91;JZX90..TOUV199210-199308

sub42370-29146

main42370-29146iJZX91;JZX90..TOUV199308-199404

sub42370-29615

main42370-29147iJZX91;JZX90..TOUV199404-199609

sub42370-29148

main42370-29155iJZX90..SLT,TOUS199210-199609

sub42370-29156

main42370-29165iJZX90..SLT,TOUS199210-199609

sub42370-29156

main42370-29175iLX90..ATM199210-199609

sub42370-29176

main42370-29185iGX90,LX90199210-199609

sub42370-29186

main42370-29195iSX90199210-199609

sub42370-29665

main42370-29205iSX90199210-199609

sub42370-29655

42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH

main42380-29045iJZX91;JZX90..TOUV199210-199308

sub42380-29046

main42380-29046iJZX91;JZX90..TOUV199308-199404

main42380-29047iJZX91;JZX90..TOUV199404-199609

sub42380-29048

main42380-29055iJZX90..SLT,TOUS199210-199609

sub42380-29056

main42380-29065iJZX90..SLT,TOUS199210-199609

sub42380-29056

main42380-29075iGX90;LX90..MTM199210-199609

sub42380-29076

main42380-29085iGX90,LX90199210-199609

sub42380-29086

main42380-29095iSX90199210-199609

sub42380-29215

main42380-29105iSX90199210-199609

sub42380-29205

42452ADEFLECTER, REAR WHEEL BEARING DUST, NO.2 RH

main42452-22030iJZX90..SLT,TOUS199210-199609

main42452-28020iGX90,LX90,SX90199210-199609

main42453-50010iGX90,SX90;LX90..MTM199210-199609

main42453-50010iJZX90,LX90..ATM..(SC,SLT,SUF,TOUS)199210-199409

main42453-50010iJZX90,LX90..ATM..(SC,SLT,SUF,TOUS)199409-199609

42452BDEFLECTER, REAR WHEEL BEARING DUST, NO.2 LH

main42452-22030iJZX90..SLT,TOUS199210-199609

main42452-28020iGX90,LX90,SX90199210-199609

main42453-50010iGX90,SX90;LX90..MTM199210-199609

main42453-50010iJZX90,LX90..ATM..(SC,SLT,SUF,TOUS)199409-199609

main42453-50010iJZX90,LX90..ATM..(SC,SLT,SUF,TOUS)199210-199409

9017010191

main90170-10191

9020110068

main90201-10068

17 parts on this diagram · 5 diagrams in section
