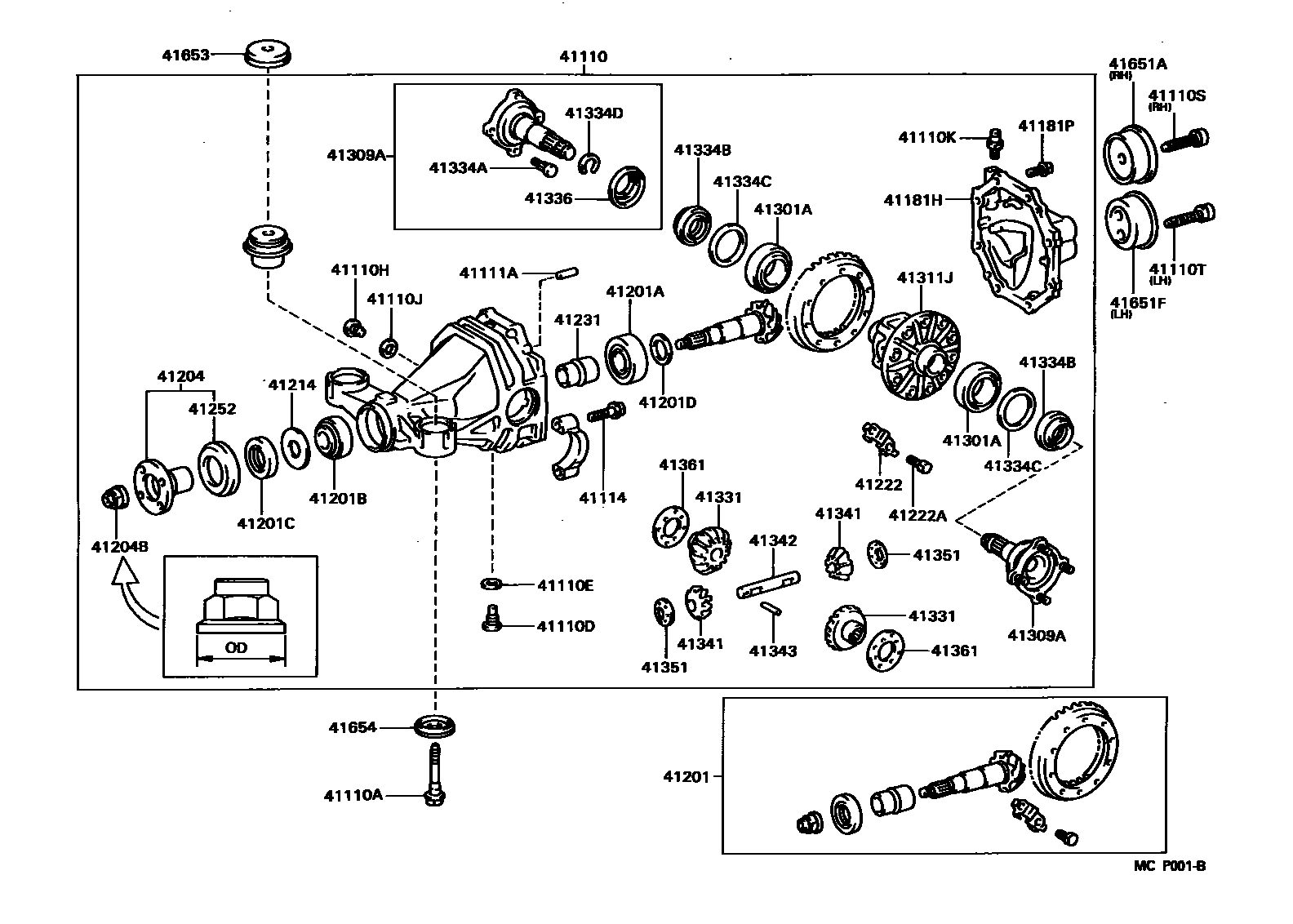

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1������ ����� ���������� 0004 1������ ����� ���������� 0005 1������ ����� ����������

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-22610iSX90..MTM199210-199609

main41110-22620iSX90..MTM199210-199609

main41110-22630iLX90..MTM199210-199509

main41110-22640iLX90..ATM199210-199609

sub41110-22641

main41110-22650iLX90..MTM199509-199609

main41110-22660iGX90199210-199609

sub41110-22661

main41110-22670iSX90..ATM199210-199609

main41110-22680iGX90199210-199609

main41110-22690iSX90..ATM199210-199609

main41110-22700iJZX90..SLT,SLTG,TOUS199210-199609

sub41110-22701

sub90110-10016

main41110-22710iJZX90..MTM199210-199609

sub41110-22711

main41110-22720iJZX91199210-199609

sub41110-22721

sub41653-30060

sub41654-30040

sub90109-12081

main41110-22730iJZX90..ATM..TOUV199210-199609

sub41110-22731

main41110-22740iJZX90..ATM..TOUV199210-199609

sub41110-22741

main41110-22780iJZX93199310-199512

sub41110-30720

main41110-22800iLX90..ATM199309-199609

main41110-30810iJZX93199512-199609

sub41110-30811

sub90110-10016

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90901-05011iGX90,JZX9#,LX90,SX90199210-199609

41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)

main90341-18035iGX90,JZX9#,LX90,SX90199210-199609

41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)

main12157-10010iGX90,JZX9#,LX90,SX90199210-199609

41110HPLUG (FOR REAR DIFFERENTIAL FILLER)

main90341-18023iGX90,JZX9#,LX90,SX90199308-199411

main90341-18032iGX90,JZX9#,LX90,SX90199210-199609

41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)

main12157-10010iGX90,JZX9#,LX90,SX90199210-199609

41110KPLUG, BREATHER (FOR REAR DIFFERENTIAL)

main90930-03031iGX90,JZX9#,LX90,SX90199210-199609

41110SBOLT, NO.2 (FOR REAR DIFFERENTIAL CARRIER SET)

main90110-14004iJZX93;JZX90,LX90,SX90..SC,SUF,TOUV199210-199609

sub90110-14006

41110TBOLT, NO.3 (FOR REAR DIFFERENTIAL CARRIER SET)

main90110-14004iGX90,JZX9#,LX90,SX90199210-199609

sub90110-14006

41111APIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER)

main90250-08120iGX90,JZX9#,LX90,SX90199210-199609

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12164iGX90,JZX9#,LX90,SX90199210-199609

41181HCOVER, REAR DIFFERENTIAL CARRIER

main41181-22060iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

sub41108-53010

main41181-22070iJZX91;JZX90..TOUV199210-199609

sub41108-53020

41181PBOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING)

main90105-10117iGX90,JZX9#,LX90,SX90199210-199609

sub90105-10417

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-80003iGX90;LX90..MTM;SX90..ATM199409-199609

sub41201-80109

main41201-80004iJZX93199409-199609

main41201-80049iSX90..MTM199210-199609

sub41201-29005

main41201-80050iJZX90..MTM199210-199609

sub41201-80781

main41201-80051iLX90199210-199609

main41201-80052iJZX91;JZX90..ATM..TOUV199210-199609

sub41201-59265

main41201-80053iGX90;SX90..ATM199210-199409

sub41201-80003

main41201-80054iJZX90..SLT,SLTG,TOUS199210-199609

main41201-80065iJZX93199310-199409

sub41201-80004

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35023iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90366-35028iJZX91;JZX90..TOUV199210-199609

sub90366-35087

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

sub90366-30078

main90366-30025iJZX91;JZX90..TOUV199210-199609

sub90366-30067

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38010iGX90,JZX9#,LX90,SX90199210-199609

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35497iGX90,JZX9#,LX90,SX90199210-199609

main90201-35498iGX90,JZX9#,LX90,SX90199210-199609

main90201-35499iGX90,JZX9#,LX90,SX90199210-199609

main90201-35500iGX90,JZX9#,LX90,SX90199210-199609

main90201-35501iGX90,JZX9#,LX90,SX90199210-199609

main90201-35502iGX90,JZX9#,LX90,SX90199210-199609

main90201-35503iGX90,JZX9#,LX90,SX90199210-199609

main90201-35504iGX90,JZX9#,LX90,SX90199210-199609

main90201-35505iGX90,JZX9#,LX90,SX90199210-199609

main90201-35506iGX90,JZX9#,LX90,SX90199210-199609

main90201-35507iGX90,JZX9#,LX90,SX90199210-199609

main90201-35508iGX90,JZX9#,LX90,SX90199210-199609

main90201-35509iGX90,JZX9#,LX90,SX90199210-199609

main90201-35510iGX90,JZX9#,LX90,SX90199210-199609

main90201-35511iGX90,JZX9#,LX90,SX90199210-199609

main90201-35512iGX90,JZX9#,LX90,SX90199210-199609

main90201-35513iGX90,JZX9#,LX90,SX90199210-199609

main90201-35514iGX90,JZX9#,LX90,SX90199210-199609

main90201-35515iGX90,JZX9#,LX90,SX90199210-199609

main90201-35516iGX90,JZX9#,LX90,SX90199210-199609

main90201-35517iGX90,JZX9#,LX90,SX90199210-199609

main90201-35518iGX90,JZX9#,LX90,SX90199210-199609

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-20030iGX90,SX90;LX90..ATM199210-199609

main41204-35041iJZX91;JZX90..TOUV199210-199609

main41204-35050iLX90..MTM;JZX90,93..SLT,SLTG,TOUS199210-199609

41204BNUT (FOR REAR DRIVE PINION)

main90179-18019iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199305-199609

sub90179-18020

main90179-18019iGX90,JZX90,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199305

sub90179-18020

main90179-18020iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199305-199609

main90179-20018iJZX91;JZX90..TOUV199210-199609

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iJZX91;JZX90..TOUV199210-199609

main41214-30021iGX90,JZX90,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main41214-35020iJZX93199310-199409

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-22010iJZX91;JZX90..TOUV199210-199609

main41222-35030iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iGX90,JZX9#,LX90,SX90199210-199609

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main41231-24010iJZX91;JZX90..TOUV199210-199609

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-30010iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main41252-35010iJZX91;JZX90..TOUV199210-199310

sub41252-35020

main41252-35020iJZX91;JZX90..TOUV199310-199609

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-14070iJZX90..TOUV199210-199609

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50001iJZX91;JZX90..TOUV199210-199609

main90368-50006iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

41309ASHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR

main41309-14040iSX90199210-199609

main41309-14050iSX90..MTM199210-199507

main41309-22050iJZX90..ATM..TOUV199210-199609

main41309-22060iLX90..ATM199210-199507

main41309-22070iJZX90,93..SLT,SLTG,TOUS199210-199609

sub41309-22071

sub90110-10016

main41309-22080iJZX91199210-199609

main41309-22090iJZX90..MTM199210-199609

main41309-30010iGX90,LX90199210-199609

41311JCASE, REAR DIFFERENTIAL

main41311-22060iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main41311-22080iJZX91199210-199609

main41311-28030iLX90..MTM199509-199609

41331GEAR, REAR DIFFERENTIAL SIDE

main41305-14011iSX90..MTM199210-199507

main41305-30010iGX90;SX90..ATM199507-199609

main41331-14040iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

sub41331-14041

main41331-22060iJZX91199210-199609

main41331-24020iJZX90..ATM..TOUV199210-199609

41334ABOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90114-10028iGX90,LX90,SX90199210-199609

41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90311-38011iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90311-43001iJZX91;JZX90..TOUV199210-199609

sub90311-43009

41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90201-52001iJZX91;JZX90..TOUV199210-199609

main90201-52003iJZX91;JZX90..TOUV199210-199609

main90201-52005iJZX91;JZX90..TOUV199210-199609

main90201-52007iJZX91;JZX90..TOUV199210-199609

main90201-52009iJZX91;JZX90..TOUV199210-199609

main90201-52011iJZX91;JZX90..TOUV199210-199609

main90201-52013iJZX91;JZX90..TOUV199210-199609

main90201-52015iJZX91;JZX90..TOUV199210-199609

main90201-52017iJZX91;JZX90..TOUV199210-199609

main90201-52019iJZX91;JZX90..TOUV199210-199609

main90201-52021iJZX91;JZX90..TOUV199210-199609

main90201-52023iJZX91;JZX90..TOUV199210-199609

main90201-52025iJZX91;JZX90..TOUV199210-199609

main90201-52027iJZX91;JZX90..TOUV199210-199609

main90201-52029iJZX91;JZX90..TOUV199210-199609

main90201-52031iJZX91;JZX90..TOUV199210-199609

main90201-65007iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90201-65009iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90201-65011iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90201-65013iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90201-65015iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90201-65017iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90201-65019iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90201-65021iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90201-65023iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90201-65025iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90201-65027iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90201-65029iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90564-46014iJZX91;JZX90..TOUV199210-199609

main90564-46015iJZX91;JZX90..TOUV199210-199609

main90564-46016iJZX91;JZX90..TOUV199210-199609

main90564-46017iJZX91;JZX90..TOUV199210-199609

main90564-46018iJZX91;JZX90..TOUV199210-199609

main90564-46019iJZX91;JZX90..TOUV199210-199609

main90564-46020iJZX91;JZX90..TOUV199210-199609

main90564-46021iJZX91;JZX90..TOUV199210-199609

main90564-46022iJZX91;JZX90..TOUV199210-199609

main90564-46023iJZX91;JZX90..TOUV199210-199609

main90564-46024iJZX91;JZX90..TOUV199210-199609

main90564-46025iJZX91;JZX90..TOUV199210-199609

main90564-46026iJZX91;JZX90..TOUV199210-199609

main90564-46027iJZX91;JZX90..TOUV199210-199609

main90564-46028iJZX91;JZX90..TOUV199210-199609

main90564-46029iJZX91;JZX90..TOUV199210-199609

main90564-46030iJZX91;JZX90..TOUV199210-199609

main90564-46031iJZX91;JZX90..TOUV199210-199609

main90564-46032iJZX91;JZX90..TOUV199210-199609

main90564-46033iJZX91;JZX90..TOUV199210-199609

main90564-46034iJZX91;JZX90..TOUV199210-199609

main90564-46035iJZX91;JZX90..TOUV199210-199609

main90564-46036iJZX91;JZX90..TOUV199210-199609

main90564-46037iJZX91;JZX90..TOUV199210-199609

main90564-46038iJZX91;JZX90..TOUV199210-199609

main90564-46039iJZX91;JZX90..TOUV199210-199609

main90564-46040iJZX91;JZX90..TOUV199210-199609

main90564-46041iJZX91;JZX90..TOUV199210-199609

main90564-46042iJZX91;JZX90..TOUV199210-199609

main90564-46043iJZX91;JZX90..TOUV199210-199609

main90564-65001iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90564-65002iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90564-65003iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90564-65004iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90564-65005iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90564-65006iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90564-65007iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90564-65008iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90564-65009iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90564-65010iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90564-65011iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90564-65012iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90564-65013iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90564-65014iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90564-65015iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90564-65016iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90564-65017iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90564-65018iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90564-65019iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90564-65020iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90564-65021iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90564-65022iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90521-29002iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main90521-34003iJZX91;JZX90..TOUV199210-199609

41336COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main41336-22010iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main41336-24010iJZX91;JZX90..TOUV199210-199609

41341PINION, REAR DIFFERENTIAL

main41341-14031iGX90;SX90..ATM199210-199507

main41341-22040iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199409

sub41341-22041

main41341-30020iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199409-199609

sub41341-30050

main41341-30040iJZX91199210-199609

main41341-35010iJZX90..ATM..TOUV199210-199609

sub41341-14041

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-22020iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

sub41342-22021

main41342-22030iJZX91199210-199609

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30052iJZX91199210-199609

main41351-30060iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-24010iJZX90..ATM..TOUV199210-199609

sub41361-60E10

main41361-24020iJZX90..ATM..TOUV199210-199609

sub41361-60E50

main41361-24030iJZX90..ATM..TOUV199210-199609

sub41361-60E90

main41361-24040iJZX90..ATM..TOUV199210-199609

sub41361-60F30

main41361-24050iJZX90..ATM..TOUV199210-199609

sub41361-60F70

main41361-28120iSX90..MTM199210-199507

main41361-28170iLX90..ATM199409-199507

main41361-30040iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main41361-30050iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main41361-30060iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main41361-30070iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main41361-30080iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main41361-30090iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main41361-30100iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF,TOUS199210-199609

main41361-30110iSX90..MTM199507-199609

sub41361-30111

main41361-40021iJZX91199210-199609

main41362-40021iJZX91199210-199609

main41363-40021iJZX91199210-199609

41651ACUSHION, REAR DIFFERENTIAL MOUNT, NO.2

main41651-22070iJZX93;JZX90,LX90,SX90..SC,SUF,TOUV199210-199609

41651FCUSHION, REAR DIFFERENTIAL MOUMT, NO.3

main41651-22060iGX90,JZX9#,LX90,SX90199210-199609

41653STOPPER, REAR DIFFERENTIAL MOUNT, UPPER

main41653-22010iGX90,JZX9#,LX90,SX90199210-199609

41654STOPPER, REAR DIFFERENTIAL MOUNT, LOWER

main41654-22010iGX90,JZX9#,LX90,SX90199210-199609

44 parts on this diagram · 5 diagrams in section
