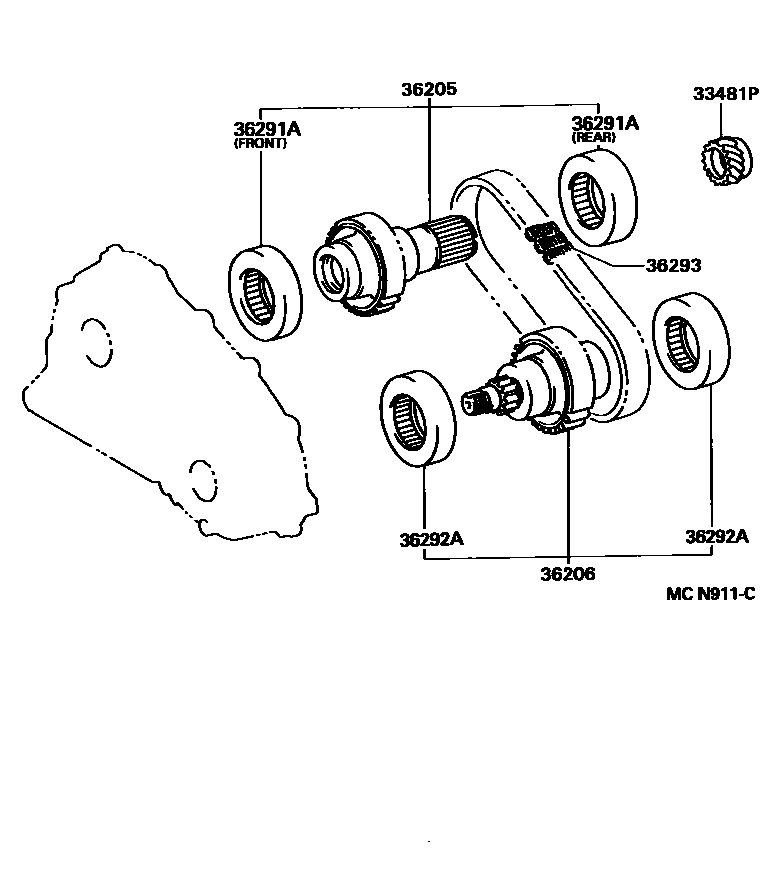

TRANSFER GEAR

0001 1 0002 1

33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)

main33481-22040iJZX93199310-199512

main33481-24020iJZX93199512-199609

36205SPROCKET SUB-ASSY, TRANSFER DRIVE

main36205-30010iJZX93199310-199512

sub36205-30020

main36205-30020iJZX93199512-199609

36206SLEEVE SUB-ASSY, TRNSFR FR DRIVE CLUTCH

main36206-30010iJZX93199310-199512

sub36206-30020

main36206-30020iJZX93199512-199609

36291ABEARING (FOR TRANSFER DRIVE SPROCKET)

main90363-55002iJZX93199310-199609

REAR

main90363-55003iJZX93199310-199512

FRONT

sub90363-55004

main90363-55004iJZX93199512-199609

FRONT

36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)

main90363-55003iJZX93199310-199512

sub90363-55004

main90363-55004iJZX93199512-199609

36293CHAIN, TRANSFER FRONT DRIVE

main36293-30010iJZX93199310-199609

6 parts on this diagram · 2 diagrams in section
