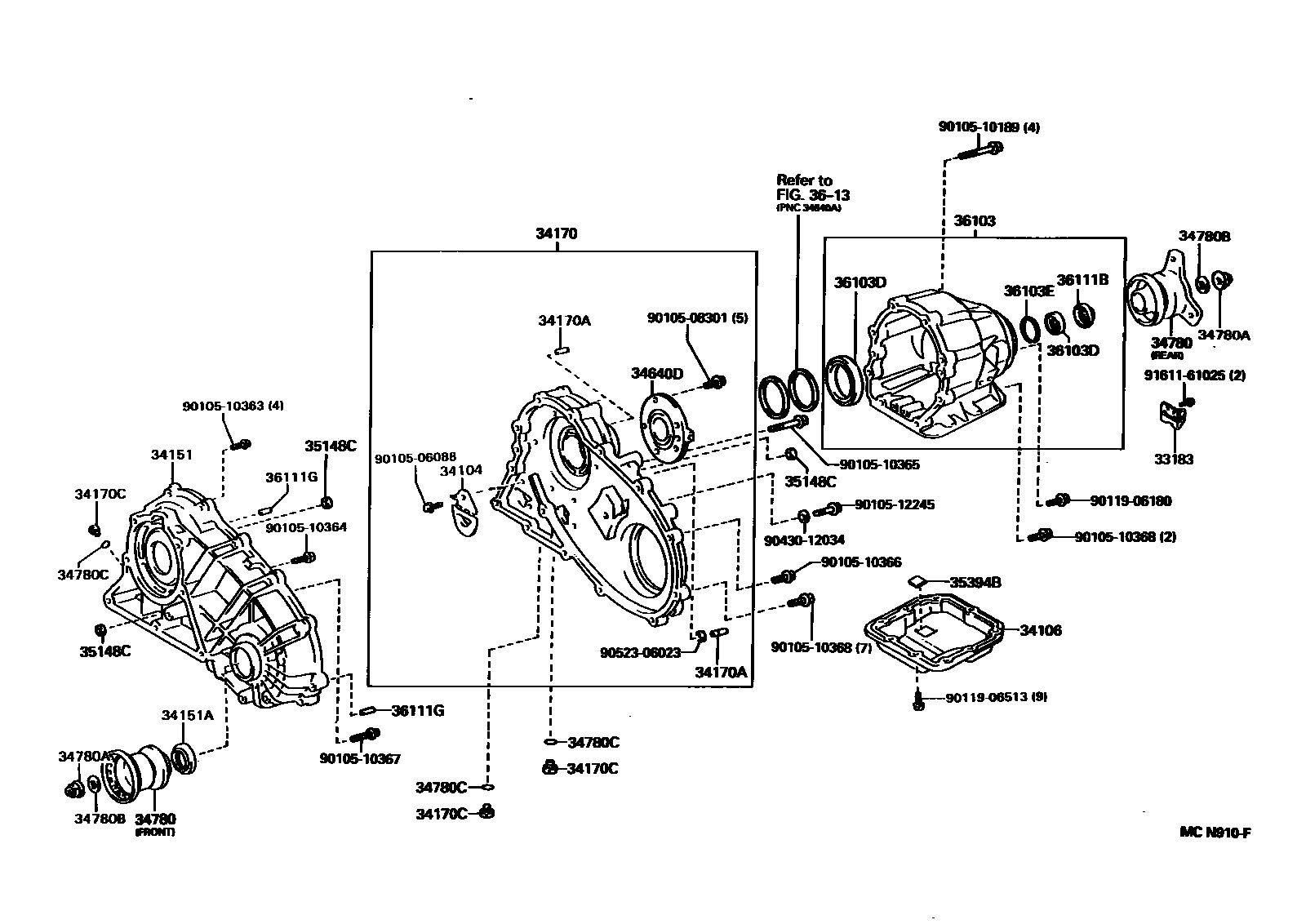

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1

33183DAMPER, TRANSFER DYNAMIC

main33183-22010iJZX93199310-199609

34104VALVE SUB-ASSY, TRANSFER BAFFLE

main34104-30010iJZX93199310-199609

34106PAN SUB-ASSY, TRANSFER OIL

main34161-30010iJZX93199310-199503

main34161-30011iJZX93199503-199609

34151CASE, TRANSFER CHAIN, FRONT

main34151-30010iJZX93199310-199609

sub34151-30011

34151ASEAL, OIL (FOR TRANSFER CHAIN CASE)

main90311-42029iJZX93199310-199609

34170CASE ASSY, TRANSFER CHAIN, REAR

main34170-30010iJZX93199310-199609

34170APIN, STRAIGHT (FOR TRANSFER CHAIN CASE)

main90249-10191iJZX93199310-199609

main90250-10007iJZX93199310-199609

34170CPLUG (FOR TRANSFER CHAIN CASE)

main90341-08001iJZX93199310-199609

34640DSUPPORT ASSY, TRANSFER CENTER

main34640-30010iJZX93199310-199609

34780YOKE ASSY, FLANGE

main34780-30040iJZX93199310-199512

FRONT

main34780-30040iJZX93199512-199609

main34780-30050iJZX93199310-199512

REAR

34780ANUT (FOR FLANGE YOKE)

main90179-22018iJZX93199310-199609

34780BWASHER, PLATE (FOR FLANGE YOKE)

main90201-30005iJZX93199310-199512

34780CRING, O (FOR FLANGE YOKE)

main90301-06196iJZX93199310-199609

35148CGASKET, GOVERNOR APPLY (FOR ATM TRANSFER CHAIN CASE)

main35148-12010iJZX93199310-199609

35394BMAGNET, OIL CLEANER (FOR TRANSFER)

main35394-30011iJZX93199310-199609

36103CASE SUB-ASSY, TRANSFER

main36101-30010iJZX93199512-199609

main36103-30010iJZX93199310-199512

36103DBEARING (FOR TRANSFER CASE)

main90363-30063iJZX93199310-199512

main90363-60006iJZX93199310-199512

OD=85

sub90363-60007

main90363-60007iJZX93199512-199609

36103ERING, HOLE SNAP (FOR TRANSFER CASE BEARING)

main90521-66006iJZX93199310-199512

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-40001iJZX93199512-199609

main90311-42024iJZX93199310-199512

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10007iJZX93199310-199609

main90250-13003iJZX93199310-199609

3613

9010506088

main90105-06088

9010508301

main90105-08301

9010510189

main90105-10189

9010510363

main90105-10363

9010510364

main90105-10364

9010510365

main90105-10365

9010510366

main90105-10366

9010510367

main90105-10367

9010510368

main90105-10368

9010512245

main90105-12245

9011906180

main90119-06180

9011906513

main90119-06513

9043012034

main90430-12034

9052306023

main90523-06023

9161161025

main91611-61025

36 parts on this diagram · 2 diagrams in section
