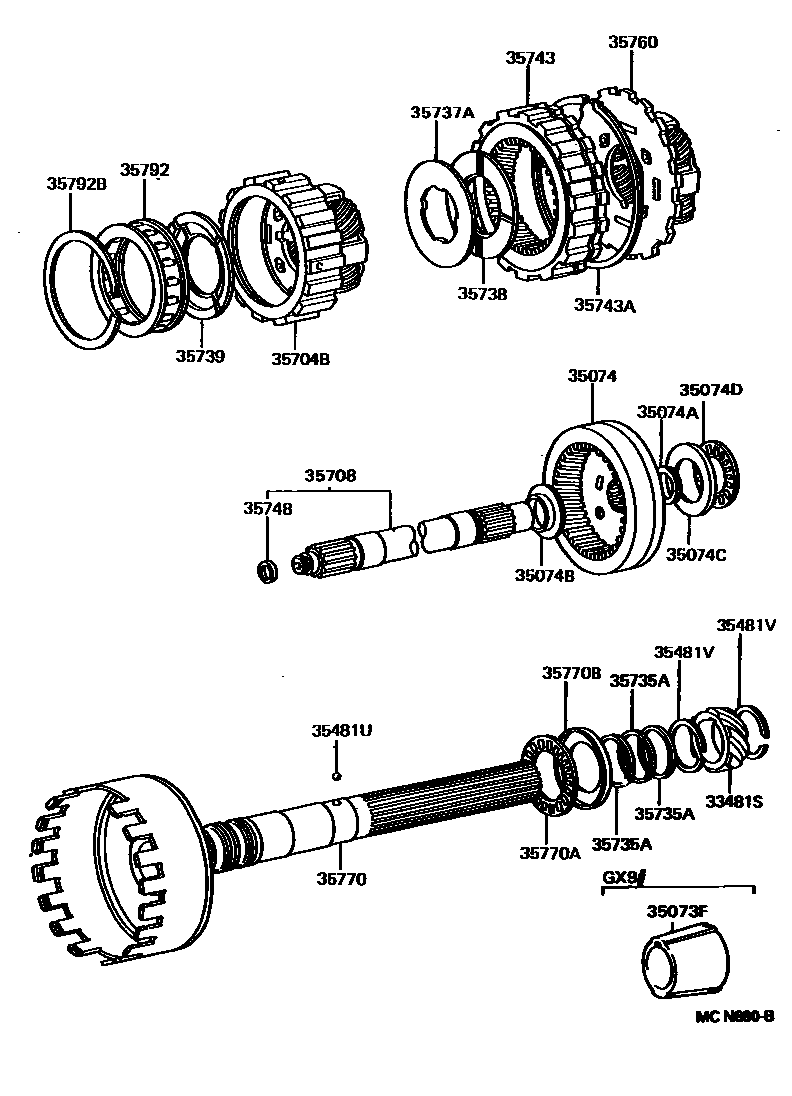

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
33481SGEAR, SPEEDOMETER DRIVE (ATM)
35073FSPACER, NO.1 (FOR OUTPUT SHAFT REAR BEARING)
35074GEAR SUB-ASSY, REAR PLANETARY RING
35074ARING, SET (FOR REAR PLANETARY RING GEAR)
35074BRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRONT)
35074CRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR)
35074DBEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)
35481UKEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)
35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
35704BGEAR SUB-ASSY, FRONT PLANETARY
35708SHAFT SUB-ASSY, INTERMEDIATE
35735ARING, PLANETARY OUTPUT SHAFT OIL SEAL
FRONT
REAR
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35739WASHER, PLANETARY CARRIER THRUST, NO.3
35743GEAR, FRONT PLANETARY RING
35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
35748RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL
35760GEAR ASSY, REAR PLANETARY
35770ABEARING, THRUST (FOR OUTPUT SHAFT)
35770BRACE, THRUST BEARING (FOR OUTPUT SHAFT)
35792CLUTCH, 1 WAY, NO.2
35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
24 parts on this diagram · 2 diagrams in section
