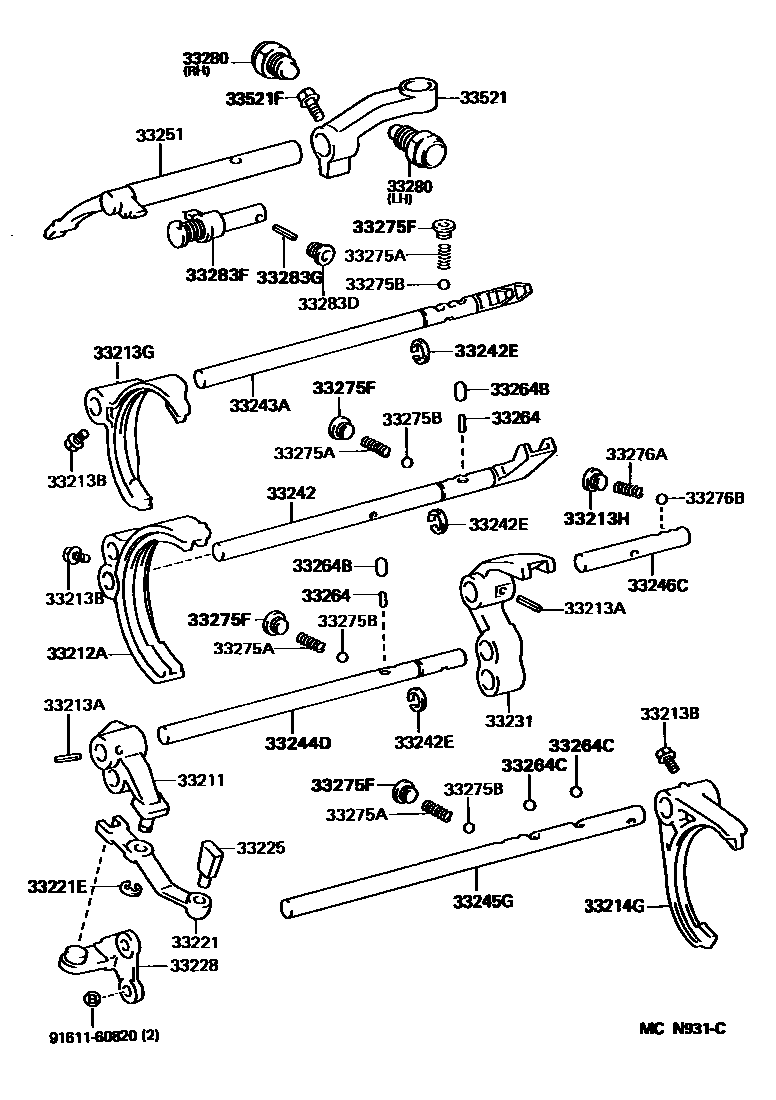

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33211FORK, REVERSE SHIFT
33212AFORK, GEAR SHIFT, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33221ARM, REVERSE SHIFT
33221ERING(FOR REVERSE SHIFT ARM END SHAFT)
33225SHOE, SHIFT ARM
33228BRACKET, REVERSE SHIFT ARM
33231HEAD, REVERSE SHIFT
33242SHAFT, GEAR SHIFT FORK, NO.1
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33245GSHAFT, GEAR SHIFT FORK, NO.4
33246CSHAFT, GEAR SHIFT FORK, NO.5
33251LEVER, SHIFT & SELECT
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )
33264CBALL (FOR SHIFT INTERLOCK)
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
33275BBALL, SHAFT DETENT
33275FPLUG (FOR SHIFT DETENT BALL)
33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
33276BBALL, SHIFT DETENT, NO.2
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283FPIN, REVERSE RESTRICT
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33521HOUSING, SHIFT LEVER
33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)
9161160820
main91611-60820
35 parts on this diagram · 3 diagrams in section
