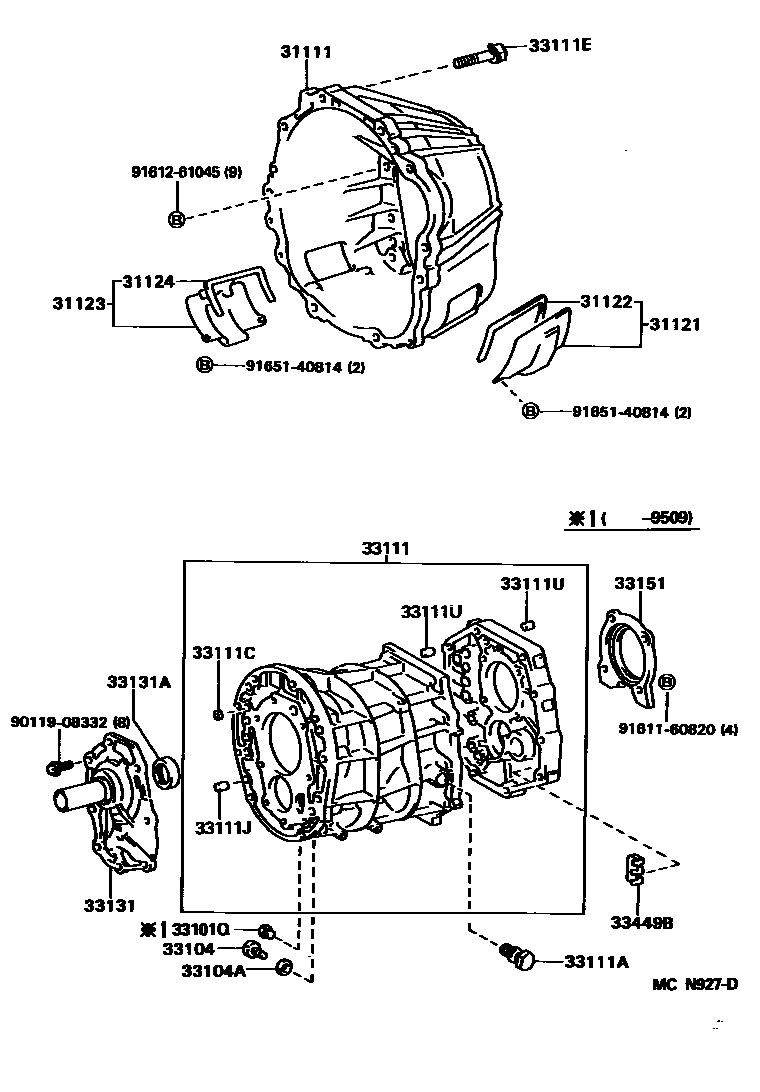

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1R154 0002 1W57 0003 1W55,W56 0004 1W55

31111HOUSING, CLUTCH

main31111-14110iJZX90..MTM199210-199609

sub31111-14111

main31111-22114iLX90..MTM199210-199609

main31111-22120iSX90..MTM199210-199609

main31111-22130iGX90..MTM199210-199609

31121COVER, CLUTCH HOUSING, NO.1

main31101-14010iJZX90..MTM199210-199609

31122GASKET, CLUTCH HOUSING COVER

main31122-14010iJZX90..MTM199210-199609

31123COVER, CLUTCH HOUSING, NO.2

main31102-14010iJZX90..MTM199210-199609

31124GASKET, CLUTCH HOUSING COVER, NO.2

main31124-14010iJZX90..MTM199210-199609

33101QPLUG, NO.1(FOR TRANSMISSION CASE)

main90341-16013iJZX90..MTM199210-199509

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iJZX90..MTM199210-199609

main90341-18057iGX90,LX90,SX90..MTM199210-199408

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iGX90,JZX90,LX90,SX90..MTM199210-199609

33111CASE, MANUAL TRANSMISSION

main33101-30070iGX90,LX90,SX90..MTM199210-199503

main33101-30071iGX90,LX90,SX90..MTM199503-199609

main33101-35031iJZX90..MTM199210-199405

sub33101-60030

main33101-35080iJZX90..MTM199405-199509

sub33101-60050

main33101-35100iJZX90..MTM199509-199609

sub33101-60040

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iGX90,LX90,SX90..MTM199210-199408

main90341-18006iGX90,LX90,SX90..MTM199408-199609

main90341-18026iJZX90..MTM199210-199609

sub90341-18019

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iGX90,LX90,SX90..MTM199210-199609

main90331-14004iGX90,LX90,SX90..MTM199409-199503

main96411-41800iJZX90..MTM199210-199609

33111EBOLT(FOR TRANSMISSION CASE & ENGINE SETTING)

main90119-12028iSX90..MTM199210-199609

*12-1.25PX90-30

main90119-12168iSX90..MTM199210-199609

main91611-61040iJZX90..MTM199210-199609

*10-1.25PX40-30

sub91612-61040

main91619-61250iGX90..MTM199210-199609

*12-1.25PX50-30

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iJZX90..MTM199210-199609

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001iJZX90..MTM199210-199609

33131RETAINER, BEARING, FRONT(MTM)

main33131-30080iGX90,LX90,SX90..MTM199210-199609

main33131-35031iJZX90..MTM199210-199609

sub33131-35032

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iGX90,LX90,SX90..MTM199210-199609

main90311-32012iJZX90..MTM199210-199609

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-30020iGX90,LX90,SX90..MTM199210-199609

main33151-35020iJZX90..MTM199210-199609

33449BMAGNET, TRANSMISSION

main33449-30010iGX90,LX90,SX90..MTM199210-199609

REAR

main33449-30020iGX90,LX90,SX90..MTM199210-199609

FRONT

main33449-35010iJZX90..MTM199210-199405

main33449-35030iJZX90..MTM199405-199609

9011908332

main90119-08332

9161160820

main91611-60820

9161261045

main91612-61045

9165140814

main91651-40814

22 parts on this diagram · 4 diagrams in section
