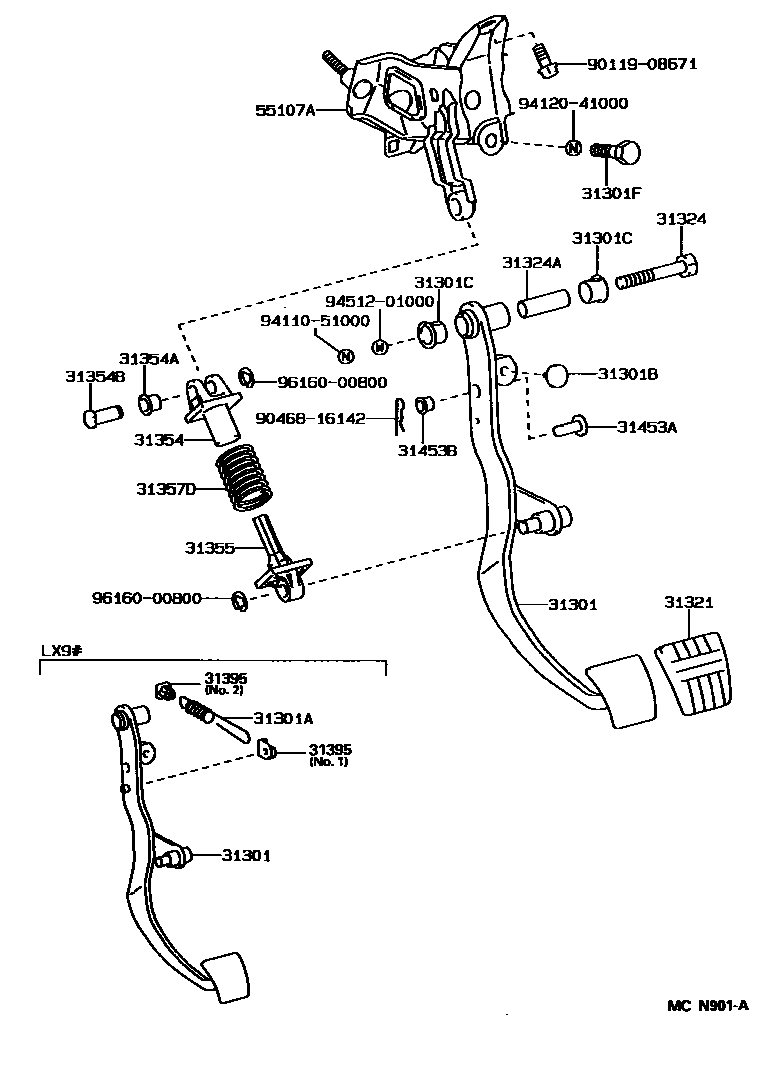

CLUTCH PEDAL & FLEXIBLE HOSE
31301ASPRING(FOR CLUTCH PEDAL)
31301CBUSH(FOR CLUTCH PEDAL)
31301FBOLT(FOR CLUTCH PEDAL STOPPER)
31321PAD, CLUTCH PEDAL
31324SHAFT, CLUTCH PEDAL
31324ACOLLAR, CLUTCH PEDAL SHAFT
31354SEAT, CLUTCH PEDAL SPRING, UPPER
31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)
31354BPIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)
31355SEAT, CLUTCH PEDAL SPRING, LOWER
31357DSPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)
31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
55107ASUPPORT SUB-ASSY, CLUTCH PEDAL
9011908671
main90119-08671
9046816142
main90468-16142
9411051000
main94110-51000
9412041000
main94120-41000
9451201000
main94512-01000
9616000800
main96160-00800
23 parts on this diagram · 3 diagrams in section
