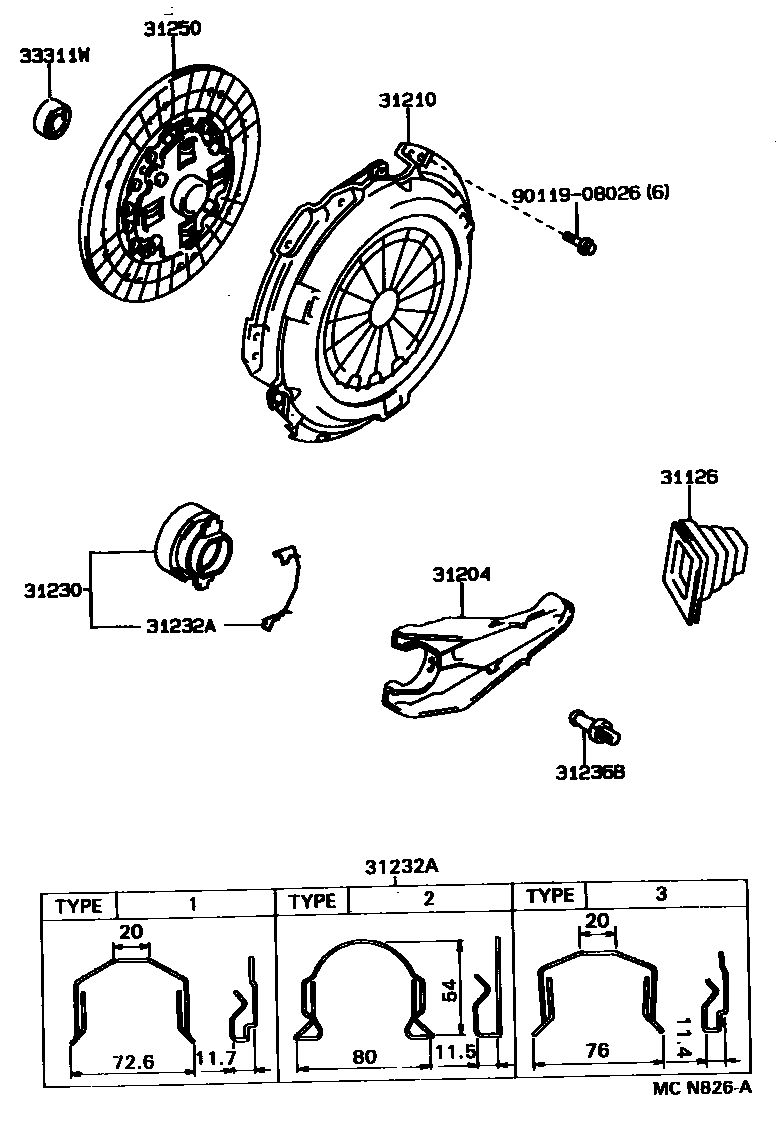

CLUTCH & RELEASE FORK

0001 1W55,W56,W57 0002 1R154

31126BOOT, CLUTCH RELEASE FORK

main31126-20070iGX90,LX90,SX90..MTM199210-199609

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-14031iJZX90..MTM199210-199609

main31204-35050iGX90,LX90,SX90..MTM199210-199609

31210COVER ASSY, CLUTCH

main31210-14150iJZX90..MTM199210-199609

main31210-22160iGX90..MTM199210-199609

sub31210-22161

main31210-22170iLX90..MTM199210-199609

sub31210-53040

main31210-35090iSX90..MTM199210-199609

sub31210-22100

31230BEARING ASSY, CLUTCH RELEASE

main31230-22090iLX90..MTM199210-199609

sub31230-22091

main31230-35070iSX90..MTM199210-199609

sub31230-35071

main31230-35090iGX90..MTM199210-199609

sub31230-35091

31232ACLIP, RELEASE BEARING HUB

main31232-35020iGX90,SX90..MTM199409-199609

TYPE 1

main31232-35020iGX90,SX90..MTM199210-199409

main31232-35030iLX90,SX90..MTM199210-199409

main31232-35030iLX90,SX90..MTM199409-199609

TYPE 2

main31232-35040iGX90,LX90..MTM199210-199409

main31232-35040iGX90,LX90..MTM199409-199609

TYPE 3

31236BSUPPORT, RELEASE FORK

main31236-14020iJZX90..MTM199210-199609

main31236-30060iGX90,LX90,SX90..MTM199210-199609

31250DISC ASSY, CLUTCH

main31250-22231iGX90..MTM199210-199605

sub31250-22360

main31250-22340iSX90..MTM199210-199609

sub31250-22341

main31250-22360iGX90..MTM199605-199609

sub31250-35370

main31250-22370iJZX90..MTM199210-199609

sub31250-22350

main31250-26104iLX90..MTM199210-199506

sub31250-26105

main31250-26105iLX90..MTM199506-199609

sub31250-26106

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iJZX90,LX90..MTM199210-199609

sub90363-12024

main90363-12003iGX90..MTM199210-199609

main90363-12004iSX90..MTM199210-199609

9011908026

main90119-08026

9 parts on this diagram · 2 diagrams in section
