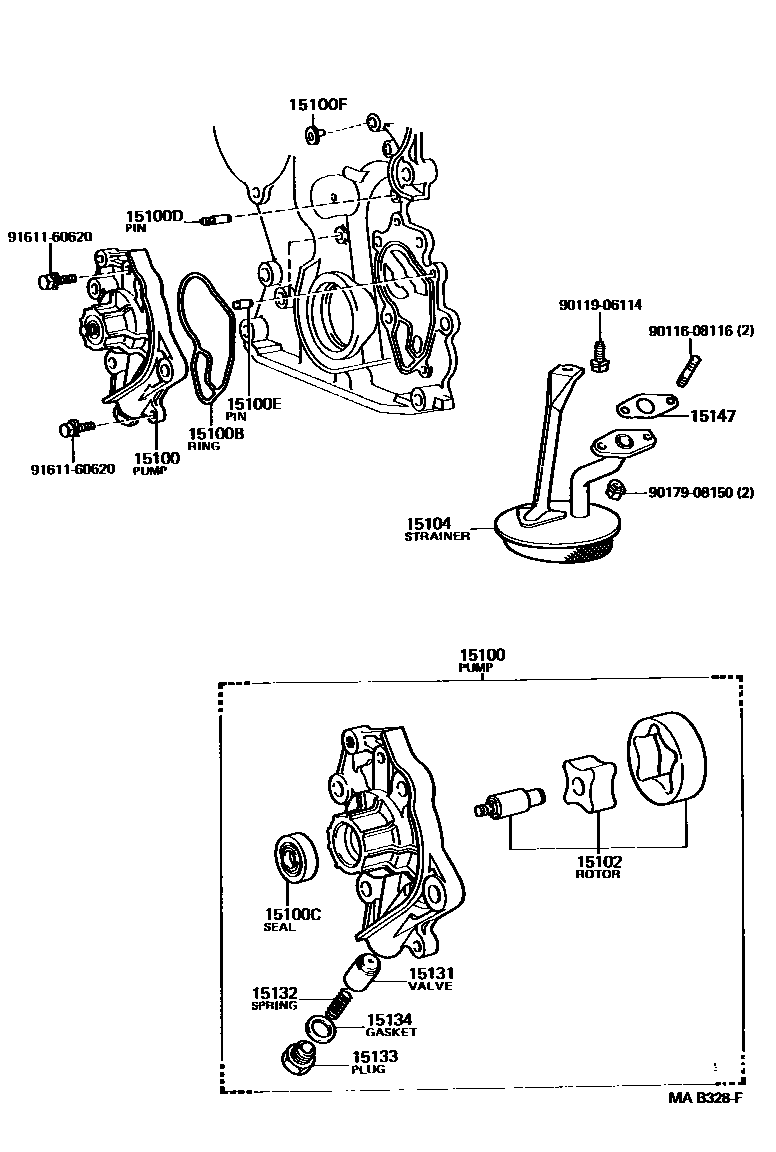

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

15100PUMP ASSY, OIL

main15100-46030i1JZGTE..JZX90199210-199609

main15100-46040i1JZGE,2JZGE..JZX9#199210-199304

sub15100-46041

main15100-46041i1JZGE,2JZGE..JZX90,91199304-199602

sub15100-46042

main15100-46042i1JZGE,2JZGE..JZX90,91199602-199609

main15100-46070i1JZGE..JZX93199310-199609

sub15100-46100

sub11324-46030

sub11444-46010

sub91631-60616

main15100-70030i1GFE..GX90199210-199609

main15100-74010i4SFE..SX90199210-199508

sub15100-74060

sub15197-74040

main15100-74060i4SFE..SX90199508-199609

15100BRING, O(FOR OIL PUMP)

main15188-63010i4SFE..SX90199210-199304

main15188-70010i1GFE..GX90199210-199609

main15188-88382i4SFE..SX90199304-199609

sub15188-74050

15100CSEAL(FOR OIL PUMP)

main15165-70010i4SFE..SX90199210-199304

main15165-74020i4SFE..SX90199304-199609

main90029-21005i1GFE..GX90199210-199609

15100DPIN(FOR OIL PUMP SET)

main15182-70010i1GFE..GX90199210-199609

main90253-09001i4SFE..SX90199210-199609

15100EPIN, STRAIGHT (FOR OIL PUMP SET)

main15181-70010i1GFE..GX90199210-199609

15100FBUSH (FOR OIL PUMP)

main90029-38302i1GFE..GX90199210-199609

15102ROTOR SET, OIL PUMP

main15102-63010i4SFE..SX90199210-199609

main15102-70011i1GFE..GX90199210-199609

15104STRAINER SUB-ASSY, OIL

main15104-46011i1JZ#,2JZGE..JZX9#199210-199308

sub15104-46060

main15104-46050i1JZGE..JZX93199310-199609

sub15104-46051

main15104-46060i1JZ#,2JZGE..JZX90,91199308-199609

main15104-54150i2LTE..LX90199210-199609

main15104-70040i1GFE..GX90199210-199609

main15104-74040i4SFE..SX90199210-199609

15131VALVE, OIL PUMP RELIEF

main15131-17010i1JZGE,2JZGE..JZX9#199304-199609

main15131-24010i1GFE..GX90199210-199609

main15131-46030i1JZGTE..JZX90199210-199609

main15131-46040i1JZGE,2JZGE..JZX9#199210-199304

main15131-54010i2LTE..LX90199210-199609

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i1GFE..GX90199210-199609

main15132-46020i1JZGE,2JZGE..JZX9#199210-199609

main15132-46030i1JZGTE..JZX90199210-199609

main15132-54010i2LTE..LX90199210-199609

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1JZGE,2JZGE..JZX9#199210-199609

main15133-20010i1GFE..GX90199210-199609

main15133-46030i1JZGTE..JZX90199210-199609

main15133-54010i2LTE..LX90199210-199609

15134GASKET, OIL PUMP RELIEF VALVE

main15134-17010i1JZGE,2JZGE..JZX9#199210-199508

main15134-67020i1JZGE,2JZGE..JZX9#199508-199609

main15134-70030i1GFE..GX90199210-199609

15147GASKET, OIL STRAINER

main15147-46010i1JZ#,2JZGE..JZX90,91199210-199609

main15147-46030i1JZGE..JZX93199310-199609

main15147-70021i1GFE..GX90199210-199609

9011608116

main90116-08116

9011906114

main90119-06114

9017908150

main90179-08150

9161160620

main91611-60620

17 parts on this diagram · 6 diagrams in section
