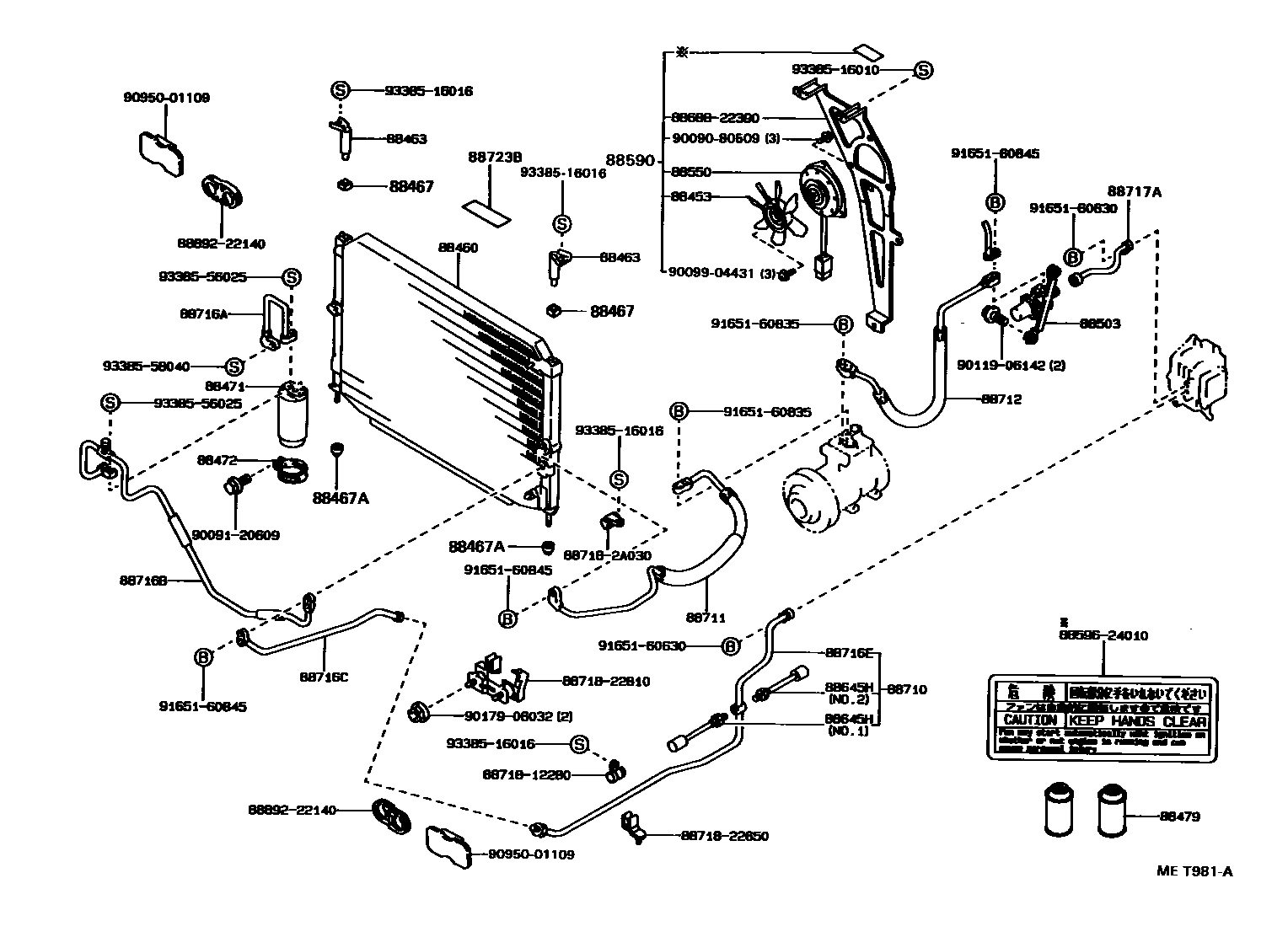

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0004 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0015 1 0016 1

88453FAN, COOLING (FOR CONDENSER)

main88453-12040iGX81..5F..TWT;GX81..4FC..(SLT,SLTG)198808-199210

88460CONDENSER ASSY, COOLER

main88460-22390iGX81,MX83,SX80..GT,KYO,SLT,SLTG198808-199210

main88460-22410iYX80198808-199210

main88460-22420iLX80..KYO198808-199210

88463BRACKET, COOLER CONDENSER, NO.1

main88463-22010iGX81,LX80,MX83,SX80,YX80..GT,KYO,SLT,SLTG198808-199210

88467CUSHION, COOLER CONDENSER, NO.1

main88467-32030iGX81,LX80,SX80,YX80..KYO,SCM,SDX198808-199210

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-32020iLX80,SX80,YX80..KYO198808-199210

88471TANK, RECEIVER AIR CONDITIONER

main88470-22010iLX80,YX80..KYO198808-199210

main88471-12020iGX81,MX83..GT,SLT,SLTG198808-199210

sub88471-12060

main88471-16040iSX80;GX81,LX80..SCM,SDX198808-199210

sub88471-16050

88472BRACKET, RECEIVER TANK, NO.1

main88472-22090iLX80,YX80..KYO198808-199210

main88473-22020iSX80..KYO198808-199210

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iLX80,SX80,YX80..KYO198808-198910

sub90986-02004

sub90986-02005

main90986-02004iGX81,LX80,SX80..SCM,SDX198903-199210

88503REGULATOR ASSY, PRESSURE

main88503-22180iGX81,MX83..GT,SLT,SLTG198808-199012

sub88503-22181

main88503-22181iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199012-199210

main88503-22190iGX81,LX80,SX80..SCM,SDX198808-199008

sub88503-22191

main88503-22220iSX80..KYO198808-199210

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-22040iGX81..5F..TWT;GX81..4FC..(SLT,SLTG)198808-199210

sub88550-22060

main88550-22040iGX81,MX83..4FC..(GT,SLTG)..(TWC,TWT)198809-198909

sub88550-22060

main88550-22050iGX81..4FC..TWT;JZX81,MX83..TWC198809-199210

main88550-22060iGX81..4FC..TWT;JZX81,MX83..TWC198909-199210

main88550-22070iJZX81..TWT199008-199210

88590BLOWER ASSY, W/SHROUD

main88590-22050iGX81,MX83..4FC..(GT,SLTG)..(TWC,TWT)198808-199008

main88590-22060iGX81..5F..TWT198808-199008

main88590-22070iGX81..4FC198808-199210

main88590-22101iJZX81..TWT199008-199210

main88590-22110iJZX81,MX83..TWC199008-199210

88645HSWITCH, PRESSURE NO.1

main88645-20010iSX80..SCM198808-198811

main88645-20010iSX80..SCM198808-199210

main88645-22050iYX80..3FC198808-199210

main88645-30280iGX81,LX80,SX80..SCM,SDX198808-198909

sub88645-30281

main88645-30281iMX83198808-199210

88710TUBE ASSY, AIR CONDITIONER

main88710-22260iGX81..5F..TWT;GX81,MX83..4FC..(GT,SLT,SLTG)198808-199210

main88710-22280iGX81,LX80..5F..(SCM,SDX,SLT)198808-199210

main88710-22290iSX80..SCM198808-199008

main88710-22300iGX81,LX80..5F..(SCM,SDX)198808-199008

main88710-22310iGX81,LX80..4FC..(SCM,SDX)198808-199008

main88710-22390iLX80..KYO;YX80..3FC198808-199210

main88710-22400iSX80..KYO198808-199210

main88710-22410iYX80..5F198808-199210

main88710-22520iJZX81,SX80..GT,SCM199008-199210

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-22420iGX81..SPC198808-198908

sub88711-22421

main88711-22421iGX81..SPC198908-199008

main88711-22430iGX81..GT,SLT198808-199101

sub88711-22431

main88711-22431iGX81199101-199210

sub88720-22031

main88711-22470iSX80..KYO198808-199210

sub88711-22471

main88711-22480iLX80..SCM198808-199208

sub88711-22481

main88711-22481iLX80..SCM199208-199210

sub88720-22171

main88711-22520iYX80198808-199210

main88711-22550iMX83198908-199101

sub88711-22551

main88711-22551iMX83199101-199210

sub88720-22141

main88711-22560iJZX81..TWT199008-199106

sub88711-22561

main88711-22561iJZX81..TWT199106-199210

sub88720-22151

main88711-22580iSX80..SCM199008-199101

sub88711-22581

main88711-22581iSX80..SCM199101-199210

sub88720-22161

main88711-22590iLX80..KYO199008-199210

main88711-22610iJZX81..TWC199008-199106

sub88711-22611

main88711-22611iJZX81..TWC199106-199210

sub88720-22221

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-22640iGX81..SPC198808-199008

sub88712-2A190

main88712-22650iGX81..HTWC,TWC,TWT198808-199101

sub88712-22651

main88712-22651iGX81199101-199210

main88712-22720iSX80..SCM198808-199008

main88712-22730iLX80..SCM198808-199101

sub88712-22731

main88712-22731iLX80..SCM199101-199210

sub88720-22181

main88712-22760iYX80198808-199210

main88712-22780iSX80..KYO198808-199210

main88712-22820iMX83198908-199101

sub88712-22821

main88712-22821iMX83199101-199210

main88712-22830iJZX81199008-199101

sub88712-22831

main88712-22831iJZX81199101-199210

main88712-22840iSX80..SCM199008-199101

sub88712-22841

main88712-22841iSX80..SCM199101-199210

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-22820iLX80..SCM198808-199210

main88716-22840iGX81,SX80..SCM,SDX198808-199210

main88716-2A110iLX80,YX80..KYO198808-199210

main88716-2A170iJZX81..TWT199008-199210

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-22830iGX81..SPC198808-199210

main88716-22850iGX81,JZX81,MX83,SX80..HTWC,TWC198808-199210

main88716-2A120iLX80,YX80..KYO198808-199210

main88716-2A180iJZX81..TWT199008-199210

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-2A060iGX81,LX80,SX80..SCM,SDX198808-199210

main88716-2A160iJZX81..TWT199008-199210

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-2A040iSX80..SCM;GX81,LX80..4FC..(SCM,SDX)198808-199008

main88716-2A050iGX81,LX80..5F..(SCM,SDX)198808-199008

main88716-2A130iYX80..3FC;LX80,SX80..KYO198808-199210

main88716-2A140iYX80..5F198808-199210

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-22340iSX80..SCM198903-199008

main88717-22340iGX81,LX80..GT,SCM,SDX,SLT,SLTG198808-199210

main88717-22410iYX80198808-199210

main88717-22420iSX80..KYO198808-199210

main88717-22450iSX80..SCM198808-199008

88723BLABEL, COOLER SERVICE CAUTION

main88723-22040iGX81,LX80,SX80..SCM,SDX198912-199210

8859624010PULLEY ASSY, IDLE, NO.2

main88596-24010

8868822390BRACKET, COOLER DIAPHRAGM

main88688-22390

8871812280PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12280

8871822650PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22650

8871822810PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22810

887182A030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2A030

8889222140BRACKET, COOLER EVAPORATOR MOUNTING

main88892-22140

9009080509

main90090-80509

9009120609

main90091-20609

9009904431

main90099-04431

9011906142

main90119-06142

9017906032

main90179-06032

9095001109

main90950-01109

9165160630

main91651-60630

9165160835

main91651-60835

9165160845

main91651-60845

9338516010

main93385-16010

9338516016

main93385-16016

9338556025

main93385-56025

9338558040

main93385-58040

41 parts on this diagram · 13 diagrams in section
