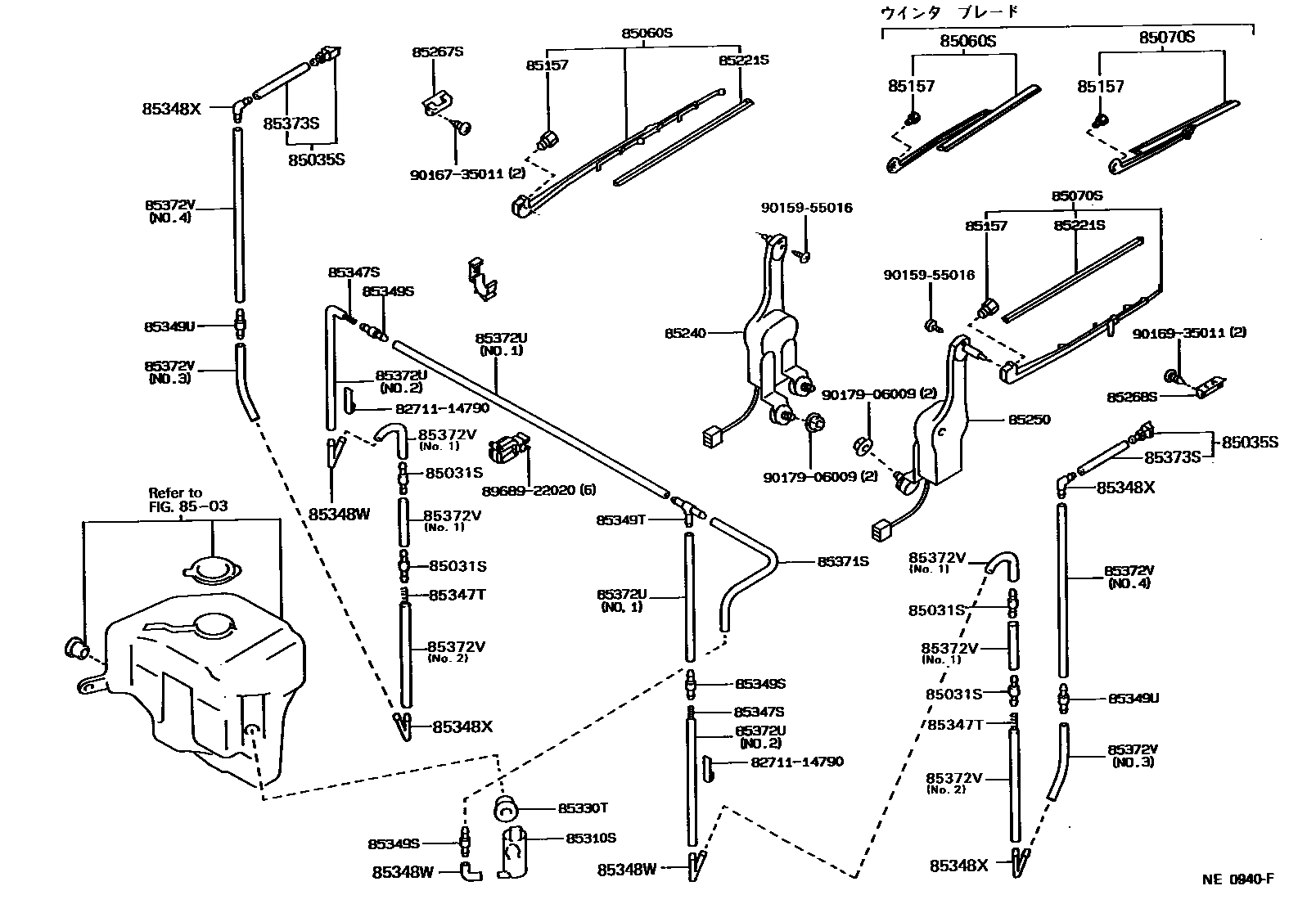

SIDE WIPER

0001 1 0003 1

8503

85031SVALVE SUB-ASSY, WASHER

main85031-30010×4iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

85035SNOZZLE SUB-ASSY, WASHER

main85340-91602-01iJZX81,MX83199008-199210

main85340-91602-02iGX81..GT,SLT198808-198908

main85340-91602-03iGX81..GT,SLT198808-199008

main85340-91602-04iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

main85340-91602-05iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

main85340-91602-07iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

main85340-91602-08iJZX81..TWT;GX81..GT,SLT198908-199210

main85340-91602-12iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

main85340-91602-13iGX81..GT,SLT,SLTG198808-198908

main85340-91602-14iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

main85340-91602-18iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

main85340-91602-23iGX81,MX83..GT,SLT,SLTG198808-199008

main85340-91602-33iGX81,MX83..GT,SLT,SLTG198908-199008

main85340-91602-43iGX81,JZX81,MX83..GT,SLT,SLTG198908-199210

main85340-91602-53iJZX81,MX83..TWC199008-199210

main85340-91603-01iJZX81,MX83199008-199210

main85340-91603-02iGX81..GT,SLT198808-198908

main85340-91603-03iGX81..GT,SLT198808-199008

main85340-91603-04iGX81..GT,SLT198808-198903

main85340-91603-05iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

main85340-91603-07iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

main85340-91603-08iGX81..GT,SLT198908-199008

main85340-91603-12iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

main85340-91603-13iGX81..GT,SLT,SLTG198808-198908

main85340-91603-14iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

main85340-91603-18iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

main85340-91603-23iGX81,MX83..GT,SLT,SLTG198808-199008

main85340-91603-33iGX81,MX83..GT,SLT,SLTG198908-199008

main85340-91603-43iGX81,JZX81,MX83..GT,SLT,SLTG198908-199210

main85340-91603-53iJZX81,MX83..TWC199008-199210

85060SARM AND BLADE ASSY, SID WIPER, RH

main85060-91605iGX81..GT,SLT,SLTG198808-198812

main85060-91613iGX81,JZX81,MX83..GT,SLT,SLTG198812-199009

main85250-23010iGX81,JZX81,MX83..GT,SLT,SLTG199009-199210

85070SARM AND BLADE ASSY, SID WIPER, LH

main85070-91601iGX81..GT,SLT,SLTG198808-198812

main85070-91605iGX81,JZX81,MX83..GT,SLT,SLTG198812-199009

main85260-23010iGX81,JZX81,MX83..GT,SLT,SLTG199009-199210

85157SCREW, WIPER

main85157-22620×2iGX81..GT,SLT,SLTG198808-198812

main85157-22621×2iGX81,JZX81,MX83..GT,SLT,SLTG198812-199210

85221SRUBBER, WIPER BLADE

main85221-22180iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

main85221-22190iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

85240MOTOR ASSY, SIDE WINDOW WIPER, RH

main85240-91601iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

85250MOTOR ASSY, SIDE WINDOW WIPER, LH

main85250-91601iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

85267SSTEP, LINEAR WIPER, RH

main85267-91601iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

85268SSTEP, LINEAR WIPER, LH

main85268-91601iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

85310SMOTER AND PUMP ASSY, WASHER

main85310-16050iJZX81..TWT199008-199210

sub85330-60140

main85310-22080iGX81,JZX81,MX83..SLT,SLTG199008-199210

85330TBUSH, WASHER

main90099-32089iGX81,JZX81,MX83..SLT,SLTG199008-199210

85347SSPRING

main85347-22330×2iGX81,JZX81,MX83..SLT,SLTG199008-199210

85347TSPRING

main85347-22320×2iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

85348WJOINT, WASHER ELBOW, NO.1

main85355-12360×2iGX81,MX83..GT,SLT,SLTG198808-199008

NOZZLE SIDE

main85355-14481iGX81,MX83..GT,SLT,SLTG198808-199008

TANK SIDE

85348XJOINT, WASHER ELBOW, NO.2

main85355-12360×2iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

TANK SIDE

main85355-20200×2iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

NOZZLE SIDE

85349SJOINT, WASHER HOSE, NO.1

main85349-89122×3iGX81,MX83..GT,SLT,SLTG198808-199008

85349TJOINT, WASHER HOSE, NO.2

main85348-12011iGX81,JZX81,MX83..SLT,SLTG199008-199210

sub85375-89141

85349UJOINT, WASHER HOSE, NO.3

main85349-89122×2iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

85371SHOSE, SID WASHER

main90099-33080iJZX81..TWT199008-199210

main90446-07001iGX81,JZX81,MX83..SLT,SLTG199008-199210

85372UHOSE, SIDE WASHER

main90099-33080iJZX81..TWT199008-199210

main90099-33382iGX81,JZX81,MX83..SLT,SLTG199008-199210

RH,NO.1

main90446-06013iGX81,MX83..GT,SLT,SLTG198808-199008

main90446-07001iGX81,JZX81,MX83..SLT,SLTG199008-199210

85372VHOSE, SIDE WASHER

main90099-33080×2iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

main90446-06013×4iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

main90446-07001×2iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

85373SHOSE, SID WASHER

main90099-33299×2iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

8271114790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14790

8968922020CLAMP, WIRELESS DOOR LOCK

main89689-22020

9015955016

main90159-55016

9016735011

main90167-35011

9016935011

main90169-35011

9017906009

main90179-06009

30 parts on this diagram · 2 diagrams in section
