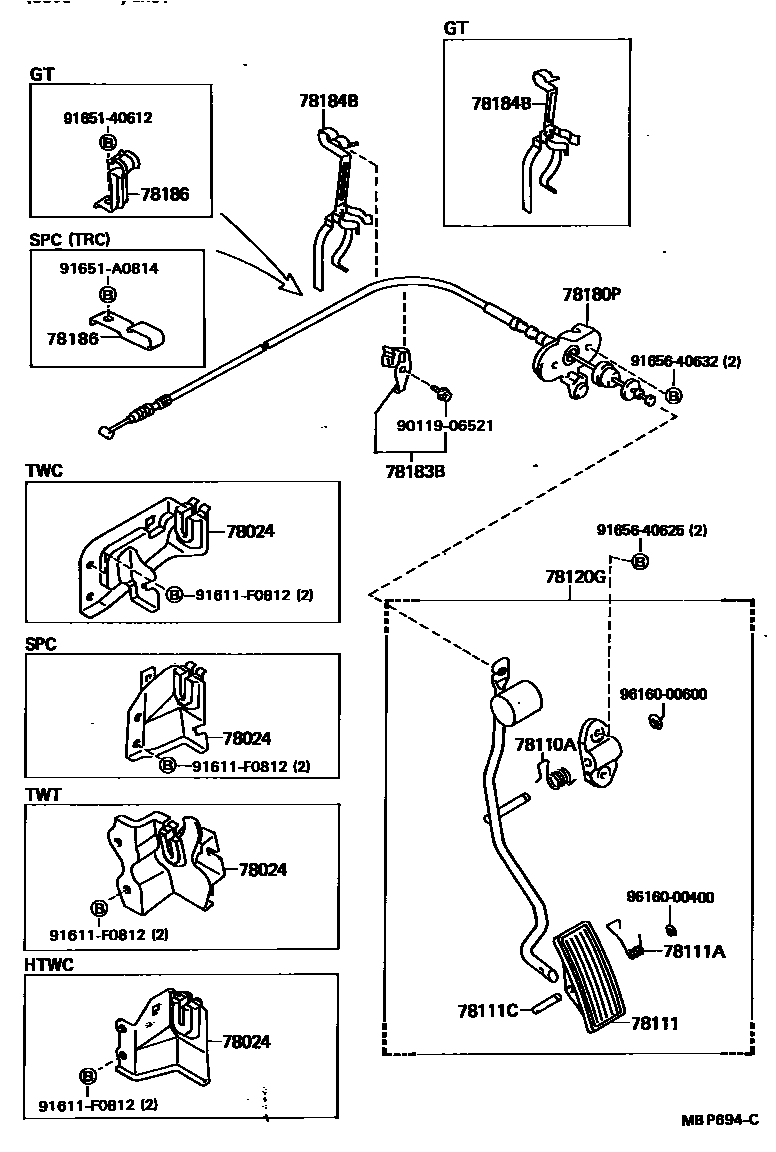

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-22071iGX81..TWT198808-199008

main78024-22080iYX80198808-199210

main78024-22100iLX80198808-199210

main78024-22110iGX81..HTWC198808-199210

sub78024-30100

main78024-22120iSX80198808-199008

main78024-22150iGX81..SPC198808-199008

main78024-22180iSX80199008-199210

main78024-30110iMX83198908-199210

main78024-88301iGX81..TWC198808-199210

main78024-88400iJZX81..TWT199008-199210

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18060iGX81..5F..TWT;GX81,JZX81,LX80,MX83,SX80,YX80..ATM198808-199210

main90508-26054iGX81,LX80,SX80,YX80..5F..(KYO,SCM,SDX,SLT)198808-199210

78111PEDAL, ACCELERATOR

main78111-12100iGX81,LX80,MX83,SX80,YX80198808-199001

main78111-22010iGX81,JZX81,LX80,MX83,SX80,YX80199001-199210

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23108iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

78120GROD ASSY, ACCELERATOR PEDAL

main78120-22260iGX81,LX80,SX80,YX80..5F..(KYO,SCM,SDX,SLT)198808-199210

main78120-22270iGX81..5F..TWT;GX81,JZX81,LX80,MX83,SX80,YX80..ATM198808-199210

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-22500iLX80..DSL198808-199210

main78180-22860iLX80..TD198808-199210

main78180-2A050iSX80198808-199008

main78180-2A110iGX81..TWC198808-199210

main78180-2A150iGX81..HTWC198808-199210

main78180-2A170iGX81..SPC198808-199008

main78180-2A180iGX81..TWT198808-199008

main78180-2A200iYX80198808-199210

main78180-2A340iMX83198908-199210

main78180-2A370iSX80199008-199210

main78180-2A390iJZX81..TWC199008-199210

main78180-2A400iJZX81..TWT199008-199210

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-22060iGX81,JZX81,LX80,MX83,SX80,YX80198808-199104

sub78183-22061

main78183-22061iGX81,JZX81,LX80,MX83,SX80,YX80199104-199210

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-22230iGX81..SLT198810-199008

sub78184-22231

main78184-22230iGX81,YX80..HTWC,LPG,SPC,TWC198808-198810

sub78184-22231

main78184-22231iJZX81,MX83..SLTG199008-199210

main78184-22240iSX80198808-199008

main78184-22300iLX80198808-199210

sub78184-43010

main78184-22310iGX81..TWT198808-198810

sub78184-22311

main78184-22310iGX81..TWT198810-199008

sub78184-22311

main78184-22311iJZX81..TWT199008-199210

main78184-22350iGX81,YX80..HTWC,LPG,TWC198810-199008

sub78184-22351

main78184-22351iGX81,JZX81,SX80,YX80..KYO,SCM,SDX,SLT199008-199210

main78184-22360iGX81..TWT198810-199008

sub78184-22361

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-22040iLX80198808-199210

main78186-22060iGX81..TWT198808-199008

main78186-22070iGX81..SPC198908-199008

main78186-22080iJZX81..TWT199008-199210

9011906521

main90119-06521

91611F0812

main91611-F0812

9165140612

main91651-40612

91651A0814

main91651-A0814

9165640625

main91656-40625

9165640632

main91656-40632

9616000400

main96160-00400

9616000600

main96160-00600

18 parts on this diagram · 6 diagrams in section
