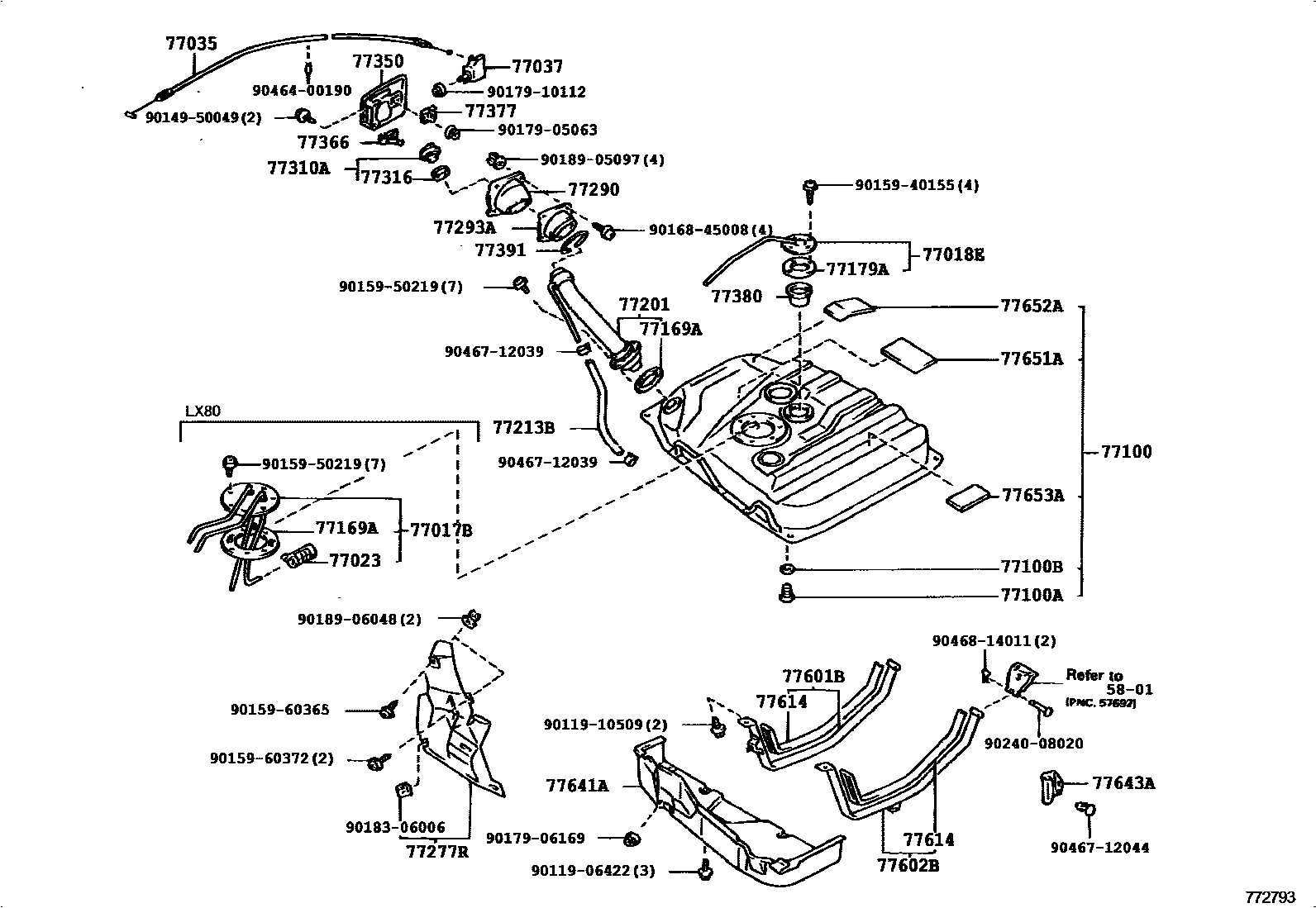

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

5801

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-22190iLX80198808-199210

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-22050iGX81,JZX81,LX80,MX83,SX80198808-199210

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-32010iLX80198808-199210

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-22190iGX81,JZX81,LX80,MX83,SX80198808-199210

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-22040iYX80198808-199210

main77037-22050iGX81,JZX81,LX80,MX83,SX80198808-199210

77100TANK ASSY, FUEL

main77001-22300iGX81,LX80,SX80..GT,KYO,SCM,SLTG198808-198904

sub77001-22301

main77001-22301iGX81,LX80,MX83,SX80..GT,KYO,SCM,SLTG198904-199003

sub77001-22420

main77001-22371iYX80198808-198908

main77001-22400iYX80198908-199002

sub77001-22401

main77001-22401iYX80199002-199210

main77001-22420iGX81..HTWC,TWC198808-199210

77100APLUG(FOR FUEL TANK)

main90341-20004iJZX81;GX81..HTWC,TWC198808-199210

77100BGASKET(FOR FUEL TANK)

main90430-20007iJZX81;GX81..HTWC,TWC198808-199210

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14010iLX80198808-199210

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-16010iGX81,JZX81,LX80,MX83,SX80198808-199210

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-22230iGX81,JZX81,MX83,SX80198808-199210

main77201-22260iYX80198808-199210

main77201-22290iLX80198808-199210

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-22080iGX81,JZX81,MX83,SX80198808-199210

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-22070iGX81,JZX81,LX80,MX83,SX80198808-199210

main77277-22080iYX80198808-199210

sub77277-22081

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-22040iGX81,JZX81,LX80,MX83,SX80198808-199210

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-22010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

77310ACAP ASSY, FUEL TANK

main77310-16011iGX81,JZX81,MX83,SX80198808-199210

sub77310-12140

main77310-32011iLX80198808-199210

77316GASKET, FUEL TANK CAP

main77316-16010iGX81,JZX81,LX80,MX83,SX80198808-199210

77350LID ASSY, FUEL FILLER OPENING

main77350-91603iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-91601iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iGX81,LX80,SX80,YX80198808-198903

main77377-22040iGX81,JZX81,LX80,MX83,SX80,YX80198903-199210

77380VALVE ASSY, FUEL CUT OFF

main77380-14020iGX81,JZX81,LX80,MX83,SX80198808-199210

77391RING, FUEL INLET BOX

main77391-14020iGX81,JZX81,LX80,MX83,SX80,YX80198811-199210

main77391-16010iGX81,LX80,SX80,YX80198808-198811

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-22100iGX81,JZX81,LX80,MX83,SX80198808-199210

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-22120iGX81,JZX81,LX80,MX83,SX80198808-199210

77614SEAT, FUEL TANK BAND

main77681-22010iGX81,JZX81,LX80,MX83,SX80198808-199210

77641APROTECTOR, FUEL TANK, NO.1

main77641-22070iGX81,JZX81,LX80,MX83,SX80198808-199210

main77641-91601iYX80198901-198908

77643APROTECTOR, FUEL TANK, NO.3

main77643-22060iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

77651ACUSHION, FUEL TANK, NO.1

main77651-22070iGX81,JZX81,LX80,MX83,SX80198808-199210

77652ACUSHION, FUEL TANK, NO.2

main77652-22060iGX81,JZX81,LX80,MX83,SX80198808-199210

77653ACUSHION, FUEL TANK, NO.3

main77653-22060iGX81,JZX81,LX80,MX83,SX80198808-199210

9011906422

main90119-06422

9011910509

main90119-10509

9014950049

main90149-50049

9015940155

main90159-40155

9015950219

main90159-50219

9015960365

main90159-60365

9015960372

main90159-60372

9016845008

main90168-45008

9017905063

main90179-05063

9017906169

main90179-06169

9017910112

main90179-10112

9018306006

main90183-06006

9018905097

main90189-05097

9018906048

main90189-06048

9024008020

main90240-08020

9046400190

main90464-00190

9046712039

main90467-12039

9046712044

main90467-12044

9046814011

main90468-14011

50 parts on this diagram · 10 diagrams in section
