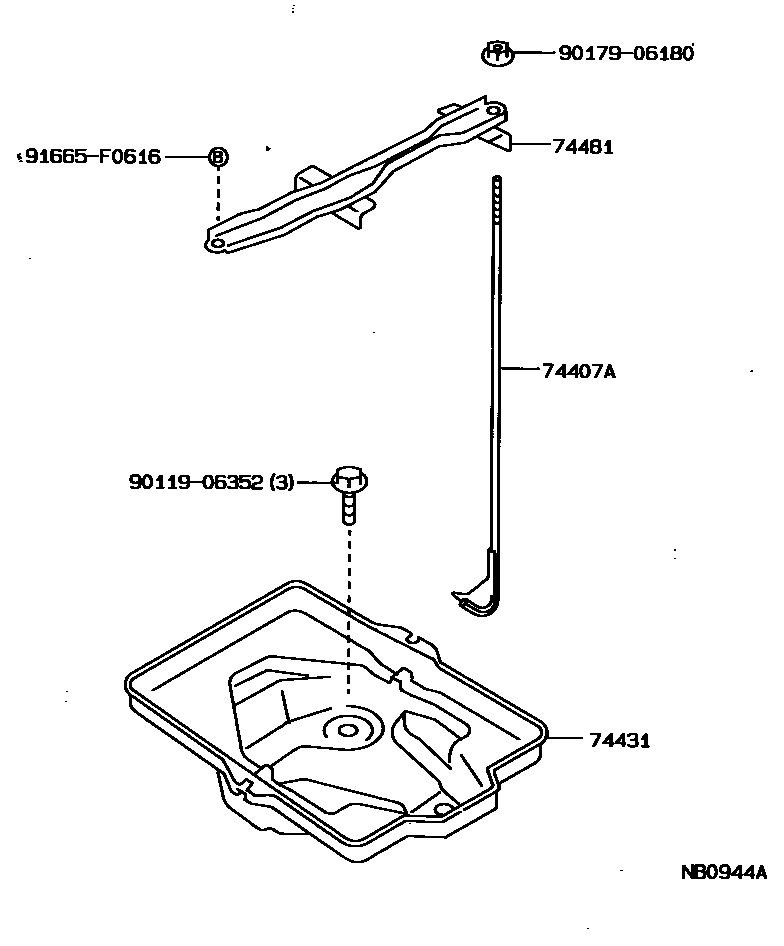

BATTERY CARRIER

0001 1 0003 1

74407ABOLT SUB-ASSY, BATTERY CLAMP

main74407-22040iGX81,MX83,SX80,YX80;JZX81,LX80..(SCM,SLT,SLTG)..(DSL,TWC)198808-199210

74431TRAY, BATTERY

main74431-22050iGX81..HTWC;GX81..5F..TWC198808-199210

main74431-22060iGX81..4FC..(SPC,TWC,TWT);GX81,LX80..5F..(GT,SCM)..(DSL,TWT);JZX81,MX83,SX80,YX80..CI,HTWC,LPG,TWC198808-199210

main74431-22070iLX80..KYO;LX80..SCM..TD198808-199210

main74431-22080iJZX81..TWT199008-199210

sub74431-12010

74481CLAMP, BATTERY HOLD DOWN

main74404-22230iGX81..HTWC;GX81..5F..TWC198808-199210

main74404-22240iJZX81..TWT199008-199210

main74404-22260iGX81..5F..TWC;GX81..SLT..HTWC198808-199210

main74404-22270iLX80198808-199210

main74404-22290iLX80..KYO;LX80..SCM..TD198808-199210

9011906352

main90119-06352

9017906180

main90179-06180

91665F0616

main91665-F0616

6 parts on this diagram · 2 diagrams in section
