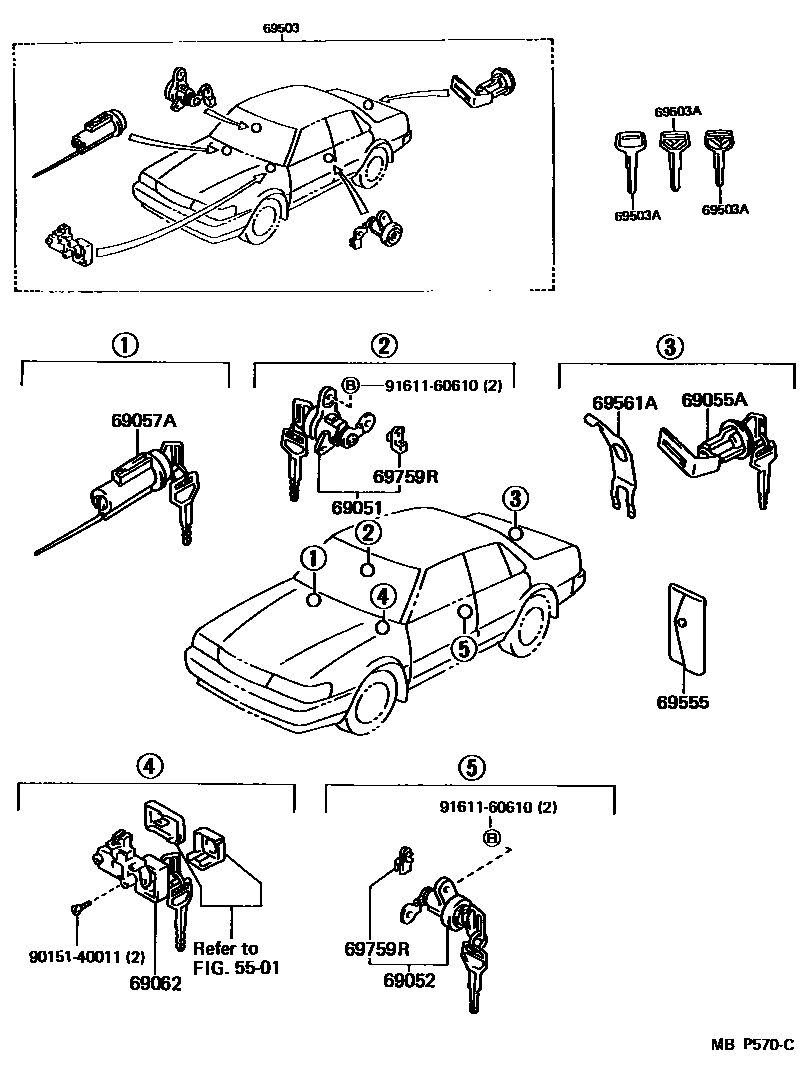

LOCK CYLINDER SET

0001 1 0002 1��(����� ������)

5501

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-23100iGX81..GT,SLT,SLTG199003-199210

main69051-23110iLX80,SX80..SCM..(CI,TD)199003-199210

main69051-23110iGX81,LX80,SX80..KYO,SCM,SDX199003-199210

main69051-91607iGX81,LX80,SX80,YX80..KYO,SCM,SDX198808-199210

main69051-91608iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

sub69051-23100

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-23100iGX81,LX80,SX80199003-199210

main69052-91608iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-23100iGX81,LX80,SX80..KYO,SCM,SDX199003-199210

main69055-23110iGX81..GT,SLT,SLTG199003-199210

main69055-23110iGX81..GT,SLT,SLTG199003-199210

main69055-91611iGX81,LX80,SX80,YX80..KYO,SCM,SDX198808-199210

main69055-91612iLX80,SX80..SCM..(CI,HTWC,TD)198903-199210

main69055-91612iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-22130iGX81,LX80,SX80199003-199210

main69057-91605iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

sub69057-22130

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-22090iGX81,LX80,SX80199003-199210

sub69056-17090

main69056-91606iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

sub69056-22090

69503CYLINDER SET, LOCK

main69005-23240iGX81,LX80,SX80..KYO,SCM,SDX199003-199210

main69005-23250iGX81..GT,SLT,SLTG199003-199210

main69005-23260iLX80,SX80..SCM..(CI,TD)199003-199210

main69005-91625iGX81,LX80,SX80,YX80..KYO,SCM,SDX198808-199210

main69005-91626iGX81,JZX81..GT,SLT,SLTG198808-199210

main69005-91652iLX80,SX80..SCM..(CI,HTWC,TD)198903-199210

69503AKEY, BLANK

main90999-00130iGX81,LX80,SX80199003-199210

sub90999-00153

main90999-00132iGX81,LX80,SX80199003-199210

sub90999-00174

main90999-00137iGX81,LX80,SX80199003-199210

sub90999-00165

main90999-00146iGX81,JZX81,LX80,SX80,YX80198808-199210

main90999-00147iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

sub90999-00112

main90999-00148iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

sub90999-00114

69555COVER, KEY

main69555-20010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69561-91602iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-22080iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

main69759-22090iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

9015140011

main90151-40011

9161160610

main91611-60610

13 parts on this diagram · 2 diagrams in section
