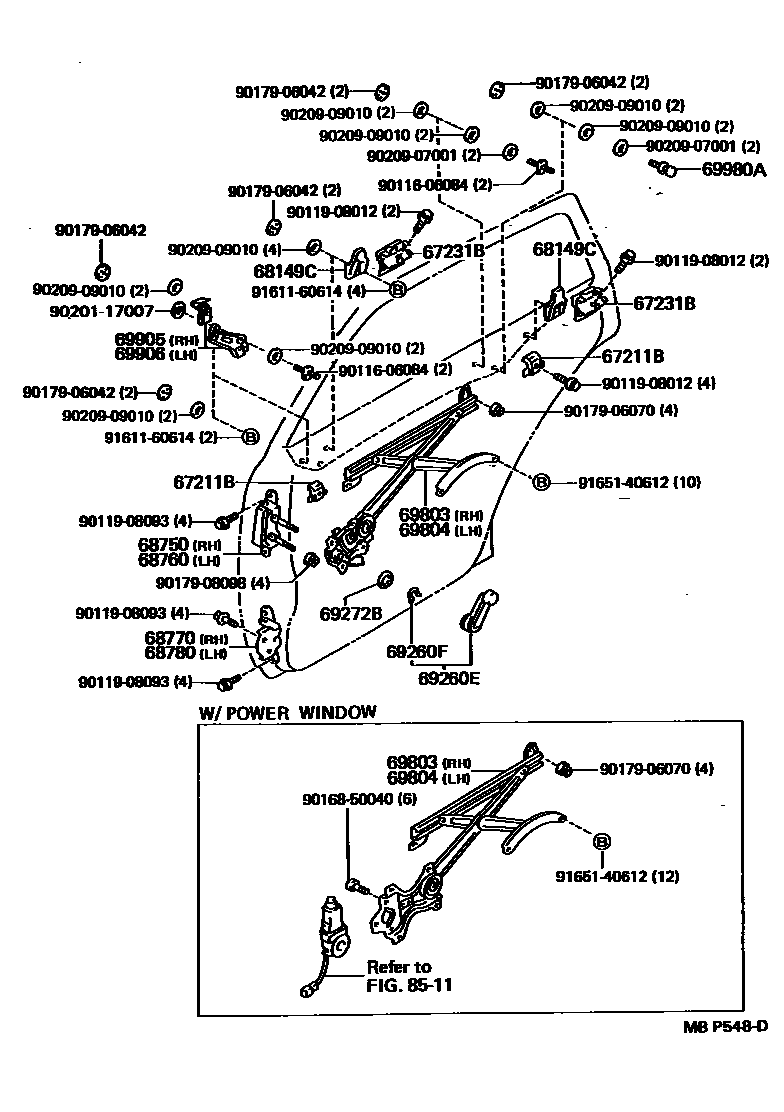

REAR DOOR WINDOW REGULATOR & HINGE

67211BSTOP, REAR DOOR WINDOW, UPPER

main67211-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

67231BSUPPORT, REAR DOOR TRIM

main67231-20030iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

68149CSTABILIZER, REAR DOOR GLASS MALE

main68149-20010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-91601iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-91601iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-20040iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-20040iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-22030-23iLX80,SX80,YX80..KYO199008-199210

MEDIUM GRAY,TRIM1#

sub69260-22030

main69260-22030-24iLX80,SX80,YX80..KYO198808-199008

DARK BLUE,TRIM8#

sub69260-22030

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002iLX80,SX80,YX80..KYO198808-199210

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69285-22010-08iLX80,SX80,YX80..KYO198808-199008

NATURAL WHITE,TRIM8#

sub69285-22010

main69285-22010-08iLX80,SX80,YX80..KYO199008-199210

NATURAL WHITE,TRIM1#

sub69285-22010

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-91602iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

main69830-91601iLX80,SX80,YX80..KYO198808-199210

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-91602iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

main69840-91601iLX80,SX80,YX80..KYO198808-199210

69905BRACKET SUB-ASSY, REAR DOOR GLASS, RH

main69905-91602iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

69906BRACKET SUB-ASSY, REAR DOOR GLASS, LH

main69906-91601iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

69980AROLLER ASSY, REAR DOOR GLASS GUIDE

main69980-20010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

8511

9011606084

main90116-06084

9011908012

main90119-08012

9011908093

main90119-08093

9016850040

main90168-50040

9017906042

main90179-06042

9017906070

main90179-06070

9017908098

main90179-08098

9020117007

main90201-17007

9020907001

main90209-07001

9020909010

main90209-09010

9161160614

main91611-60614

9165140612

main91651-40612

28 parts on this diagram · 1 diagram in section
