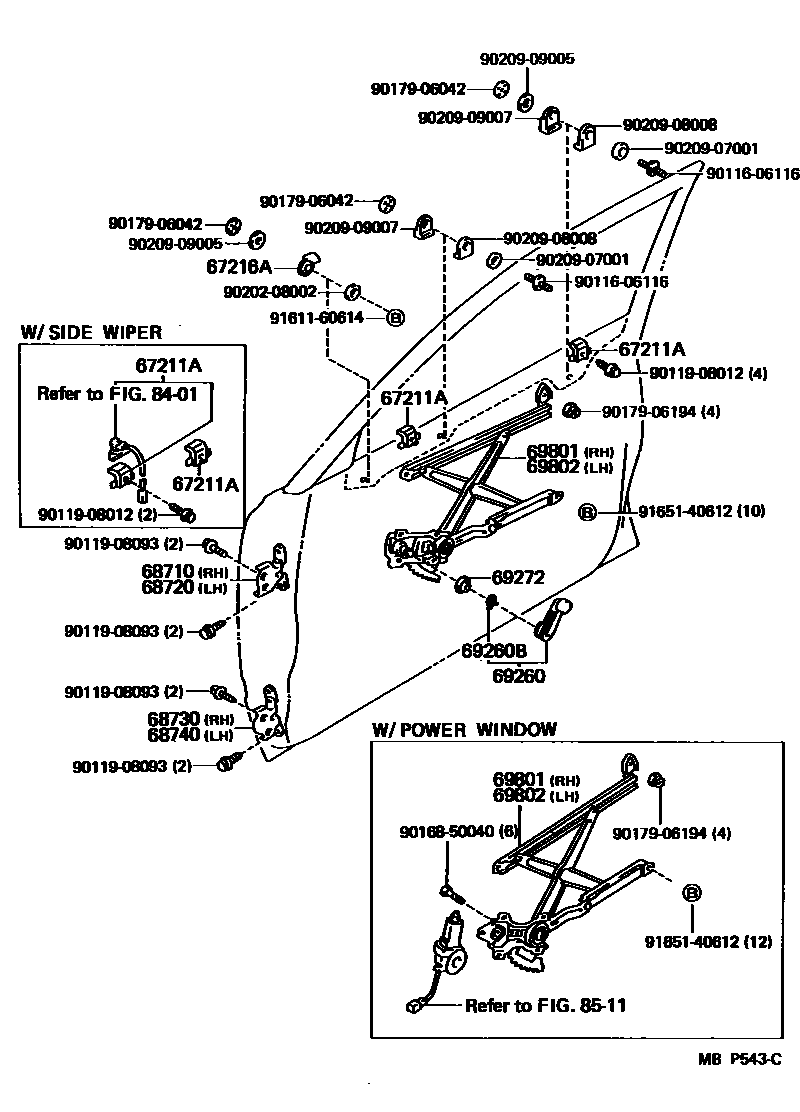

FRONT DOOR WINDOW REGULATOR & HINGE

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67205-91601iGX81,MX83..GT,SLT,SLTG198808-199210

main67206-91601iGX81,MX83..GT,SLT,SLTG198808-199210

main67211-22020iGX81,LX80,MX83,SX80,YX80198808-199210

67216ASTOPPER, FRONT DOOR GLASS, UPPER NO.2

main67216-30050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-22050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-22040iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-20080iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-20080iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-22030-23iLX80,SX80,YX80..KYO199008-199210

MEDIUM GRAY,TRIM1#

sub69260-22030

main69260-22030-24iLX80,SX80,YX80..KYO198808-199008

DARK BLUE,TRIM8#

sub69260-22030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iLX80,SX80,YX80..KYO198808-199210

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08iLX80,SX80,YX80..KYO198808-199008

NATURAL WHITE,TRIM8#

sub69285-22010

main69285-22010-08iLX80,SX80,YX80..KYO199008-199210

NATURAL WHITE,TRIM1#

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-22110iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

main69810-22220iLX80,SX80,YX80..KYO198808-199008

main69810-22260iLX80,SX80,YX80..KYO199008-199210

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-22110iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

main69820-22210iLX80,SX80,YX80..KYO198808-199008

main69820-22250iLX80,SX80,YX80..KYO199008-199210

8401

8511

9011606116

main90116-06116

9011908012

main90119-08012

9011908093

main90119-08093

9016850040

main90168-50040

9017906042

main90179-06042

9017906194

main90179-06194

9020208002

main90202-08002

9020907001

main90209-07001

9020908008

main90209-08008

9020909005

main90209-09005

9020909007

main90209-09007

9161160614

main91611-60614

9165140612

main91651-40612

26 parts on this diagram · 1 diagram in section
