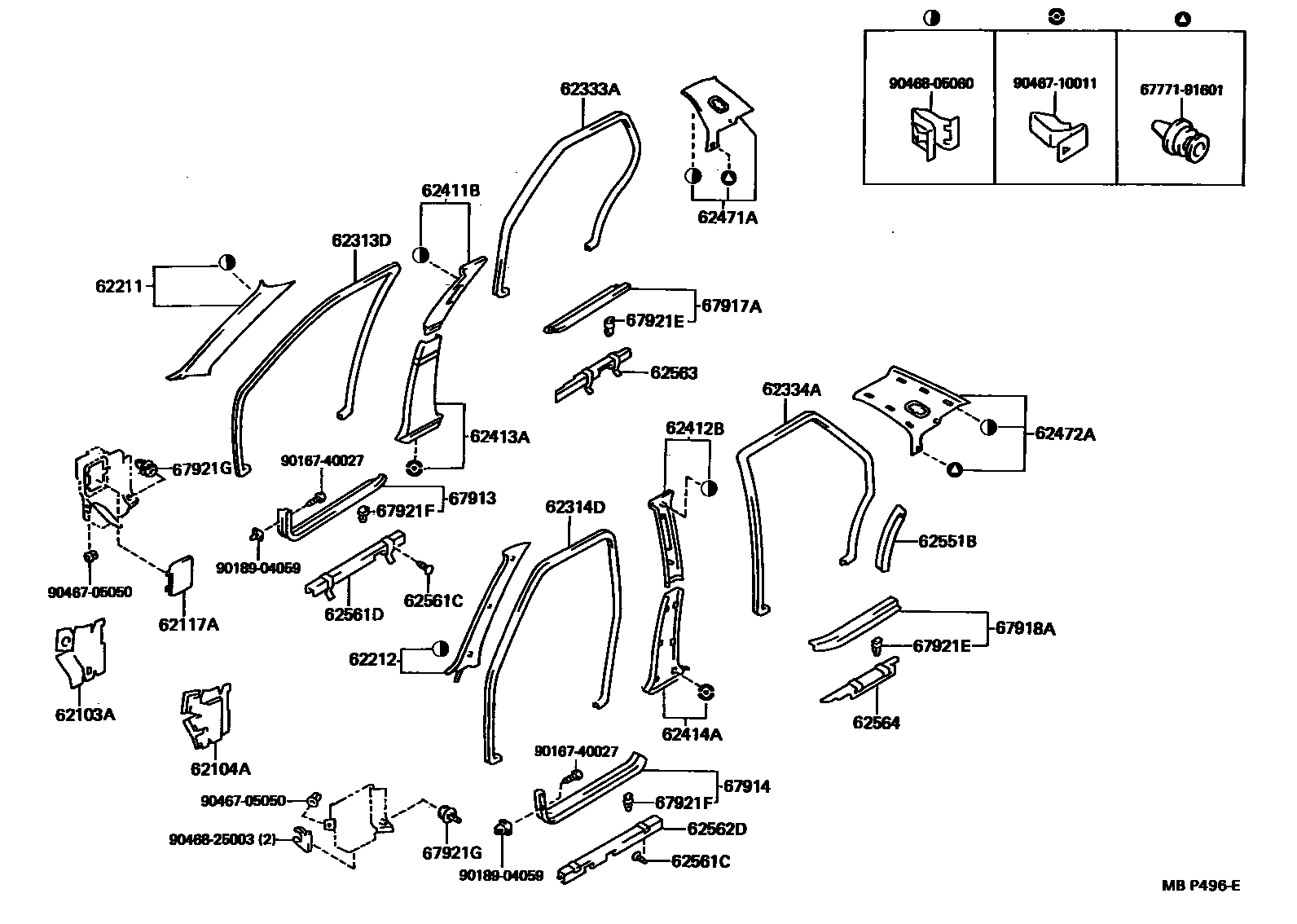

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62103AINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-22030iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

62104AINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-22030iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-22070-02iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199008

NEW MAROON,TRIM3#

main62117-22070-04iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

main62117-22070-06iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199008

SABLE,TRIM4#

main62117-22090-02iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199210

NEW MAROON,TRIM3#

main62117-22090-03iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

MEDIUM GRAY,TRIM1#

main62117-22090-06iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199210

SABLE,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62211-91609-02iGX81,LX80,SX80..SCM,SDX198808-199210

NEW MAROON,TRIM3#

main62211-91609-03iGX81,LX80,SX80,YX80..KYO,SCM,SDX199008-199210

MEDIUM GRAY,TRIM1#

main62211-91609-04iGX81,LX80,SX80,YX80..KYO,SCM,SDX198808-199008

DARK BLUE,TRIM8#

main62211-91609-06iGX81,LX80,SX80..SCM,SDX198808-199210

SABLE,TRIM4#

main62211-91610-02iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

NEW MAROON,TRIM3#

main62211-91610-03iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

MEDIUM GRAY,TRIM1#

main62211-91610-04iGX81,MX83..GT,SLT,SLTG198808-199008

DARK BLUE,TRIM8#

main62211-91610-06iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

SABLE,TRIM4#

62212GARNISH, FRONT PILLAR, LH

main62212-91610-02iGX81,LX80,SX80..SCM,SDX198808-199210

NEW MAROON,TRIM3#

main62212-91610-03iGX81,LX80,SX80,YX80..KYO,SCM,SDX199008-199210

MEDIUM GRAY,TRIM1#

main62212-91610-04iGX81,LX80,SX80,YX80..KYO,SCM,SDX198808-199008

DARK BLUE,TRIM8#

main62212-91610-06iGX81,LX80,SX80..SCM,SDX198808-199210

SABLE,TRIM4#

main62212-91611-02iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

NEW MAROON,TRIM3#

main62212-91611-03iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

MEDIUM GRAY,TRIM1#

main62212-91611-04iGX81,MX83..GT,SLT,SLTG198808-199008

DARK BLUE,TRIM8#

main62212-91611-06iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

SABLE,TRIM4#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-91601-02iGX81,LX80,SX80..SCM,SDX198808-198910

NEW MAROON,TRIM3#

sub62313-91604

main62313-91601-04iGX81,LX80,SX80,YX80..KYO,SCM,SDX198808-198910

DARK BLUE,TRIM8#

sub62313-91604

main62313-91601-06iGX81,LX80,SX80..SCM,SDX198808-198910

SABLE,TRIM4#

sub62313-91604

main62313-91602-02iGX81,MX83..GT,SLT,SLTG198808-198910

NEW MAROON,TRIM3#

sub62313-91605

main62313-91602-04iGX81,MX83..GT,SLT,SLTG198808-198910

DARK BLUE,TRIM8#

sub62313-91605

main62313-91602-06iGX81,MX83..GT,SLT,SLTG198808-198910

SABLE,TRIM4#

sub62313-91605

main62313-91604-02iGX81,LX80,SX80..SCM,SDX198910-199210

NEW MAROON,TRIM3#

main62313-91604-03iGX81,LX80,SX80,YX80..KYO,SCM,SDX199008-199210

MEDIUM GRAY,TRIM1#

main62313-91604-04iGX81,LX80,SX80,YX80..KYO,SCM,SDX198910-199008

DARK BLUE,TRIM8#

main62313-91604-06iGX81,LX80,SX80..SCM,SDX198910-199210

SABLE,TRIM4#

main62313-91605-02iGX81,JZX81,MX83..GT,SLT,SLTG198910-199210

NEW MAROON,TRIM3#

main62313-91605-03iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

MEDIUM GRAY,TRIM1#

main62313-91605-04iGX81,MX83..GT,SLT,SLTG198910-199008

DARK BLUE,TRIM8#

main62313-91605-06iGX81,JZX81,MX83..GT,SLT,SLTG198910-199210

SABLE,TRIM4#

62314DTRIM, FRONT DOOR OPENING, LH

main62314-91601-02iGX81,LX80,SX80..SCM,SDX198808-198908

NEW MAROON,TRIM3#

sub62314-91603

main62314-91601-04iGX81,LX80,SX80,YX80..KYO,SCM,SDX198808-198910

DARK BLUE,TRIM8#

sub62314-91603

main62314-91601-06iGX81,LX80,SX80..SCM,SDX198808-198910

SABLE,TRIM4#

sub62314-91603

main62314-91602-02iGX81,MX83..GT,SLT,SLTG198808-198910

NEW MAROON,TRIM3#

sub62314-91604

main62314-91602-04iGX81,MX83..GT,SLT,SLTG198808-198910

DARK BLUE,TRIM8#

sub62314-91604

main62314-91602-06iGX81,MX83..GT,SLT,SLTG198808-198910

SABLE,TRIM4#

sub62314-91604

main62314-91603-02iGX81,LX80,SX80..SCM,SDX198910-199210

NEW MAROON,TRIM3#

main62314-91603-03iGX81,LX80,SX80,YX80..KYO,SCM,SDX199008-199210

MEDIUM GRAY,TRIM1#

main62314-91603-04iGX81,LX80,SX80,YX80..KYO,SCM,SDX198910-199008

DARK BLUE,TRIM8#

main62314-91603-06iGX81,LX80,SX80..SCM,SDX198910-199210

SABLE,TRIM4#

main62314-91604-02iGX81,JZX81,MX83..GT,SLT,SLTG198910-199210

MEW MAROON,TRIM3#

main62314-91604-03iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

MEDIUM GRAY,TRIM1#

main62314-91604-04iGX81,MX83..GT,SLT,SLTG198910-199008

DARK BLUE,TRIM8#

main62314-91604-06iGX81,JZX81,MX83..GT,SLT,SLTG198910-199210

SABLE,TRIM4#

62333ATRIM, REAR DOOR OPENING, RH

main62333-91604-02iGX81,LX80,SX80..SCM,SDX198808-199210

NEW MAROON,TRIM3#

main62333-91604-03iGX81,LX80,SX80,YX80..KYO,SCM,SDX199008-199210

MEDIUM GRAY,TRIM1#

main62333-91604-04iGX81,LX80,SX80,YX80..KYO,SCM,SDX198808-199008

DARK BLUE,TRIM8#

main62333-91604-06iGX81,LX80,SX80..SCM,SDX198808-199210

SABLE,TRIM4#

main62333-91605-02iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

NEW MAROON,TRIM3#

main62333-91605-03iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

MEDIUM GRAY,TRIM1#

main62333-91605-04iGX81,MX83..GT,SLT,SLTG198808-199008

DARK BLUE,TRIM8#

main62333-91605-06iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

SABLE,TRIM4#

main62333-91605-06iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

SABLE,SABLE,TRIM4#

62334ATRIM, REAR DOOR OPENING, LH

main62334-91601-02iGX81,LX80,SX80..SCM,SDX198808-199210

NEW MAROON,TRIM3#

main62334-91601-03iGX81,LX80,SX80,YX80..KYO,SCM,SDX199008-199210

MEDIUM GRAY,TRIM1#

main62334-91601-04iGX81,LX80,SX80,YX80..KYO,SCM,SDX198808-199008

DARK BLUE,TRIM8#

main62334-91601-06iGX81,LX80,SX80..SCM,SDX198808-199210

SABLE,TRIM4#

main62334-91602-02iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

NEW MAROON,TRIM3#

main62334-91602-03iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

MEDIUM GRAY,TRIM1#

main62334-91602-04iGX81,MX83..GT,SLT,SLTG198808-199008

DARK BLUE,TRIM8#

main62334-91602-06iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

SABLE,TRIM4#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-91601-02iGX81,LX80,SX80..SCM,SDX198808-199210

NEW MAROON,TRIM3#

main62411-91601-03iGX81,LX80,SX80,YX80..KYO,SCM,SDX199008-199210

MEDIUM GRAY,TRIM1#

main62411-91601-04iGX81,LX80,SX80,YX80..KYO,SCM,SDX198808-199008

DARK BLUE,TRIM8#

main62411-91601-06iGX81,LX80,SX80..SCM,SDX198808-199210

SABLE,TRIM4#

main62411-91602-02iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

NEW MAROON,TRIM3#

main62411-91602-03iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

MEDIUM GRAY,TRIM1#

main62411-91602-04iGX81,MX83..GT,SLT,SLTG198808-199008

DARK BLUE,TRIM8#

main62411-91602-06iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

SABLE,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-91601-02iGX81,LX80,SX80..SCM,SDX198808-199210

NEW MAROON,TRIM3#

main62412-91601-03iGX81,LX80,SX80,YX80..KYO,SCM,SDX199008-199210

MEDIUM GRAY,TRIM1#

main62412-91601-04iGX81,LX80,SX80,YX80..KYO,SCM,SDX198808-199008

DARK BLUE,TRIM8#

main62412-91601-06iGX81,LX80,SX80..SCM,SDX198808-199210

SABLE,TRIM4#

main62412-91602-02iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

NEW MAROON,TRIM3#

main62412-91602-03iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

MEDIUM GRAY,TRIM1#

main62412-91602-04iGX81,MX83..GT,SLT,SLTG198808-199008

DARK BLUE,TRIM8#

main62412-91602-06iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

SABLE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-91601-02iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

NEW MAROON,TRIM3#

main62413-91601-03iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

MEDIUM GRAY,TRIM1#

main62413-91601-04iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

main62413-91601-06iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

SABLE,TRIM4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-91601-02iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

NEW MAROON,TRIM3#

main62414-91601-03iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

MEDIUM GRAY,TRIM1#

main62414-91601-04iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

main62414-91601-06iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

SABLE,TRIM4#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-23010-02iGX81,LX80,SX80..SCM,SDX199008-199210

NEW MAROON,TRIM3#

main62470-23010-03iGX81,LX80,SX80..SCM,SDX199008-199210

MEDIUM GRAY,TRIM1#

main62470-23010-06iGX81,LX80,SX80..SCM,SDX199008-199210

SABLE,TRIM4#

main62470-91605-03iLX80,SX80,YX80..KYO199008-199210

MEDIUM GRAY,TRIM1#

main62470-91605-04iGX81,LX80,SX80,YX80..KYO,SCM,SDX198808-199008

LIGHT BLUE,TRIM8#

main62470-91605-06iGX81,LX80,SX80..SCM,SDX198808-199008

LIGHT SABLE,TRIM3#,4#

main62470-91606-02iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

NEW MAROON,TRIM3#

main62470-91606-03iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

MEDIUM GRAY,TRIM1#

main62470-91606-04iGX81,MX83..GT,SLT,SLTG198808-199008

LIGHT BLUE,TRIM8#

main62470-91606-06iGX81,MX83..GT,SLT,SLTG198808-199008

LIGHT SABLE,TRIM3#,4#

main62470-91606-16iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

SABLE,TRIM4#

62472AGARNISH, ROOF SIDE, INNER LH

main62480-23010-02iGX81,LX80,SX80..SCM,SDX199008-199210

NEW MAROON,TRIM3#

main62480-23010-03iGX81,LX80,SX80..SCM,SDX199008-199210

MEDIUM GRAY,TRIM1#

main62480-23010-06iGX81,LX80,SX80..SCM,SDX199008-199210

SABLE,TRIM4#

main62480-91605-03iLX80,SX80,YX80..KYO199008-199210

MEDIUM GRAY,TRIM1#

main62480-91605-04iGX81,LX80,SX80,YX80..KYO,SCM,SDX198808-199008

LIGHT BLUE,TRIM8#

main62480-91605-06iGX81,LX80,SX80..SCM,SDX198808-199008

LIGHT SABLE,TRIM3#,4#

main62480-91606-02iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

NEW MAROON,TRIM3#

main62480-91606-03iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

MEDIUM GRAY,TRIM1#

main62480-91606-04iGX81,MX83..GT,SLT,SLTG198808-199008

LIGHT BLUE,TRIM8#

main62480-91606-06iGX81,MX83..GT,SLT,SLTG198808-199008

LIGHT SABLE,TRIM3#,4#

main62480-91606-16iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

SABLE,TRIM4#

62551BGARNISH, REAR SEAT SIDE

main62551-22040iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)

main90467-08056-01iLX80,SX80,YX80..KYO198808-199008

BLACK,TRIM8#

sub90467-08056

main90467-08056-01iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199008

BLACK,TRIM3#,4#,8#

sub90467-08056

main90467-08056-01iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199210

BLACK,TRIM1#,3#,4#

sub90467-08056

main90467-08056-01iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199210

BLACK,TRIM1#

sub90467-08056

62561DPROTECTOR, ROCKER PANEL, INNER FRONT RH

main62561-22050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

62562DPROTECTOR, ROCKER PANEL, INNER FRONT LH

main62562-22050iGX81,LX80,SX80,YX80198808-199210

main62562-22070iLX80,YX80;SX80..KYO198810-199210

62563PROTECTOR, ROCKER PANEL, INNER REAR RH

main62563-22030iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

62564PROTECTOR, ROCKER PANEL, INNER REAR LH

main62564-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

67913PLATE, FRONT DOOR SCUFF, RH

main67913-22070-02iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

NEW MAROON,TRIM3#

sub67913-22070

main67913-22070-03iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

MEDIUM GRAY,TRIM1#

sub67913-22070

main67913-22070-04iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

sub67913-22070

main67913-22070-06iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

SABLE,TRIM4#

sub67913-22070

67914PLATE, FRONT DOOR SCUFF, LH

main67914-22050-02iGX81,JZX81,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

NEW MAROON,TRIM3#

sub67914-22050

main67914-22050-03iGX81,JZX81,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199210

MEDIUM GRAY,TRIM1#

sub67914-22050

main67914-22050-04iGX81,LX80,SX80,YX80198808-199008

DARK BLUE,TRIM8#

sub67914-22050

main67914-22050-06iGX81,JZX81,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

SABLE,TRIM4#

sub67914-22050

main67914-22070-02iLX80..SCM198810-199210

NEW MAROON,TRIM3#

sub67914-22070

main67914-22070-03iLX80,YX80;SX80..KYO199008-199210

MEDIUM GRAY,TRIM1#

sub67914-22070

main67914-22070-04iLX80,YX80;SX80..KYO198810-199008

DARK BLUE,TRIM8#

sub67914-22070

main67914-22070-06iLX80..SCM198810-199210

SABLE,TRIM4#

sub67914-22070

67917APLATE, REAR DOOR SCUFF, RH

main67917-22070-02iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

NEW MAROON,TRIM3#

sub67917-22070

main67917-22070-03iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

MEDIUM GRAY,TRIM1#

sub67917-22070

main67917-22070-04iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

sub67917-22070

main67917-22070-06iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

SABLE,TRIM4#

sub67917-22070

67918APLATE, REAR DOOR SCUFF, LH

main67918-22070-02iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

NEW MAROON,TRIM3#

sub67918-22070

main67918-22070-03iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

MEDIUM GRAY,TRIM1#

sub67918-22070

main67918-22070-04iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

sub67918-22070

main67918-22070-06iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

SABLE,TRIM4#

sub67918-22070

67921ERETAINER, REAR DOOR SCUFF PLATE

main67921-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

67921FRETAINER, FRONT DOOR SCUFF PLATE

main67921-22010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

FRONT

main67921-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

REAR

67921GRETAINER, FRONT DOOR SCUFF PLATE

main67921-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

6777191601WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-91601

9016740027

main90167-40027

9018904059

main90189-04059

9046705050

main90467-05050

9046710011

main90467-10011

9046805060

main90468-05060

9046825003

main90468-25003

35 parts on this diagram · 1 diagram in section
