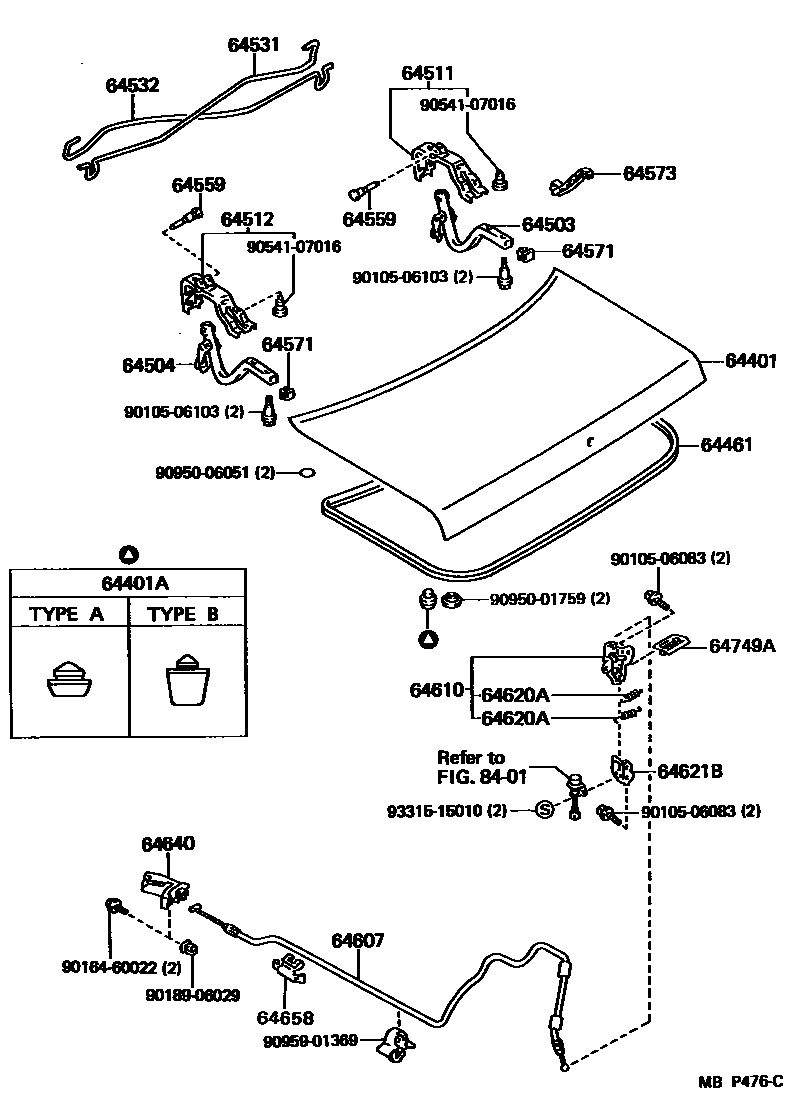

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-91622iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

main64401-91623iMX83;GX81,JZX81..TWT198808-199210

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06076iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

sub90541-06056

main90541-09056iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

sub90541-09068

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-91606iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-91605iGX81,LX80,SX80,YX80198808-199210

main64503-91607iGX81,JZX81,MX83..(GT,SLTG)..(TWC,TWT)198808-199210

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-91605iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

main64503-91607iGX81,JZX81,MX83..(GT,SLTG)..(TWC,TWT)198808-199210

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-91603iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-91603iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-91614iGX81,JZX81,LX80,SX80,YX80..GT,KYO,SCM,SDX,SLT198808-199210

main64531-91615iGX81,JZX81..TWT198808-199210

main64531-91620iGX81,JZX81,MX83..SLTG198808-199210

main64531-91621iGX81,JZX81..TWT198808-199210

main64531-91621iJZX81,MX83..SLTG198908-199210

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-91615iGX81,JZX81,LX80,SX80,YX80..GT,KYO,SCM,SDX,SLT198808-199210

main64532-91616iGX81,JZX81..TWT198808-199210

main64532-91621iGX81,JZX81,MX83..SLTG198808-199210

main64532-91622iGX81,JZX81..TWT198808-199210

main64532-91622iJZX81,MX83..SLTG198908-199210

64559PIN, LUGGAGE DOOR HINGE

main64559-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

64571COVER, LUGGAGE COMPARTMENT DOOR HINGE

main64571-22020iGX81,JZX81..TWT198808-199210

main64571-30020iGX81,JZX81,LX80,SX80,YX80..GT,KYO,SCM,SDX,SLT198808-199210

64573PROTECTOR, LUGGAGE DOOR OPENER CABLE, RH

main64573-22010iGX81,JZX81,LX80,MX83,SX80,YX80..KYO,SLTG198808-199210

main64573-22020iGX81,JZX81,LX80,SX80..GT,SCM,SDX,SLT198808-199210

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-22330iGX81,LX80,SX80,YX80198808-198809

sub64607-91601

main64607-91601iGX81,JZX81,LX80,MX83,SX80,YX80198809-199210

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-22110iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-05001iGX81,LX80,MX83,SX80,YX80198808-199008

main90506-05002iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

WHITE

main90506-06009iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

GREEN

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-22040iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

sub64621-16020

64640OPENER ASSY, LUGGAGE DOOR LOCK

main64640-22210-02iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

NEW MAROON,TRIM3#

sub64640-22210

main64640-22210-03iGX81,JZX81,LX80,MX83,SX80199008-199210

MEDIUM GRAY,TRIM1#

sub64640-22210

main64640-22210-04iGX81,LX80,MX83,SX80198808-199008

DARK BLUE,TRIM8#

sub64640-22210

main64640-22210-06iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

SABLE,TRIM4#

sub64640-22210

main64640-22230iYX80198808-198908

main64640-22230-03iYX80199008-199210

MEDIUM GRAY,TRIM1#

sub64640-22230

main64640-22230-04iYX80198908-199008

DARK BLUE,TRIM8#

sub64640-22230

64658BRACKET, LUGGAGE CONTROL CABLE, RH

main64658-22010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-91601iLX80,SX80,YX80..KYO198808-199210

8401

9010506083

main90105-06083

9010506103

main90105-06103

9016460022

main90164-60022

9018906029

main90189-06029

9054107016

main90541-07016

9095001759

main90950-01759

9095006051

main90950-06051

9095901369

main90959-01369

9331515010

main93315-15010

29 parts on this diagram · 1 diagram in section
