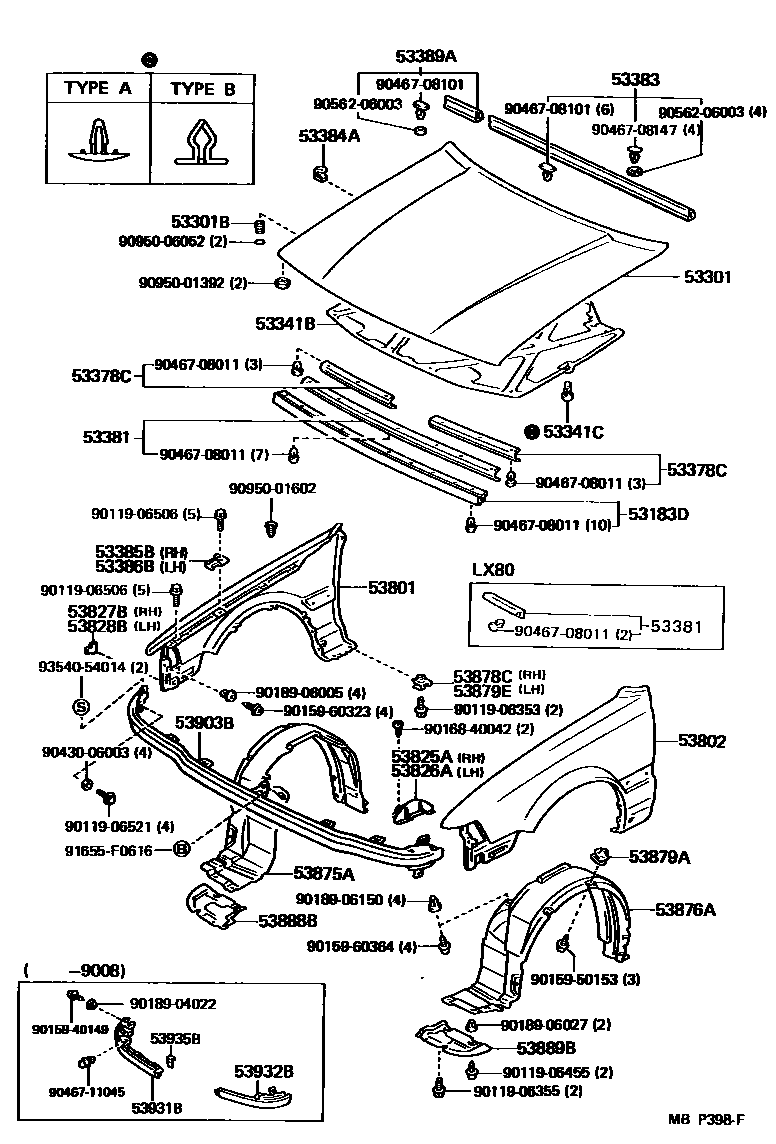

HOOD & FRONT FENDER

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-23020iGX81,JZX81,LX80,MX83,SX80,YX80199008-199011

sub53183-23030

main53183-23030iGX81,JZX81,LX80,MX83,SX80,YX80199011-199210

main53183-91606iGX81,LX80,MX83,SX80,YX80198808-199008

53301HOOD SUB-ASSY

main53301-91605iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53301BCUSHION, HOOD BUMPER

main90541-15004iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53341BINSULATOR, HOOD

main53341-22090iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53341CCLIP(FOR HOOD INSULATOR)

main90467-09006iGX81,JZX81,LX80..TD,TWT198808-199210

main90467-13009iGX81,JZX81,LX80..TD,TWT198808-199210

53378CSEAL, HOOD AIR INTAKE DUCT

main53378-22020iLX80198808-199210

main53379-22010iLX80198808-199210

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-22080iGX81,JZX81,MX83,SX80,YX80198808-199210

main53381-22090iLX80198808-199210

53383SEAL, HOOD TO COWL TOP

main53383-22050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

main53383-22060iGX81,LX80,SX80,YX80198808-198901

53384ABUMPER, FENDER TO HOOD

main53384-24010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53386-20020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53385-20020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53389ASEAL, HOOD TO COWL TOP, NO.2

main53389-22010iGX81,LX80,SX80,YX80198808-198901

53801FENDER SUB-ASSY, FRONT RH

main53801-91629iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

main53801-91630iLX80,SX80,YX80..KYO198808-199210

main53801-91631iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

sub53801-91629

main53801-91632iLX80,SX80,YX80..KYO198808-199210

53802FENDER SUB-ASSY, FRONT LH

main53802-91629iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

main53802-91630iLX80,SX80,YX80..KYO198808-199210

sub53802-91632

main53802-91631iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

main53802-91632iLX80,SX80,YX80..KYO198808-199210

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-23020iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

main53825-91602iGX81,LX80,MX83,SX80,YX80198808-199008

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-23020iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

main53826-91602iGX81,LX80,MX83,SX80,YX80198808-199008

53827BPROTECTOR, FRONT FENDER SIDE PANEL

main53827-23020iGX81,JZX81,LX80,MX83,SX80,YX80199008-199012

sub53827-23030

main53827-23030iGX81,JZX81,LX80,MX83,SX80,YX80199012-199210

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53827-23020iGX81,JZX81,LX80,MX83,SX80,YX80199008-199012

sub53827-23030

main53827-23030iGX81,JZX81,LX80,MX83,SX80,YX80199012-199210

53875ALINER, FRONT FENDER, RH

main53875-22050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53876ALINER, FRONT FENDER, LH

main53876-22050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53878CSPACER, FRONT FENDER

main53878-14020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53879ARETAINER, FRONT FENDER LINER

main53879-22030iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53879ESPACER, FRONT FENDER, LH

main53878-14020iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

53888BSEAL, FRONT FENDER SPLASH SHIELD, RH NO.2

main53888-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53889BSEAL, FRONT FENDER SPLASH SHIELD, LH NO.2

main53889-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53903BPANEL SUB-ASSY, FRONT END

main53903-23020iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

53931BPANEL, FRONT END, RH

main53903-91604iGX81,LX80,MX83,SX80,YX80198808-199008

53932BPANEL, FRONT END, LH

main53904-91604iGX81,LX80,MX83,SX80,YX80198808-199008

53935BPROTECTOR, FRONT END PANEL

main53935-91601iGX81,LX80,MX83,SX80,YX80198808-199008

9011906353

main90119-06353

9011906355

main90119-06355

9011906455

main90119-06455

9011906506

main90119-06506

9011906521

main90119-06521

9015940149

main90159-40149

9015950153

main90159-50153

9015960323

main90159-60323

9015960364

main90159-60364

9016840042

main90168-40042

9018904022

main90189-04022

9018906005

main90189-06005

9018906027

main90189-06027

9018906150

main90189-06150

9043006003

main90430-06003

9046708011

main90467-08011

9046708101

main90467-08101

9046708147

main90467-08147

9046711045

main90467-11045

9056206003

main90562-06003

9095001392

main90950-01392

9095001602

main90950-01602

9095006052

main90950-06052

91655F0616

main91655-F0616

9354054014

main93540-54014

54 parts on this diagram · 1 diagram in section
