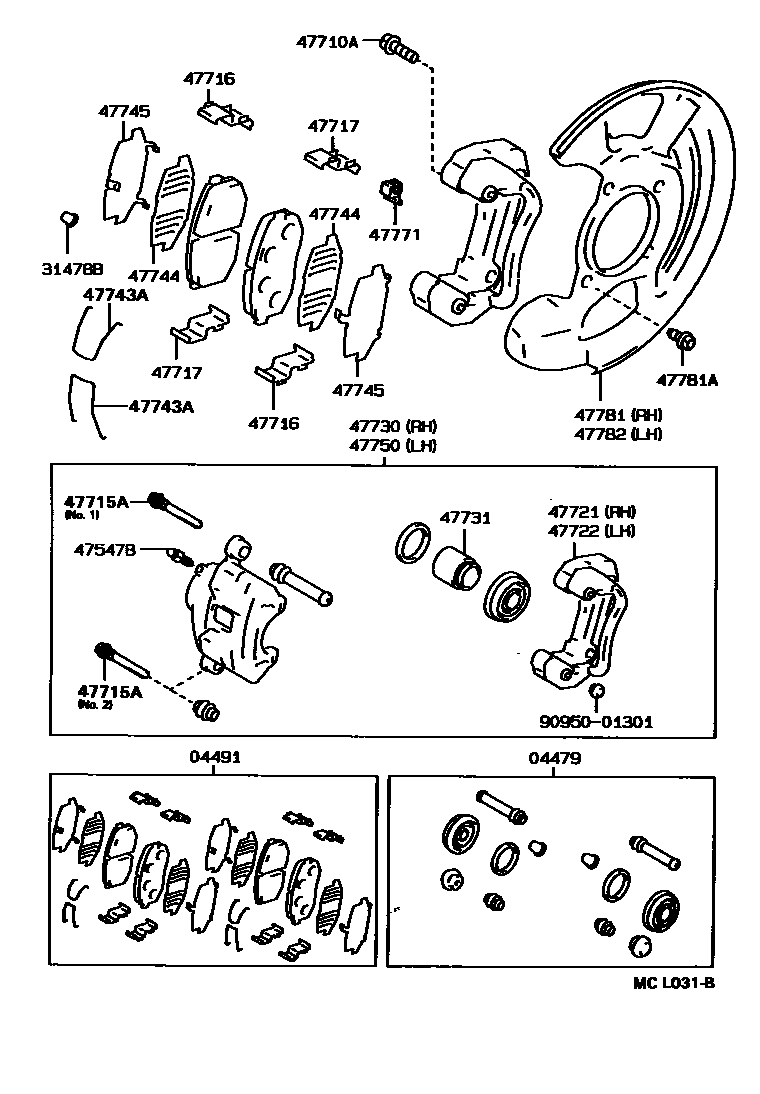

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-22020iJZX81..TWC;GX81,LX80,MX83,SX80,YX80198808-199210

main04479-22050iJZX81..TWT199008-199210

04491PAD KIT, DISC BRAKE, FRONT

main04491-22260iJZX81..TWC;GX81,MX83..GT,SLTG198808-199210

sub04491-22340

main04491-22260iGX81..SLT198808-199105

sub04491-22340

main04491-22290iGX81,LX80,SX80,YX80..KYO,SCM,SDX,SLT198808-199105

sub04491-22340

main04491-22330iJZX81..TWT199008-199202

sub04491-22331

main04491-22340iGX81,LX80,SX80,YX80199105-199210

sub04465-22060

main04491-22350iJZX81..TWT199202-199210

sub04465-22060

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-35020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12058iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22010iGX81,LX80,MX83,SX80,YX80198808-199001

main47715-22010iJZX81..TWC;GX81,MX83..GT,SLTG199001-199210

main47715-22030iJZX81..TWC;GX81,MX83..GT,SLTG199001-199210

main47715-22040iJZX81..TWT199008-199210

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-35010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-35010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-22080iJZX81..TWC;GX81,MX83..GT,SLTG198808-199210

main47721-22090iGX81,LX80,SX80,YX80..KYO,SCM,SDX,SLT198808-199210

main47721-22120iJZX81..TWT199008-199210

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-22060iJZX81..TWC;GX81,MX83..GT,SLTG198808-199210

main47722-22070iGX81,LX80,SX80,YX80..KYO,SCM,SDX,SLT198808-199210

main47722-22080iJZX81..TWT199008-199210

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22180iJZX81..TWC;GX81,MX83..GT,SLTG198808-199210

sub47730-22181

main47730-22190iGX81,LX80,SX80,YX80..KYO,SCM,SDX,SLT198808-199210

sub47730-22191

main47730-22220iJZX81..TWT199008-199210

47731PISTON, FRONT DISC BRAKE

main47731-35020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-22010iGX81,LX80,SX80,YX80..KYO,SCM,SDX,SLT198808-199105

main47743-22020iJZX81..TWT199202-199210

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-22110iJZX81..TWT199202-199210

main47744-35030iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-35030iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22180iJZX81..TWC;GX81,MX83..GT,SLTG198808-199210

sub47750-22181

main47750-22190iGX81,LX80,SX80,YX80..KYO,SCM,SDX,SLT198808-199210

sub47750-22191

main47750-22220iJZX81..TWT199008-199210

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-22030iGX81,JZX81,LX80,MX83,SX80,YX80198906-199210

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-22020iGX81..TWT198808-199210

main47703-22020iJZX81..GT,SLTG;GX81,MX83..SLTG198808-199210

main47703-22030iGX81..SLT198808-199210

main47781-22110iGX81..SPC198908-199008

main47781-22110iGX81..TWT;JZX81..SLT198808-199210

main47781-22130iGX81,LX80,SX80,YX80..KYO,SCM,SDX,SLT198808-199210

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-08696iGX81..SPC198908-199008

sub91611-G0812

main90119-08696iJZX81..GT,SLTG;GX81,MX83..SLTG198808-199210

sub91611-G0812

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-22020iGX81..TWT198808-199210

main47704-22020iJZX81..GT,SLTG;GX81,MX83..SLTG198808-199210

main47704-22030iGX81..SLT198808-199210

main47782-22110iGX81..TWT;JZX81..SLT198808-199210

main47782-22110iGX81..SPC198908-199008

main47782-22130iGX81,LX80,SX80,YX80..KYO,SCM,SDX,SLT198808-199210

9095001301

main90950-01301
