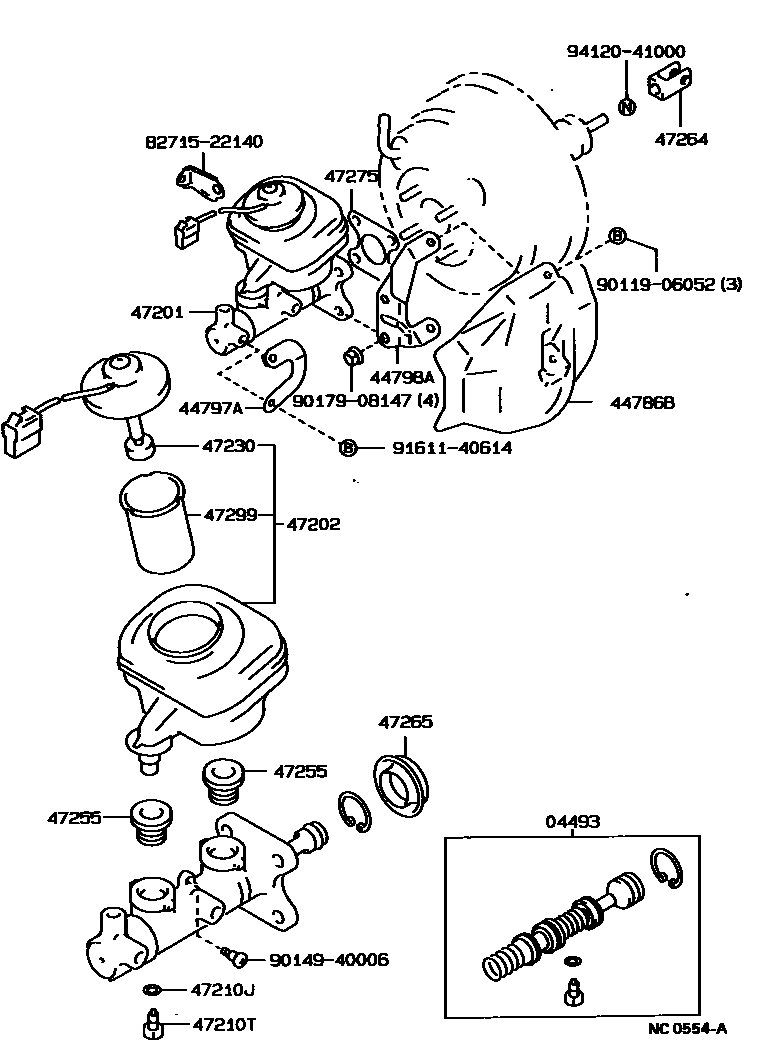

BRAKE MASTER CYLINDER

0001 1 0002 1��(ESC) 0004 1

04493CYLINDER KIT, BRAKE MASTER

main04493-22150iJZX81..SLT;GX81..GT,SLT198808-199210

main04493-22150iGX81..SPC198908-199008

main04493-22180iLX80,SX80,YX80..KYO198808-199210

*42

main04493-22190iLX80,SX80,YX80..KYO198808-199210

sub04493-43030

main04493-22200iGX81..GT,SLT198908-199210

main04493-22200iGX81,MX83..SLTG198908-199008

main04493-22210iGX81,LX80,SX80..SCM,SDX198910-199210

sub04493-43010

main04493-22220iJZX81..SLT199008-199210

main04493-30180iGX81,LX80,SX80..SCM,SDX198808-198910

sub04493-22210

main04493-30200iGX81..GT,SLT198808-198908

44786BINSULATOR, BRAKE MASTER CYLINDER HEAT

main44786-22050iGX81..TWT198808-199008

main44786-22060iSX80,YX80..KYO198808-199210

main44786-22070iJZX81..TWT199008-199210

44797ABRACKET, HEAT INSULATOR, NO.2

main44797-22020iGX81,JZX81..TWT198808-199210

44798ABRACKET, HEAT INSULATOR(FOR BRAKE MASTER CYLINDER)

main44798-22050iGX81,JZX81..TWT198808-199210

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47200-2A680iLX80,SX80,YX80..KYO198808-199210

*42

main47201-22580iGX81..SLT198808-198908

main47201-22600iJZX81..SLT;GX81..GT,SLT198808-199210

main47201-22600iGX81..SPC198908-199008

main47201-22610iGX81,LX80,SX80..SCM,SDX198808-199210

main47201-22661iLX80,SX80,YX80..KYO198808-199210

main47201-22670iGX81..TWT198808-198908

main47201-22680iGX81..SLT199008-199210

main47201-22680iGX81,MX83..SLTG198908-199008

main47201-22690iGX81..TWT198908-199008

main47201-22700iGX81..SLT198908-199008

main47201-22750iJZX81,MX83..GT,SLTG199008-199210

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-22240iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

main47202-22280iLX80,SX80,YX80..KYO198808-199210

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iJZX81..SLT199008-199210

main90430-06104iGX81,LX80,SX80,YX80198808-199210

main90430-06104iGX81..SPC198908-199008

main90430-06104iGX81..SLT199008-199210

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iGX81..SPC198808-198908

main90109-06077iGX81..SPC198908-199008

main90109-06077iJZX81..SLT;GX81,LX80,SX80,YX80..GT,KYO,SCM,SDX,SLT198808-199210

main90109-06077iJZX81..SLT199008-199210

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-22020iLX80,SX80,YX80..KYO198808-199210

main84460-22030iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

sub84460-40020

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iGX81,LX80,SX80,YX80..KYO,SCM,SDX198808-199210

main47264-30040iGX81,MX83..GT,SLT,SLTG198808-199008

main47264-50010iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

47265BOOT, MASTER CYLINDER

main47265-12020iLX80,SX80,YX80..KYO198808-199210

*42

main47265-20050iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

main47265-20050iLX80,SX80,YX80..KYO198808-199210

main47265-22030iJZX81,MX83..GT,SLTG199008-199210

47275GASKET, BRAKE MASTER CYLINDER

main47275-22030iLX80,SX80,YX80..KYO198808-199210

*42

main47275-24010iLX80,SX80,YX80..KYO198808-199210

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-32010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

8271522140BRACKET,WIRING HARNESS CLAMP

main82715-22140

9011906052

main90119-06052

9014940006

main90149-40006

9017908147

main90179-08147

9161140614

main91611-40614

9412041000

main94120-41000

20 parts on this diagram · 3 diagrams in section
