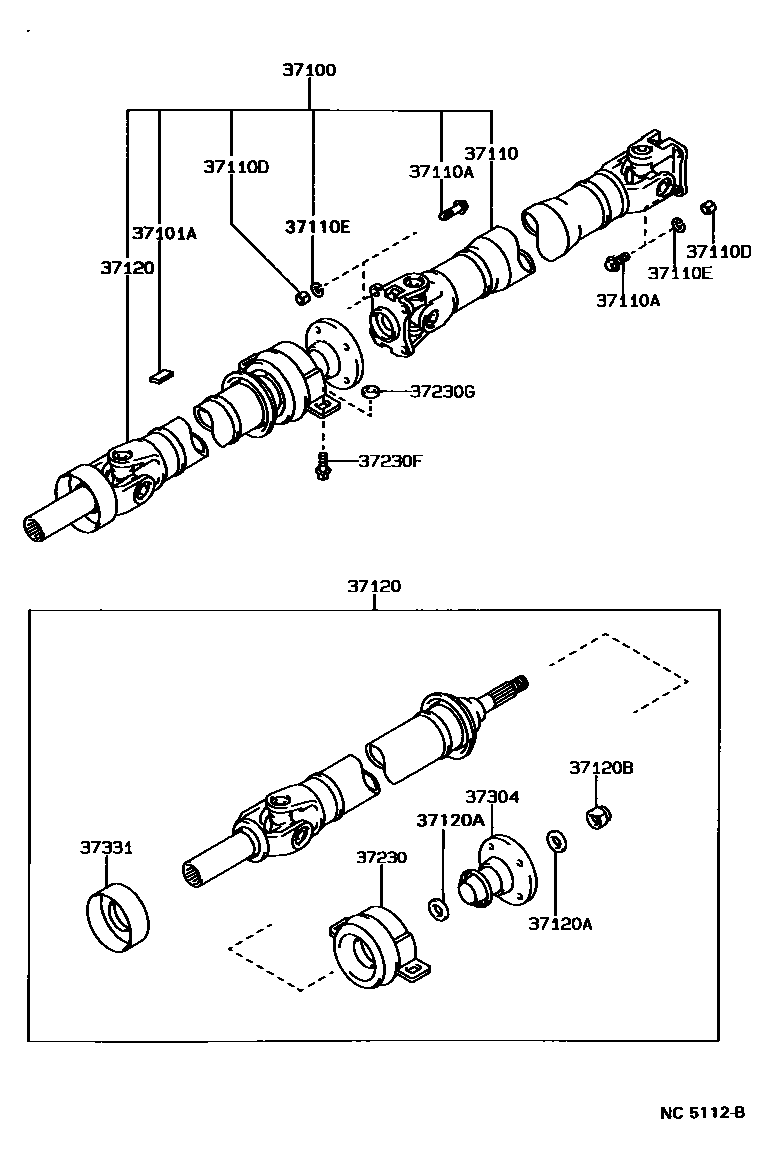

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1 0003 1

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-22550iGX81..5F..TWT198808-199008

main37100-22560iGX81..4FC..TWT198808-199008

main37100-22570iGX81..4FC..TWC198808-199210

main37100-22600iGX81..5F..(HTWC,TWC)198808-199210

main37100-22620iSX80,YX80..5F..KYO198808-199210

sub37100-22830

main37100-22640iLX80..DSL198808-199210

main37100-22650iLX80..4FC198808-199210

main37100-22690iLX80..5F..TD198808-199210

main37100-22720iGX81..4FC..HTWC198808-199210

main37100-22800iSX80..5F..SCM198808-199210

main37100-22830iYX80..3FC198808-199210

main37100-22840iSX80..4FC198808-199210

main37100-22850iGX81,MX83..SLTG198808-199210

main37100-2A030iJZX81..TWC199008-199210

main37100-2A040iJZX81..TWT199008-199210

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iGX81..5F..TWC;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD198808-199210

main90937-01147iGX81..5F..TWC;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD198808-199210

main90937-01148iGX81..5F..TWC;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD198808-199210

main90937-01149iGX81..5F..TWC;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD198808-199210

main90937-01150iGX81..5F..TWC;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD198808-199210

main90937-01151iGX81..5F..TWC;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD198808-199210

main90937-01152iGX81..5F..TWC;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD198808-199210

main90937-01311iGX81..5F..TWC;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD198808-199210

main90937-01312iGX81..5F..TWC;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD198808-199210

main90937-01313iGX81..5F..TWC;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD198808-199210

main90937-01314iGX81..5F..TWC;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD198808-199210

main90937-01338iGX81..5F..TWT;GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

main90937-01339iGX81..5F..TWT;GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

main90937-01340iGX81..5F..TWT;GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

main90937-01355iGX81..5F..TWT;GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

main90937-01356iGX81..5F..TWT;GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

main90937-01357iGX81..5F..TWT;GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

main90937-01358iGX81..5F..TWT;GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

main90937-01359iGX81..5F..TWT;GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

main90937-01360iGX81..5F..TWT;GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

main90937-01361iGX81..5F..TWT;GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

main90937-01362iGX81..5F..TWT;GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

main90937-01363iGX81..5F..TWT;GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

main90937-01364iGX81..5F..TWT;GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

main90937-01365iGX81..5F..TWT;GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

main90937-01385iGX81..5F..TWT;GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

main90937-01386iGX81..5F..TWT;GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

37110SHAFT ASSY, PROPELLER

main37110-22190iGX81..5F..TWT;GX81,JZX81,MX83..4FC..(SPC,TWC)198808-199210

sub37110-22191

main37110-22230iGX81,JZX81..4FC..TWT198808-199210

main37110-22250iGX81..HTWC;GX81..5F..TWC198808-199210

main37110-22270iLX80..5F..TD198808-199210

main37110-22300iLX80..4FC;LX80,SX80,YX80..CI,DSL,HTWC,LPG198808-199210

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08082iLX80..4FC;GX81..5F..TWC;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG198808-199210

main90105-10085iGX81,LX80..5F..(TD,TWT);GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

37110DNUT (FOR PROPELLER SHAFT)

main90170-08015iLX80..4FC;GX81..5F..TWC;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG198808-199210

main90179-10059iGX81,LX80..5F..(TD,TWT);GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

37110EWASHER (FOR PROPELLER SHAFT)

main90204-10002iGX81,LX80..5F..(TD,TWT);GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

sub90560-10H00

main94512-00800iLX80..4FC;GX81..5F..TWC;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG198808-199210

37120SHAFT ASSY, PROPELLER INTERMEDIATE

main37120-22380iGX81..5F..TWT198808-199008

main37120-22390iGX81..4FC..(TWC,TWT)198808-199210

main37120-22420iGX81..5F..(HTWC,TWC)198808-199210

main37120-22440iSX80,YX80..5F..KYO198808-199210

sub37120-22640

main37120-22460iLX80..DSL198808-199210

sub37120-22600

main37120-22470iLX80..4FC198808-199210

main37120-22510iLX80..5F..TD198808-199210

main37120-22520iGX81..4FC..HTWC198808-199210

sub37120-22690

main37120-22610iSX80..5F..SCM198808-199210

main37120-22640iYX80..3FC198808-199210

main37120-22650iSX80..4FC198808-199210

main37120-22660iGX81,MX83..SLTG198808-199210

main37120-22720iJZX81199008-199210

37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)

main90201-18182iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

main90201-18182iGX81..5F..TWC;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD198808-199008

main90201-18182iGX81..5F..TWC;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD198808-199008

main90201-25006iGX81..5F..TWT;GX81,MX83..4FC..(SPC,TWC,TWT)198908-199008

main90201-25006iGX81,JZX81,MX83..4FC..(TWC,TWT)199008-199210

main90201-26005iGX81..5F..TWT;GX81..4FC..(SPC,TWC,TWT)198808-198908

main90201-26005iGX81..5F..TWC;GX81,LX80,SX80,YX80..DSL,HTWC,LPG,TD199008-199210

main90201-26005iGX81..5F..TWC;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD198808-199008

37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)

main90179-18009iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-22110iGX81..5F..TWT;GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

main37230-22130iGX81..5F..(HTWC,TWC)198808-199210

main37230-22140iLX80,YX80;SX80..KYO;SX80..4FC..SCM198808-199210

main37230-22150iSX80..5F..SCM198808-199210

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10046iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10008iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

main90201-10017iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

main90201-10033iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

main90201-10034iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

main90201-10035iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

main90201-10106iGX81,JZX81,LX80,MX83,SX80,YX80198902-199210

37304FLANGE SUB-ASSY, UNIVERSAL JOINT

main37304-22013iLX80..4FC;GX81..5F..TWC;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG198808-199210

sub37304-28010

main37304-35041iGX81,LX80..5F..(TD,TWT);GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

37331COVER, SLIDING SHAFT DUST

main37331-24010iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

main37331-30010iGX81..5F..(TWC,TWT);GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD198808-199210

14 parts on this diagram · 3 diagrams in section
