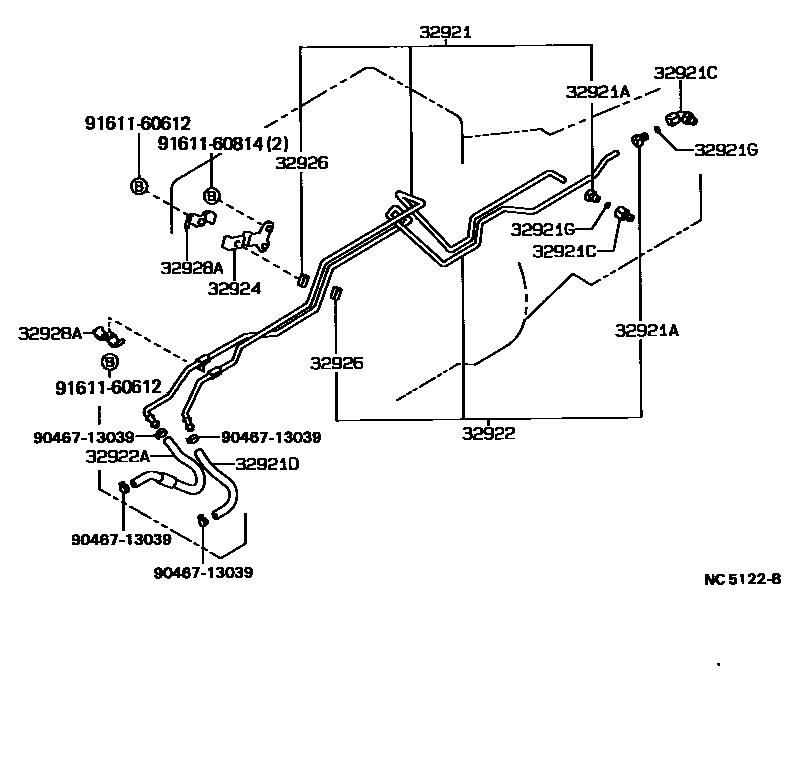

OIL COOLER & TUBE (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-22380iGX81..4FC..TWC198808-199210

main32921-22390iGX81..4FC..TWT198808-199008

main32921-22401iMX83198908-199210

main32921-22410iSX80..4FC198808-198909

sub35013-22H00

main32921-22411iSX80..4FC..HTWC198909-199210

main32921-22420iGX81..4FC..HTWC198808-199210

main32921-22510iJZX81199008-199210

main32921-22520iLX80..4FC198808-199008

sub32921-22570

main32921-22530iYX80..3FC198808-199210

main32921-22550iGX81..SPC198808-199008

main32921-22570iLX80..4FC199008-199210

main32921-22580iSX80..4FC199005-199008

32921ANUT, UNION(FOR OIL COOLER TUBE)

main90402-14004iLX80..4FC198808-199210

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

main90404-16020iGX81,MX83..4FC..(SPC,TWC,TWT)198808-199007

sub90404-16029

main90404-16021iYX80..3FC198808-199210

main90404-16029iGX81,JZX81,MX83..4FC..(TWC,TWT)199007-199210

main90404-16029iGX81..SPC199007-199008

main90407-14003iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

main90407-16009iGX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

main90407-16009iGX81..SPC199007-199008

main90407-16010iYX80..3FC198808-199210

32921DHOSE(FOR OIL COOLER INLET)

main32941-22070iSX80,YX80..ATM198808-198907

sub32941-22071

main32941-22071iSX80..4FC198907-199210

main32941-22160iJZX81199008-199210

main32941-22201iMX83198908-199210

main32942-22100iGX81..4FC..TWC198808-198907

sub32942-22101

main32942-22101iGX81..4FC..TWC198907-199210

main90445-15015iLX80..4FC198808-198907

sub90445-15046

main90445-15042iGX81..4FC..HTWC198907-199210

main90445-15046iLX80..4FC198907-199210

main90445-16026iGX81..4FC..HTWC198808-198907

main90445-17075iGX81..SPC198808-198907

sub90445-17106

main90445-17083iGX81..4FC..TWT198808-198907

sub90445-17096

main90445-17096iGX81..4FC..TWT198907-199008

main90445-17106iGX81..SPC198907-199008

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

main90301-11006iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-22400iGX81..4FC..TWC198808-199210

main32922-22410iGX81..4FC..TWT198808-199008

main32922-22421iMX83198908-199210

main32922-22430iSX80..4FC198808-198909

sub35013-22H00

main32922-22431iSX80..4FC..HTWC198909-199210

main32922-22440iGX81..4FC..HTWC198808-199210

main32922-22540iJZX81199008-199210

main32922-22550iLX80..4FC198808-199008

sub32922-22600

main32922-22560iYX80..3FC198808-199210

main32922-22580iGX81..SPC198808-199008

main32922-22600iLX80..4FC199008-199210

main32922-22610iSX80..4FC199005-199008

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-22110iGX81..4FC..(HTWC,TWC)198808-198907

sub32941-22111

main32941-22111iGX81..4FC..(HTWC,TWC)198907-199210

main32941-22181iMX83198908-199008

main32941-22181iMX83199008-199210

main32941-30070iYX80..3FC198808-198907

sub32941-30071

main32941-30071iYX80..3FC198907-199210

main32941-32030iLX80..4FC198808-199008

main32942-22180iGX81..4FC..TWT198808-198907

sub32942-22181

main32942-22181iGX81..4FC..TWT198907-199008

main32942-22190iGX81..4FC..TWT198808-199008

main32942-22200iGX81..SPC198912-199008

main32942-22230iJZX81199008-199210

main90445-15034iSX80..4FC198808-198907

sub90445-15050

main90445-15050iSX80..4FC198907-199210

main90445-15059iLX80..4FC199008-199210

main90445-17085iGX81..SPC198808-198907

sub90445-17103

main90445-17103iGX81..SPC198907-198912

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-22061iGX81..4FC..HTWC198808-199210

main32924-22090iJZX81199008-199210

main32924-24010iGX81..4FC..TWT198808-199008

main32924-28010iLX80..4FC198808-199210

main32924-30100iGX81..4FC..(SPC,TWC)198808-199210

main32924-30160iMX83198908-199210

main90461-08628iYX80..3FC198808-199210

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-22010iGX81,SX80..4FC..HTWC198808-199210

main32926-22040iLX80..4FC199008-199210

main32926-30011iSX80..4FC198909-199210

main32926-30020iGX81,MX83,YX80..ATM..(LPG,SPC,TWC)198808-199210

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-22051iLX80..4FC198808-199008

main32928-22090iSX80..4FC198808-198911

sub32928-22091

main32928-22091iSX80..4FC198911-199210

main32928-22110iLX80..4FC199008-199210

main32928-30080iGX81..SPC198808-199008

main32928-30090iMX83198908-199210

main32929-22050iJZX81199008-199210

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main90462-12085iGX81..4FC..HTWC198808-199210

9046713039

main90467-13039

9161160612

main91611-60612

9161160814

main91611-60814

14 parts on this diagram · 8 diagrams in section
