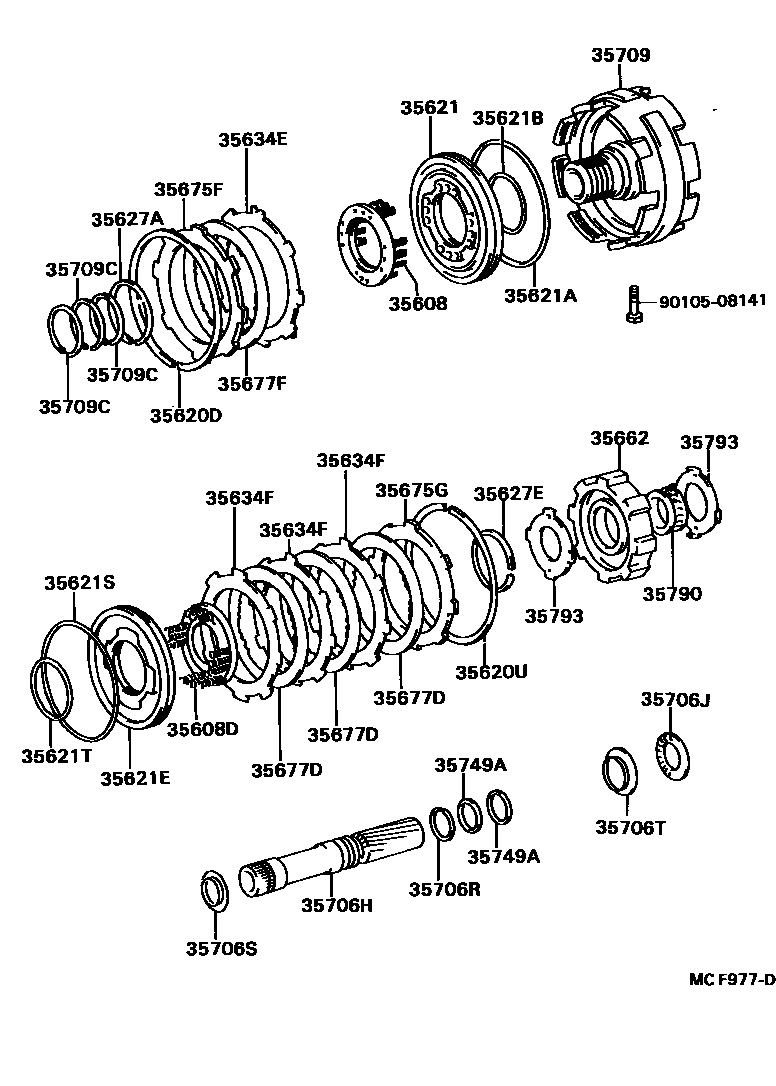

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1A41,A42D,A42DL,A43D 0002 1A340E,A341E

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-20010iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

main35608-30010iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

35608DSPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-22010iGX81,SX80..4FC..(CI,HTWC)198808-199210

main35608-30020iLX80,YX80..ATM198808-199210

35620DRING (FOR BRAKE)

main90521-99139iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35620URING (FOR REAR BRAKE)

main90521-99139iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35621PISTON, BRAKE, NO.1

main35624-22010iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35621ARING, O (FOR BRAKE PISTON OUTER)

main90301-99192iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35621BRING, O (FOR BRAKE PISTON INNER)

main90301-57188iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35621EPISTON, BRAKE (FOR REAR BRAKE)

main35621-30010iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35621SRING (FOR REAR BRAKE PISTON OUTER)

main90301-99007iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

sub90301-99107

35621TRING (FOR REAR BRAKE PISTON INNER)

main90301-57188iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35627ARING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)

main90520-52262iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35627ERING, SHAFT SNAP (FOR REAR BRAKE RETURN SPRING SEAT)

main90520-52262iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35634EPLATE, CLUTCH (FOR BRAKE)

main35634-22060iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35634FPLATE, CLUTCH (FOR REAR BRAKE)

main35634-22060iYX80..3FC198808-199210

main35648-22010iYX80..3FC198808-199210

main35648-30020iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

35662HUB, BRAKE

main35662-30010iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35675FFLANGE, CLUTCH (FOR BRAKE)

main35675-22010iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

sub35675-22140

35675GFLANGE, BRAKE (FOR REAR BRAKE)

main34625-22010iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

sub35676-22030

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35667-30020iGX81,JZX81..4FC..(SPC,TWC)198808-199210

35677DDISC, CLUTCH (FOR REAR BRAKE)

main35677-22060iYX80..3FC198808-199210

main35677-30020iGX81,LX80..4FC..(HTWC,TD)198808-199210

35677FDISC, CLUTCH (FOR BRAKE)

main35677-30100iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-22011iGX81,SX80,YX80..ATM..(CI,HTWC,LPG)198808-199210

main35706-30040iLX80..4FC198808-199003

main35706-30061iJZX81..TWC;GX81..4FC..(SPC,TWC,TWT)198808-199210

main35706-30070iLX80..4FC199003-199210

main35706-50010iMX83198908-199008

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-23012iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

main90374-24003iLX80..4FC199003-199210

main90374-30006iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

35706RRING, SHAFT SNAP (FOR PLANETARY SUN GEAR)

main90520-34001iLX80..4FC198808-199210

main90520-34260iGX81,SX80,YX80..ATM..(CI,HTWC,LPG)198808-199210

35706SRACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)

main35789-22030iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35706TRACE, THRUST BEARING (FOR PLANETARY SUN GEAR REAR)

main35789-22010iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35709SUPPORT SUB-ASSY, CENTER

main35709-12011iSX80..4FC198808-199210

main35709-28010iGX81,YX80..ATM..(HTWC,LPG)198808-199210

main35709-30041iLX80..4FC198808-199210

35709CRING, OIL SEAL (FOR CENTER SUPPORT)

main35617-16010iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-22010iGX81,SX80,YX80..ATM..(CI,HTWC,LPG)198808-199210

main35749-30010iGX81,JZX81,LX80,MX83..4FC..(SPC,TD,TWC,TWT)198808-199210

35790CLUTCH ASSY, 1 WAY

main35790-30030iGX81..4FC..(SPC,TWC,TWT)198808-198907

sub35790-50010

main35790-50010iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198907-199210

sub35790-30060

main35791-30020iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35793RETAINER, 1 WAY CLUTCH

main35793-22011iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

9010508141

main90105-08141

31 parts on this diagram · 2 diagrams in section
