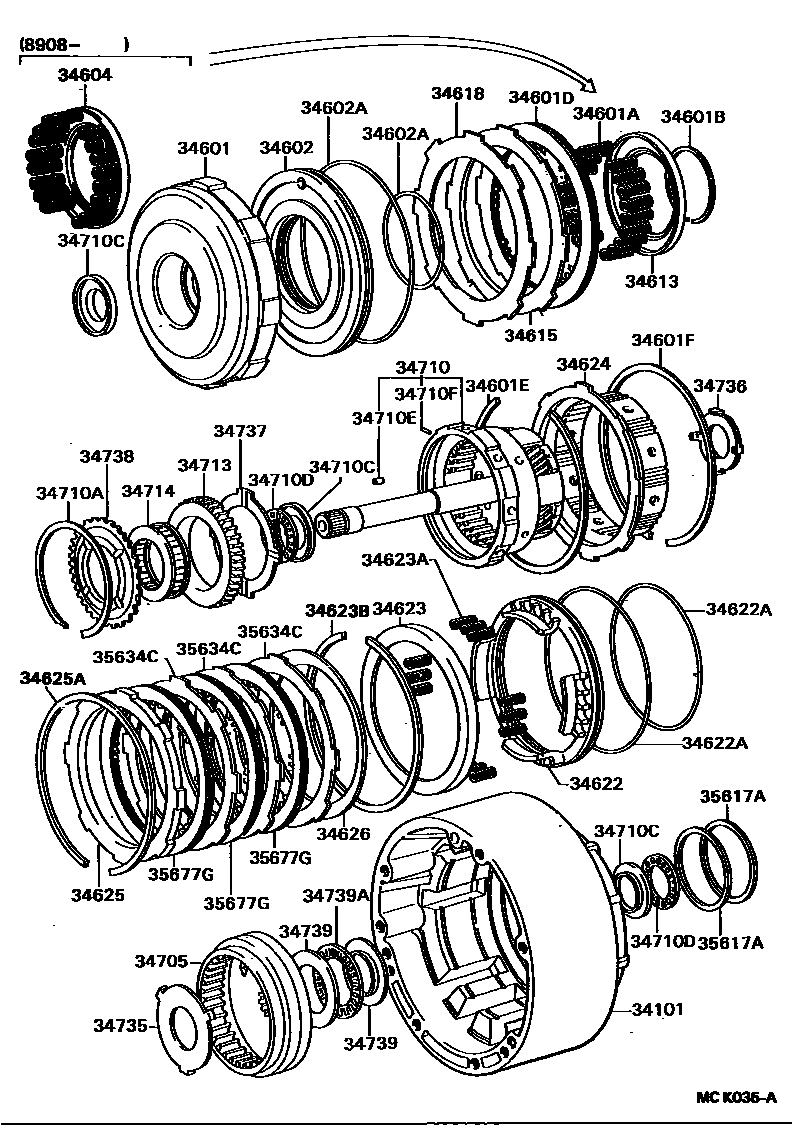

OVERDRIVE GEAR (ATM)

0001 1A42D,A43D 0002 1A340E,A341E

34101CASE SUB-ASSY, OVERDRIVE

main34101-30062iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

sub34101-22020

sub35617-43010

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-30022iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

main34601-30030iJZX81,MX83..TWC;GX81..4FC..(SPC,TWC,TWT)198808-199210

main34601-50010iJZX81..TWT199008-199210

sub34601-26020

34601ASPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH)

main90501-11023iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-198908

34601BRING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH)

main90520-52262iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

34601DDISC, CLUTCH (FOR OVERDRIVE)

main35677-30030iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

sub35677-30160

34601ERING, HOLE SNAP, NO.1 (FOR OVERDRIVE)

main90521-99146iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

34601FRING, HOLE SNAP, NO.2 (FOR OVERDRIVE)

main90521-99001iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-30020iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

main34602-30030iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-57188iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

main90301-65005iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

sub90301-65006

main90301-99016iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

main90301-99036iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

sub90301-99086

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-22010iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198908-199210

main34604-30010iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

34613SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING

main34613-30010iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-198908

34615FLANGE, OVERDRIVE CLUTCH

main34615-30020iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

sub34615-50050

main34615-30030iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

sub34615-50040

main34615-30040iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

sub34615-50030

main34615-30050iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

sub34615-22030

main34615-30060iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

sub34615-22020

main34615-30070iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

sub34615-22010

main35675-22010iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

sub35675-22140

34618PLATE, OVERDRIVE DIRECT CLUTCH CUSHION

main34618-30010iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

34622PISTON, OVERDRIVE BRAKE

main34622-14010iJZX81..TWT199008-199210

main34622-30030iGX81,MX83..4FC..(GT,SLTG)..(TWC,TWT)198808-199210

main34622-30040iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

main34622-35010iGX81,JZX81..4FC..(SPC,TWC)198808-199210

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99008iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

sub90301-99103

main90301-99009iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

sub90301-99111

main90301-99035iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

sub90301-99087

main90301-99035iGX81..4FC..TWC198808-198809

sub90301-99087

main90301-99037iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

34623SEAT, OVERDRIVE BRAKE RETURN SPRING

main34623-30020iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

34623ASPRING, COMPRESSION (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90501-10671iLX80..4FC198808-199210

main90501-11023iGX81,SX80..4FC..(CI,HTWC)198808-199210

34623BRING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90521-99004iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

34624HUB, OVERDRIVE BRAKE

main34624-32010iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

sub34624-26010

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-26010iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

sub34625-22020

main34625-30030iGX81,JZX81..4FC..(SPC,TWC)198808-199112

sub34625-30110

main34625-30040iJZX81..TWT198808-199112

sub34625-30120

main34625-30050iJZX81..TWT198808-199112

sub34625-30130

main34625-30060iJZX81,MX83..TWC;GX81..4FC..(SPC,TWC,TWT)198808-199112

sub34625-30140

main34625-30070iJZX81,MX83..TWC;GX81..4FC..(SPC,TWC,TWT)198808-199112

sub34625-30150

main34625-30080iJZX81..TWT198808-199112

sub34625-30160

main34625-30090iJZX81..TWT198808-199112

sub34625-30170

main34625-30100iGX81,MX83..4FC..(GT,SLTG)..(TWC,TWT)198808-199112

sub34625-30180

main34625-30110iGX81,JZX81,MX83..4FC..(TWC,TWT)199112-199210

main34625-30120iGX81,JZX81,MX83..4FC..(TWC,TWT)199112-199210

sub34625-22050

main34625-30130iGX81,JZX81,MX83..4FC..(TWC,TWT)199112-199210

sub34625-22040

main34625-30140iGX81,JZX81,MX83..4FC..(TWC,TWT)199112-199210

sub34625-50040

main34625-30150iGX81,JZX81,MX83..4FC..(TWC,TWT)199112-199210

sub34625-50030

main34625-30160iGX81,JZX81,MX83..4FC..(TWC,TWT)199112-199210

sub34625-50020

main34625-30170iGX81,JZX81,MX83..4FC..(TWC,TWT)199112-199210

sub34625-22030

main34625-30180iGX81,JZX81,MX83..4FC..(TWC,TWT)199112-199210

sub34625-22060

34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)

main90521-99004iLX80..4FC..SCM;GX81,SX80..4FC..(CI,HTWC)198808-199210

main90521-99027iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

34626PLATE, OVERDRIVE BRAKE CUSHION

main34626-30050iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

34705GEAR SUB-ASSY, OVERDRIVE PLANETARY RING

main34705-30021iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-14011iLX80..KYO..TD198808-199210

main34710-22030iGX81..4FC..(TWC,TWT)198808-199210

sub34710-22031

sub34732-22011

sub35789-30052

sub90374-31008

main34710-22040iGX81..4FC..HTWC198808-199210

main34710-30022iLX80..4FC..SCM198808-199210

main34710-30030iMX83198808-199210

sub34710-30031

sub34732-22011

sub35789-30052

sub90374-31008

34710ARING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR)

main90521-99003iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)

main34739-30031iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

CTR

main34739-30041iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

main35789-22010iGX81..4FC..SLT..HTWC198808-199008

main35789-22010iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

main35789-30050iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-23012iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

main90374-23012iGX81..4FC..SLT..HTWC198808-199008

main90374-24001iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

main90374-25005iGX81,MX83..SLTG198808-199210

main90374-28008iGX81,MX83..SLTG198808-199210

34710EPLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90334-03001iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

34710FPIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90250-03024iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-30020iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

main34713-32010iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main35791-30030iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

main35791-30040iGX81..4FC..(SPC,TWC,TWT)198808-198907

sub35791-50010

main35791-50010iGX81..4FC..(SPC,TWC,TWT)198907-199210

main35791-50040iGX81,MX83..4FC..(SPC,TWC,TWT)198908-199008

34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1

main34735-30020iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2

main34736-30010iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-30020iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

main34737-30030iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

34738WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4

main34738-30020iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

34739RACE, THRUST BEARING(FOR OVERDRIVE)

main34739-30020iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

main35789-22030iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

34739ABEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE)

main90374-28014iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-16010iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

main35617-30020iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main34616-30010iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

main35634-30080iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

35677GDISC, CLUTCH, NO.3 (FOR OVERDRIVE)

main35677-30040iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

sub35677-43010

40 parts on this diagram · 2 diagrams in section
