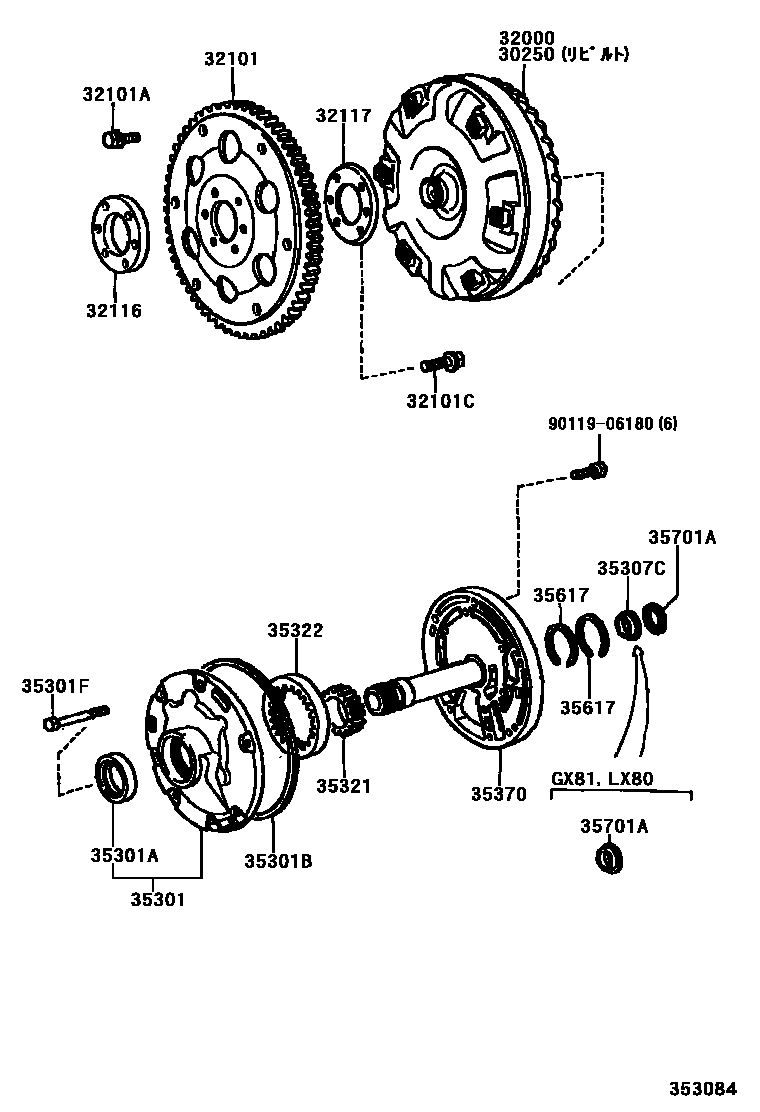

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1AA41,A42D,A42DL,A43D 0002 1A340E,A341E

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-22021iYX80..3FC198808-199210

main30250-22070iGX81..4FC..TWT198808-199008

main30250-22080iGX81..4FC..TWC198808-199210

main30250-22090iGX81..4FC..HTWC198808-199210

main30250-22120iLX80..KYO..TD198808-199210

main30250-22140iSX80..4FC198808-199210

main30250-22150iMX83198908-199210

main30250-22160iJZX81..TWC199008-199210

main30250-22170iJZX81..TWT199008-199210

main30250-35070iLX80..4FC..SCM198808-199210

32000CONVERTER ASSY, TORQUE

main32000-22021iYX80..3FC198808-199210

main32000-22070iGX81..4FC..TWT198808-199008

main32000-22080iGX81..4FC..TWC198808-199210

main32000-22090iGX81..4FC..HTWC198808-199210

main32000-22110iGX81..SPC198808-199008

sub32000-30200

main32000-22120iLX80..KYO..TD198808-199210

main32000-22140iSX80..4FC198808-199210

main32000-22150iMX83198908-199210

main32000-22160iJZX81..TWC199008-199210

main32000-22170iJZX81..TWT199008-199210

main32000-35070iLX80..4FC..SCM198808-199210

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-14051iMX83198908-198912

sub32101-14052

main32101-14052iMX83198912-199210

main32101-22040iSX80..4FC198808-198905

main32101-22041iSX80..4FC198905-199210

main32101-22050iJZX81199008-199210

main32101-24012iGX81..4FC198808-199210

main32101-28010iYX80..3FC198808-199210

main32101-35020iLX80..4FC198808-199210

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iYX80..3FC198808-199210

main90119-08498iYX80..3FC198808-199210

main90119-09009iGX81,JZX81,LX80,MX83,SX80..4FC198808-199210

main90119-09009iSX80..4FC199111-199210

main90119-09010iGX81,JZX81,LX80,MX83,SX80..4FC198808-199210

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10046iGX81,YX80..ATM198808-199210

main90105-10294iJZX81199008-199210

main90105-12014iLX80..4FC198808-199210

main90109-10037iMX83198908-199210

main90109-10054iSX80..4FC198808-199210

32116SPACER, DRIVE PLATE, FRONT

main32116-14011iGX81..4FC198808-199210

main32116-14020iSX80..4FC198808-198905

main32116-22020iJZX81199008-199210

main32116-28010iYX80..3FC198808-199210

main32116-30011iMX83198908-199210

main32116-32011iSX80..4FC198905-199210

main32116-35010iLX80..4FC198808-199210

32117SPACER, DRIVE PLATE, REAR

main32117-14011iGX81..4FC198808-199210

main32117-14030iSX80..4FC198808-198905

main32117-20030iYX80..3FC198808-199210

main32117-22020iJZX81199008-199210

main32117-30011iMX83198908-199210

main32117-32010iSX80..4FC198905-199210

main32117-35010iLX80..4FC198808-199210

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-14010iGX81..4FC..HTWC198808-199210

main35301-30030iLX80,SX80,YX80..ATM198808-199210

main35301-30040iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iLX80..KYO..TD;GX81,SX80,YX80..ATM..(CI,HTWC,LPG)198808-199210

main90311-38029iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

sub90311-38020

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iGX81,LX80,SX80,YX80..ATM..(HTWC,LPG,TD)198808-199210

main90301-99033iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

main90105-08128iYX80..3FC198808-199210

sub91511-K0840

main90105-08137iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-22010iYX80..3FC198808-199210

main35789-30020iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

sub35789-30340

35321GEAR, FRONT OIL PUMP DRIVE

main35321-14010iGX81..4FC..HTWC198808-199008

sub35321-22020

sub35321-22030

sub35321-22040

sub35321-22050

sub35321-22060

main35321-22010iLX80,SX80,YX80..ATM198808-199210

sub35321-22090

main35321-22020iGX81..4FC..HTWC199008-199210

main35321-22030iGX81..4FC..HTWC199008-199210

main35321-22040iGX81..4FC..HTWC199008-199210

main35321-22050iGX81..4FC..HTWC199008-199210

main35321-22060iGX81..4FC..HTWC199008-199210

main35321-22070iLX80,SX80..4FC199008-199210

main35321-22080iLX80,SX80..4FC199008-199210

main35321-22090iLX80,SX80..4FC199008-199210

main35321-22100iLX80,SX80..4FC199008-199210

main35321-22110iLX80,SX80..4FC199008-199210

main35321-32050iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

sub35321-12090

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-14010iGX81..4FC..HTWC198808-199008

sub35322-22020

sub35322-22030

sub35322-22040

sub35322-22050

sub35322-22060

main35322-22010iLX80,SX80,YX80..ATM198808-199210

sub35322-22090

main35322-22020iGX81..4FC..HTWC199008-199210

main35322-22030iGX81..4FC..HTWC199008-199210

main35322-22040iGX81..4FC..HTWC199008-199210

main35322-22050iGX81..4FC..HTWC199008-199210

main35322-22060iGX81..4FC..HTWC199008-199210

main35322-22070iLX80,SX80..4FC199008-199210

main35322-22080iLX80,SX80..4FC199008-199210

main35322-22090iLX80,SX80..4FC199008-199210

main35322-22100iLX80,SX80..4FC199008-199210

main35322-22110iLX80,SX80..4FC199008-199210

main35322-32050iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

sub35322-12080

35370SHAFT ASSY, STATOR

main35370-14012iGX81..4FC..HTWC198808-199210

main35370-22040iYX80..3FC198808-199210

main35370-22050iSX80..4FC;LX80..KYO..TD198808-199210

main35370-30023iLX80..4FC..SCM198808-199210

main35370-30031iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

35617RING, CLUTCH DRUM OIL SEAL

main35617-16010iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-198912

main35617-30020iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

main35617-32010iLX80..KYO..TD;GX81,SX80,YX80..ATM..(CI,HTWC,LPG)198808-199210

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-23012iYX80..3FC198808-199210

main90374-25003iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

9011906180

main90119-06180

18 parts on this diagram · 2 diagrams in section
