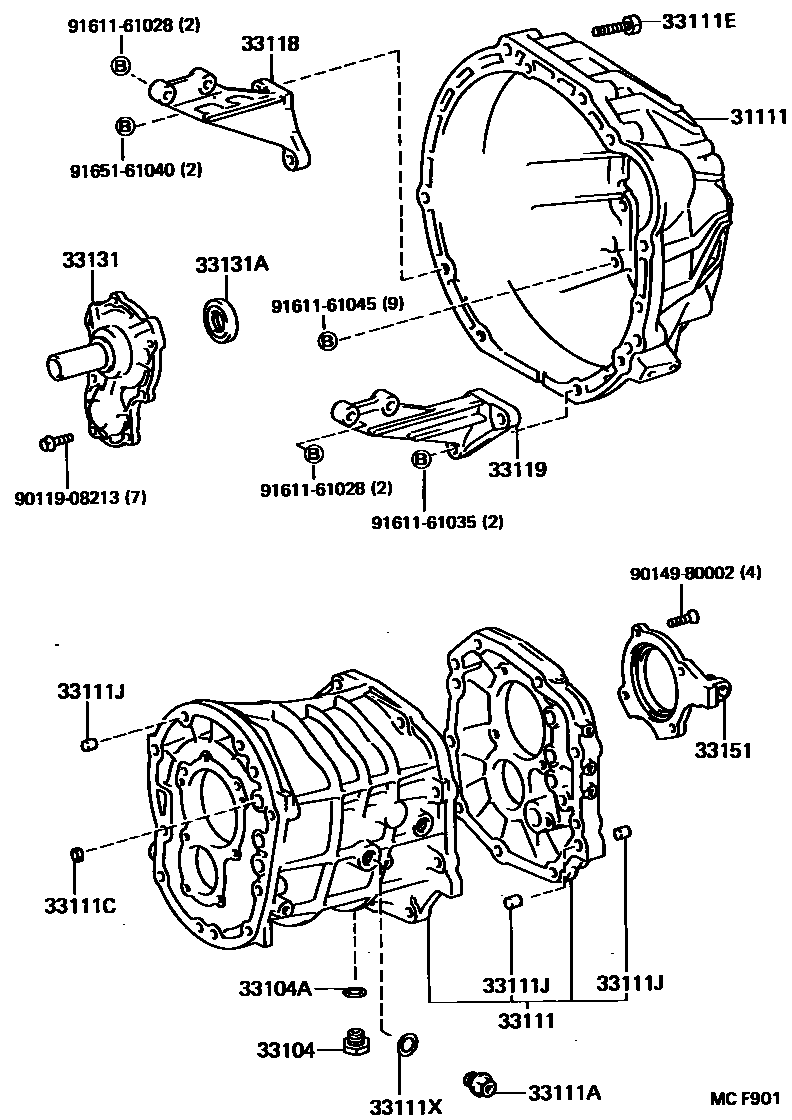

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1W55,W57,W58 0002 1W55,W57,W58 0003 1W55 0004 1W55 0005 1W55 0006 1W55 0007 1W55 0008 1W55

31111HOUSING, CLUTCH

main31111-20230iYX80..5F198808-199210

main31111-22112iLX80..5F198808-198912

sub31111-22113

main31111-22113iLX80..5F198912-199006

sub31111-22114

main31111-22114iLX80..5F199006-199210

main31111-22120iSX80..5F198808-199210

main31111-22130iGX81..5F198808-199210

main31111-22131iGX81..5F199004-199107

sub31111-22130

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iGX81,LX80,SX80,YX80..5F198808-199210

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iGX81,LX80,SX80,YX80..5F198808-199210

33111CASE, MANUAL TRANSMISSION

main33101-22031iGX81,LX80,SX80,YX80..5F198808-198904

sub33101-22032

main33101-22032iGX81,LX80,SX80,YX80..5F198904-199108

sub33101-30070

sub33242-30080

main33101-30070iGX81,LX80,SX80,YX80..5F199108-199210

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iGX81,LX80,SX80,YX80..5F198808-199210

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iGX81,LX80,SX80,YX80..5F198808-199108

main90331-14004iGX81,LX80,SX80,YX80..5F199108-199110

main90331-17004iGX81,LX80,SX80,YX80..5F199108-199110

33111EBOLT(FOR TRANSMISSION CASE & ENGINE SETTING)

main90119-12028iSX80..5F198808-199210

*12-1.25PX90-30

main90119-12168iSX80..5F198808-199210

main91619-61250iGX81,LX80..5F198808-199210

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iGX81,LX80,SX80,YX80..5F198808-199210

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iGX81,LX80,SX80,YX80..5F198808-199210

33118PLATE, STIFFENER, RH(MTM)

main33118-14033iSX80..5F198808-199210

main33118-22051iGX81..5F198808-199210

main33118-25020iLX80..5F198808-199210

main33118-28010iYX80..5F198808-199210

33119PLATE, STIFFENER, LH(MTM)

main33119-14050iSX80..5F198808-199210

main33119-22042iGX81..5F198808-199210

main33119-25020iLX80..5F198808-199210

main33119-28010iYX80..5F198808-199210

33131RETAINER, BEARING, FRONT(MTM)

main33131-22021iGX81,LX80,SX80,YX80..5F198808-199110

main33131-30080iGX81,LX80,SX80,YX80..5F199110-199210

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iGX81,LX80,SX80,YX80..5F199110-199210

main90311-30115iGX81,LX80,SX80,YX80..5F198808-199110

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-22010iGX81,LX80,SX80,YX80..5F198808-199110

main33107-30020iGX81,LX80,SX80,YX80..5F199110-199210

9011908213

main90119-08213

9014980002

main90149-80002

9161161028

main91611-61028

9161161035

main91611-61035

9161161045

main91611-61045

9165161040

main91651-61040

20 parts on this diagram · 8 diagrams in section
