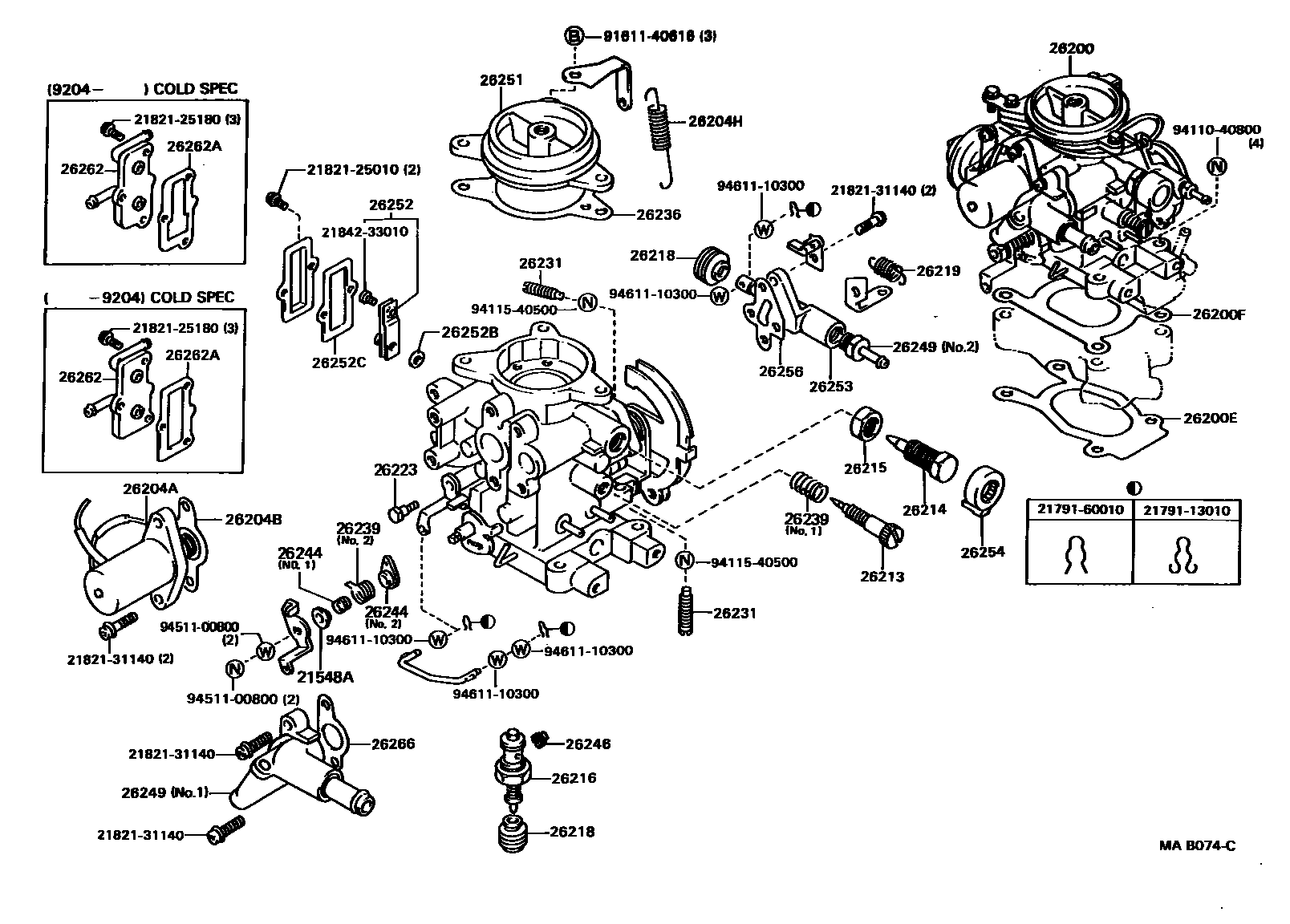

LPG CARBURETOR
21548ACOLLER, THROTTLE LEVER
26204AVALVE, THROTTLE SOLENOID(FOR LPG)
26204BGASKET, SOLENOID VALVE(FOR LPG)
26204HSPRING, THROTTLE RETURN(FOR LPG)
26213SCREW, ADJUST
sub26214-10010
26214SCREW, POWER ADJUST
26215NUT, POWER ADJUST
26216VALVE, POWER
26218BOOT(FOR POWER VALVE)
26219SPRING, POWER VALVE
26223SCREW, SET(FOR POWER VALVE CAM)
26231SCREW(FOR LPG CARBURETOR)
26236GASKET, AIR HORN
26244COLLAR(FOR LPG CARBURETOR)
26246JET
26249UNION, FUEL HOSE(FOR LPG)
26251HORN, AIR
26252VALVE, THERMOSTATIC
26252BGASKET, NO.1(FOR THERMOSTATIC VALVE)
26252CGASKET, NO.2(FOR THERMOSTATIC VALVE)
26253VALVE, CHANGE(FOR SLOW)
26254CAP, POWER SCREW LIMIT
26256GASKET, CHANGE VALVE
26266GASKET, FUEL INLET UNION
2179113010RING, SNAP, NO.1(FOR CARBURETOR LINK)
main21791-13010
2179160010RING, SNAP, NO.1(FOR CARBURETOR LINK)
main21791-60010
2182125010SCREW, 2ND THROTTLE VALVE SET
main21821-25010
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2184233010SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
main21842-33010
9161140616
main91611-40616
9411040800
main94110-40800
9411540500
main94115-40500
9451100800
main94511-00800
9461110300
main94611-10300
41 parts on this diagram · 1 diagram in section
