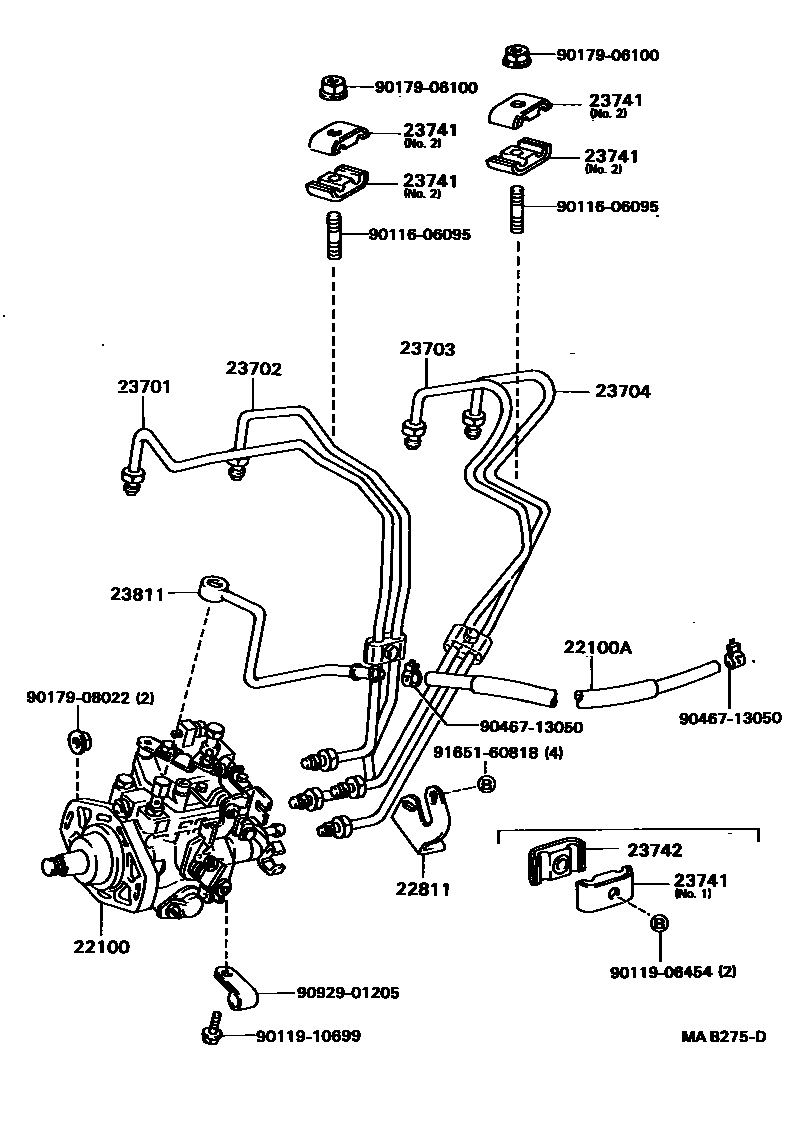

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54890i2L..LX80198808-199210

main22100-5B010i2LT..LX80..5F198808-198812

sub22100-5B011

main22100-5B011i2LT..LX80..5F198812-199008

main22100-5B012i2LT..LX80..5F199008-199210

main22100-5B020i2LT..LX80..4FC198808-198902

sub22100-5B021

main22100-5B021i2LT..LX80..4FC198902-199008

sub22100-5B022

main22100-5B022i2LT..LX80..4FC199008-199210

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main90447-14057i2L#..LX80198808-199210

22811STAY, INJECTION PUMP, NO.1

main22811-54041i2L#..LX80198808-199210

sub22811-54042

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54110i2L#..LX80198808-198908

sub23701-54140

main23701-54140i2L#..LX80198908-199210

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54110i2L..LX80198808-198908

sub23702-54140

main23702-54120i2LT..LX80198808-199210

main23702-54140i2L..LX80198908-199210

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54090i2L#..LX80198808-198903

sub23703-54091

main23703-54091i2L#..LX80198903-198908

sub23703-54100

main23703-54100i2L#..LX80198908-199210

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54090i2L#..LX80198808-198908

sub23704-54100

main23704-54100i2L#..LX80198908-199210

23741CLAMP, INJECTION PIPE, NO.1

main23741-54010i2L#..LX80198808-199210

main23741-56010i2L#..LX80198808-199210

23742CLAMP, INJECTION PIPE, NO.2

main23742-54010i2L#..LX80198808-199210

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54150i2L#..LX80198808-199108

sub23811-54151

main23811-54151i2L#..LX80199108-199210

9011606095

main90116-06095

9011906454

main90119-06454

9011910699

main90119-10699

9017906100

main90179-06100

9017908022

main90179-08022

9046713050

main90467-13050

9092901205

main90929-01205

9165160818

main91651-60818

18 parts on this diagram · 1 diagram in section
