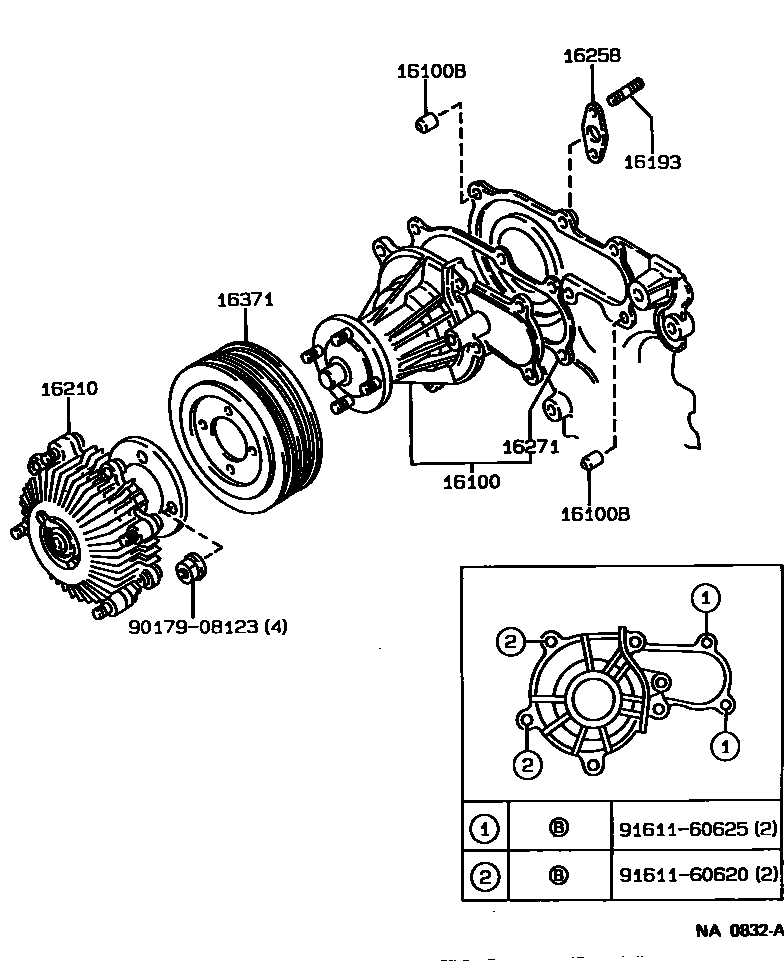

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

16100PUMP ASSY, ENGINE WATER

main16100-49755i7MGE..MX83198908-199008

sub16100-49756

main16100-49805i7MGE..MX83199008-199210

main16100-49815i1JZGE..JZX81199008-199210

sub16100-49816

sub90445-12291

main16100-59155i2L#..LX80198808-199210

sub16100-59255

main16100-79025i1GGE..GX81198808-199210

main16100-79036i3YP..YX80198808-199210

sub16100-79037

main16100-79055i1GGZE..GX81198808-199008

main16100-79065i1GGTE..GX81198808-199008

main16100-79075i4SFI..SX80198808-199008

sub16100-79185

main16100-79115i1GFE..GX81198808-199007

sub16100-79116

main16100-79116i1GFE..GX81199007-199210

sub16100-79117

sub90119-08B68

main16100-79185i4SFE..SX80199008-199210

sub16100-79186

16100BPIN, RING(FOR WATER PUMP SET)

main16159-70040i1GFE..GX81198808-199210

main16159-71010i1GGZE..GX81198808-199008

main16185-70010i1GGE,1GGTE..GX81198808-199210

16193BOLT, STUD(FOR WATER PUMP COVER)

main16192-70010i1GFE,1GGE,1GGTE..GX81198808-199210

main16193-46030i1JZGE..JZX81199008-199210

main90029-01500i4SF#..SX80198808-199210

16210COUPLING ASSY, FLUID

main16210-42060i7MGE..MX83198908-199210

main16210-46010i1JZGE..JZX81199008-199210

main16210-54130i2L#..LX80198808-199210

main16210-70040i1GFE..GX81198808-199210

main16210-70070i1GGZE..GX81198808-199008

main16210-72010i3YP..YX80198808-199210

main16210-88300i1GGE..GX81198808-199210

main16210-88341i1GGTE..GX81198808-199008

16258GASKET(FOR HEATER RETURN)

main16258-15011i1GGE..GX81198808-199210

*54

main16258-15011i1GFE,1GGTE..GX81198808-199008

main16258-15011i1GGE..GX81198808-198811

*53

main16258-70010i1GGE..GX81198811-199203

*53

sub16258-70020

main16258-70020i1G#..GX81199203-199210

*53

main16258-70020i1GFE..GX81199009-199203

main16258-74020i1GGTE..GX81198907-199210

sub16258-74021

main16258-74020i1GGE..GX81199002-199008

*54

sub16258-74021

16271GASKET, WATER PUMP

main16124-70030i1GGZE..GX81198808-199008

main16124-70041i1G#..GX81199102-199210

main16124-88300i1GFE,1GGE,1GGTE..GX81198808-199102

sub16124-70041

main16271-54020i2L#..LX80198808-199210

sub16271-54030

16371PULLEY, FAN

main16173-42020i7MGE..MX83198908-199210

main16371-46020i1JZGE..JZX81199008-199210

main16371-54030i2L#..LX80198808-199210

main16371-70040i1GGZE..GX81198808-199008

main16371-70060i1GFE..GX81198808-199210

sub16371-70061

main16371-73011i3YP..YX80198808-199210

main16371-88301i1GGE,1GGTE..GX81198808-199210

9017908123

main90179-08123

9161160620

main91611-60620

9161160625

main91611-60625

10 parts on this diagram · 9 diagrams in section
