CAMSHAFT & VALVE

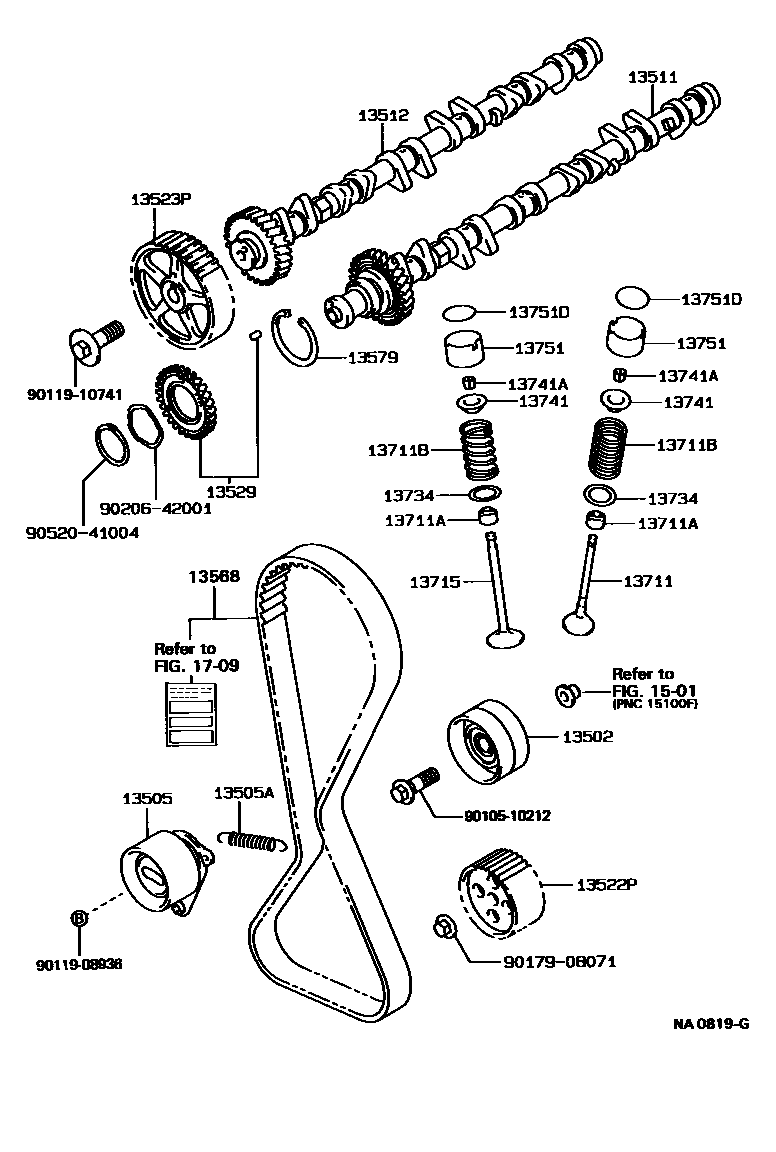

Parts diagram
13502IDLER SUB-ASSY, TIMING BELT, NO.2
main13503-54030i198808-199210
main13503-63010i198808-198810
sub13503-63011
main13503-63011i198810-199210
main13503-70060i198808-198907
sub13503-70061
main13503-70061i198907-199210
sub13503-70080
main13503-88301i198808-199210
13505IDLER SUB-ASSY, TIMING BELT, NO.1
main13505-42020i198908-199210
main13505-46020i199008-199210
main13505-54020i198808-199111
sub13505-54021
main13505-54021i199111
main13505-70012i198808-199210
main13505-70030i198808-199210
main13505-74010i198808-198810
sub13505-74011
main13505-74011i198810-199210
13505ASPRING, TENSION(FOR IDLER)
main90506-12054i198808-199210
sub90506-13003
main90506-13002i198808-199008
*53
main90506-13002i198809-199008
*54
main90506-13002i198907-199210
main90506-16047i198903-198907
sub90506-13002
main90506-16054i198808-198903
sub90506-16047
main90506-16054i198808-198809
*54
sub90506-16047
main90506-18060i198808-199210
main90506-20052i198808-199003
sub90507-20026
main90507-18008i198908-199210
main90507-20026i199003-199107
main90507-20028i199107-199210
sub90507-18030
13511CAMSHAFT
main13501-42030i198908-199210
main13501-46020i199008-199210
main13501-54050i198808-199210
main13501-54060i198808-199210
main13501-70070i198808-199210
main13501-74020i198808-199210
main13501-88305i198808-199210
sub13501-88304
main13501-88345i198808-199008
sub13501-88343
main13501-88400i199008-199210
sub13501-88401
main13511-71901i198808-199210
13512CAMSHAFT, NO.2
main13502-42010i198908-199210
main13502-46010i199008-199210
main13502-70030i198808-199210
main13502-74020i198808-199210
sub13502-74904
main13502-88303i198808-199210
sub13502-88302
main13502-88343i198808-199008
sub13502-88342
main13502-88400i199008-199210
sub13502-88401
13522PPULLEY, PUMP DRIVE SHAFT
main13524-42010i198908-199210
main13524-70040i198808-199210
main13524-88301i198808-199210
main13524-88340i198808-199008
13523GEAR OR SPROCKET, CAMSHAFT TIMING
main13522-33010i198808-199210
13523PPULLEY, CAMSHAFT TIMING
main13523-42010i198908-199210
main13523-46030i199008-199210
main13523-54040i198808-199210
main13523-70040i198808-199210
main13523-74020i198808-199210
main13523-88301i198808-199210
13529GEAR, CAMSHAFT SUB
main13529-70010i198808-199210
main13529-74900i198808-199210
13568BELT, TIMING
main13568-42010i198908-199004
sub13568-42011
main13568-42011i199008-199205
sub13568-49015
main13568-42011i199004-199008
sub13568-49015
main13568-46010i199008-199205
sub13568-49025
main13568-49015i199205-199210
main13568-49025i199205-199210
main13568-54070i198808-199205
sub13568-59065
main13568-59065i199205-199210
sub13568-59066
main13568-70080i198808-199205
sub13568-79085
main13568-74011i198808-199101
sub13568-74012
main13568-74012i199101-199204
sub13568-79025
main13568-79025i199204-199210
sub13568-79095
main13568-79035i199205-199210
main13568-79085i199205-199210
main13568-88300i198808-198907
*54
sub13568-88340
main13568-88301i198809-198907
*54
sub13568-88340
main13568-88301i198808-198907
*53
sub13568-88340
main13568-88340i198907-199205
sub13568-79035
13579WASHER, CAMSHAFT TIMING GEAR BOLT
main13579-70010i198808-199210
main13579-74010i198808-199210
13711VALVE, INTAKE
main13711-42020i198908-199210
main13711-46020i199008-199107
sub13711-46021
main13711-46021i199107-199210
sub13711-46022
main13711-54020i198808-199210
main13711-70031i198907-198910
sub13711-88341
main13711-70040i198808-199210
main13711-71010i198808-199210
main13711-74020i198808-199210
main13711-88340i198808-198907
*54
sub13711-70031
main13711-88341i198808-198907
*53
main13711-88341i198910-199210
main13711-88400i199008-199210
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
main90913-02053i198808-199210
sub90913-02110
main90913-02062i198808-199003
INTAKE SIDE
main90913-02062i198808-199008
*54 INTAKE SIDE
main90913-02062i198908-199210
main90913-02062i199008-199210
*54,INTAKE SIDE
main90913-02066i198808-199008
*54 EXHAUST SIDE
main90913-02066i199008-199210
*54,EXHAUST SIDE
main90913-02066i198905-198907
*53
main90913-02066i198808-199210
EXHAUST SIDE
main90913-02067i198808-198905
*53
sub90913-02066
main90913-02071i198808-199210
main90913-02073i198808-198905
sub90913-02080
main90913-02080i198905-199209
sub90913-02098
main90913-02081i199008-199210
*53,INTAKE SIDE
main90913-02081i198907-199008
*53 INTAKE SIDE
main90913-02085i198907-199008
*53 EXHAUST SIDE
sub90913-02122
main90913-02085i199008-199210
*53,EXHAUST SIDE
sub90913-02122
main90913-02089i199008-199210
EXHAUST SIDE
main90913-02090i199003-199210
INTAKE SIDE
main90913-02098i199209-199210
sub90913-02094
13711BSPRING, COMPRESSION(FOR INNER)
main90501-31003i198808-199210
main90501-31007i198808-199210
sub90501-29041
main90501-32022i198808-199210
main90501-33011i198908-199210
main90501-35006i199008-199210
main90501-47005i198808-199210
sub90501-46001
main90504-40002i199008-199210
main90504-49001i198808-199210
13715VALVE, EXHAUST
main13715-17010i199003-199210
main13715-42010i198908-199210
main13715-46020i199008-199210
main13715-54040i198808-199210
main13715-70040i198808-199210
main13715-72020i198808-199210
main13715-74020i198808-199210
main13715-88300i198808-199005
sub13715-88301
main13715-88301i199005-199210
main13715-88400i199008-199210
13734SEAT, VALVE SPRING
main13734-16010i198908-199210
main13734-88300i198808-199210
*54
main13734-88361i199008-199210
sub13734-88460
main90201-16023i198808-199210
*53
main90201-18017i199008-199210
13741RETAINER, VALVE SPRING
main13741-16010i198808-199210
main13741-46020i199008-199210
main13741-54020i198808-199210
main13741-63010i198808-199210
main13741-88300i198808-199210
main13741-88361i199008-199210
13741ALOCK, VALVE SPRING RETAINER
main90913-03014i198808-199210
main90913-03021i198808-199210
main90913-03025i199008-199210
13751LIFTER, VALVE
main13750-71010i198808-199210
sub13750-71020
main13751-16010i198808-199210
main13751-54010i198808-199210
main13751-74020i199008-199210
main13751-88360i199008-199210
13751DPAD, VALVE ADJUSTING
main13753-16020i198808-199210
main13753-16040i198808-199210
main13753-16060i198808-199210
sub13753-16351
main13753-16080i198808-199210
sub13753-16371
main13753-16100i198808-199210
sub13753-16401
main13753-16120i198808-199210
sub13753-16421
main13753-16140i198808-199210
sub13753-16451
main13753-16160i198808-199210
sub13753-16471
main13753-16180i198808-199210
sub13753-16501
main13753-16200i198808-199210
sub13753-16521
main13753-16220i198808-199210
sub13753-16551
main13753-16240i198808-199210
sub13753-16571
main13753-16260i198808-199210
sub13753-16601
main13753-16280i198808-199210
sub13753-16621
main13753-16300i198808-199210
sub13753-16651
main13753-16320i198808-199210
main13753-16340i198808-199210
main13753-16660i198808-199210
main13753-16670i198808-199210
main13753-16680i198808-199210
main13753-16690i198808-199210
main13753-16700i198808-199210
main13753-16710i198808-199210
main13753-16720i198808-199210
main13753-16730i198808-199210
main13753-16740i198808-199210
main13753-16750i198808-199210
1501
1709
9010510212
main90105-10212
9011908936
main90119-08936
9011910741
main90119-10741
9017908071
main90179-08071
9020642001
main90206-42001
9052041004
main90520-41004

28 parts on this diagram · 9 diagrams in section
