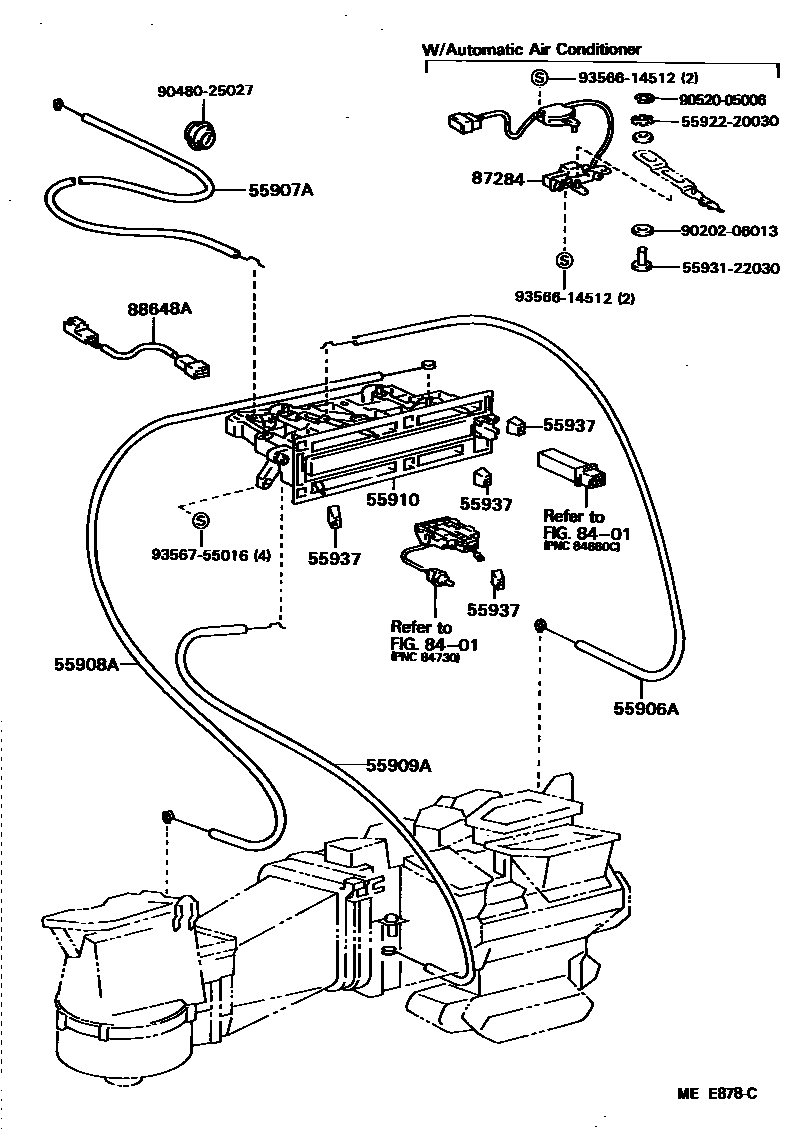

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-22120iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

main55906-22120iSX70..4FC198701-198808

*30

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-22150iGX71,LX70,SX70..SCM,SDX198608-198808

main55907-22180iLX70,SX70..KYO198408-198808

main55907-22180iSX70..4FC198701-198808

*30

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-22070iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

main55908-22070iSX70..4FC198701-198808

*30

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-22060iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

main55909-22060iSX70..4FC198701-198808

*30

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-22280iGX71,MX71..GT,SLU198408-198608

main55910-22290iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

main55910-22290iSX70..4FC198701-198808

*30

main55910-22370iGX71,LX70,SX70..SCM,SDX198608-198808

main55910-22390iGX71..GT,SLU198610-198808

55937KNOB, HEATER CONTROL LEVER

main55905-22150iGX71,MX71..GT,SLU198408-198608

main55905-22151iGX71..GT,SLU198608-198808

main55905-30081iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

main55905-30081iSX70..4FC198701-198808

*30

8401

87284RESISTOR SUB-ASSY, VARIABLE

main88032-22040iGX71,MX71..GT,SLU198408-198608

main88032-22050iGX71,LX70,SX70..SCM,SDX198408-198608

main88032-22051iGX71,LX70,SX70..SCM,SDX198608-198808

88648AWIRING, COOLER

main88648-22140iLX70,SX70..KYO198608-198808

main88648-22140iSX70..4FC198701-198808

*30

5592220030BRACKET, HEATER CONTROL BASE

main55922-20030

5593122030CLAMP, HEATER CONTROL WIRE

main55931-22030

9020206013

main90202-06013

9048025027

main90480-25027

9052005006

main90520-05006

9356614512

main93566-14512

9356755016

main93567-55016

16 parts on this diagram · 6 diagrams in section
