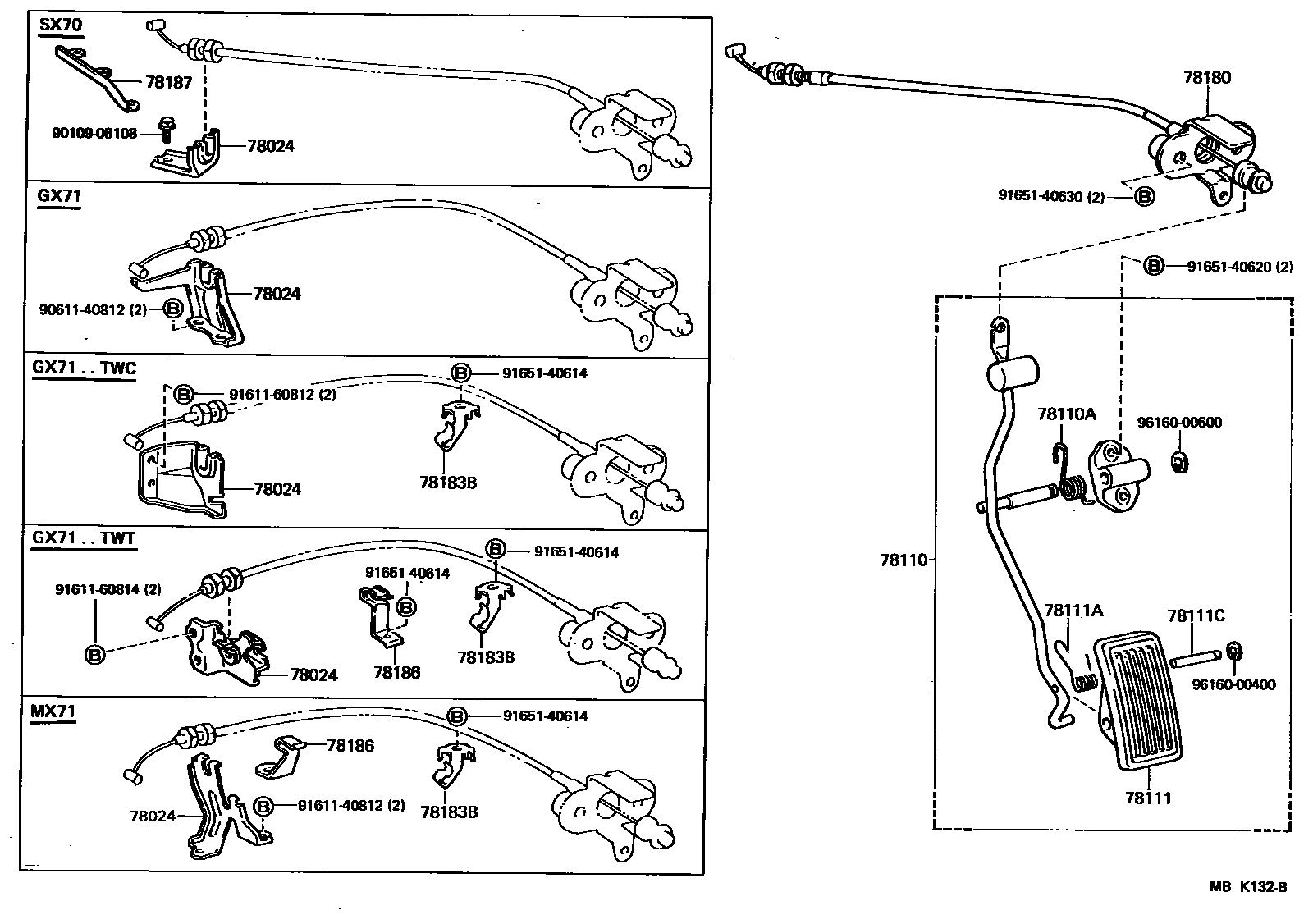

ACCELERATOR LINK

0001 1 0002 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-22020iSX70198408-198808

main78024-22040iGX71..TWC198408-198608

main78024-22070iGX71..TWT198510-198808

sub78024-22071

main78024-30020iGX71..EFI198408-198808

main78024-30041iLX70..TD198408-198808

main78024-88300iGX71..TWC198608-198808

main78184-30070iMX71198408-198510

78110ROD ASSY, ACCELERATOR PEDAL

main78120-22220iMX71;GX71,LX70,SX70..5F198408-198808

sub78120-22221

main78120-22230iGX71,SX70..4FC..(CBR,EFI,TWC)198408-198808

sub78120-22231

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18060iGX71..TWT198408-198808

main90508-26054iMX71;GX71,LX70,SX70..5F198408-198808

78111PEDAL, ACCELERATOR

main78111-12100iGX71,LX70,MX71,SX70198408-198808

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23088iGX71,LX70,MX71,SX70198408-198808

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iGX71,LX70,MX71,SX70198408-198808

78180WIRE ASSY, ACCELERATOR

main78180-22510iLX70..DSL198408-198808

main78180-22530iGX71..EFI198408-198808

main78180-22540iGX71..TWC198408-198608

main78180-22541iGX71..TWC198608-198808

main78180-22550iMX71198408-198510

main78180-22560iSX70198408-198808

main78180-22570iLX70..TD198408-198808

main78180-22840iGX71..TWT198510-198808

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-22040iGX71,LX70,MX71..TBO,TD,TWC,TWT198408-198808

main78183-22050iLX70..DSL198408-198608

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-22030iGX71..TWT198510-198808

main78186-30040iMX71198408-198510

78187BRACKET, ACCELERATOR PULL BACK SPRING

main78187-14020iSX70198408-198808

9010908108

main90109-08108

9061140812

main90611-40812

9161140812

main91611-40812

9161160812

main91611-60812

9161160814

main91611-60814

9165140614

main91651-40614

9165140620

main91651-40620

9165140630

main91651-40630

9616000400

main96160-00400

9616000600

main96160-00600

20 parts on this diagram · 2 diagrams in section
