BATTERY CARRIER

74411CARRIER, BATTERY

main74411-22100iLX70198608-198808

COLD SPEC

main74431-14040iLX70..KYO198608-198808

COLD SPEC

main74431-22020iSX70..4FC198608-198808

main74431-22040iSX70..4FC198608-198808

COLD SPEC

74413BOLT, BATTERY CLAMP

main74451-14010iGX71,LX70,MX71,SX70198408-198808

main74451-22020iLX70198408-198808

COLD SPEC

74453SUPPORT, BATTERY CARRIER

main74414-22010iLX70198408-198808

COLD SPEC

74474PAD, BATTERY

main74471-30080×2iGX71,LX70,MX71,SX70198408-198411

main74473-22010iGX71,LX70,MX71,SX70198411-198808

RR

main74474-22010iGX71,LX70,MX71,SX70198411-198808

FR

74481CLAMP, BATTERY HOLD DOWN

main74404-22170iSX70..4FC198408-198608

NS40ZAL

main74404-22180iGX71,MX71,SX70198408-198608

55D23L,50D20L,NX110-5L

main74404-22200iMX71;SX70..5F..SCM198408-198608

NS60L

main74404-22210iLX70198408-198608

125D38L

9017906097

main90179-06097

9165140614

main91651-40614

9165540618

main91655-40618

9166540618

main91665-40618

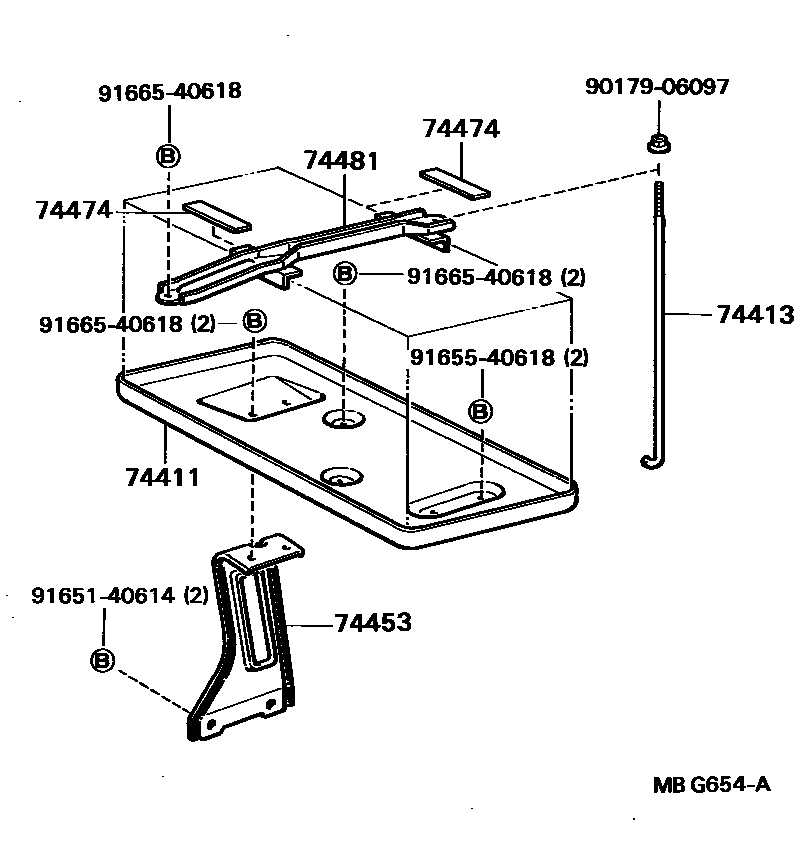

9 parts on this diagram · 1 diagram in section
